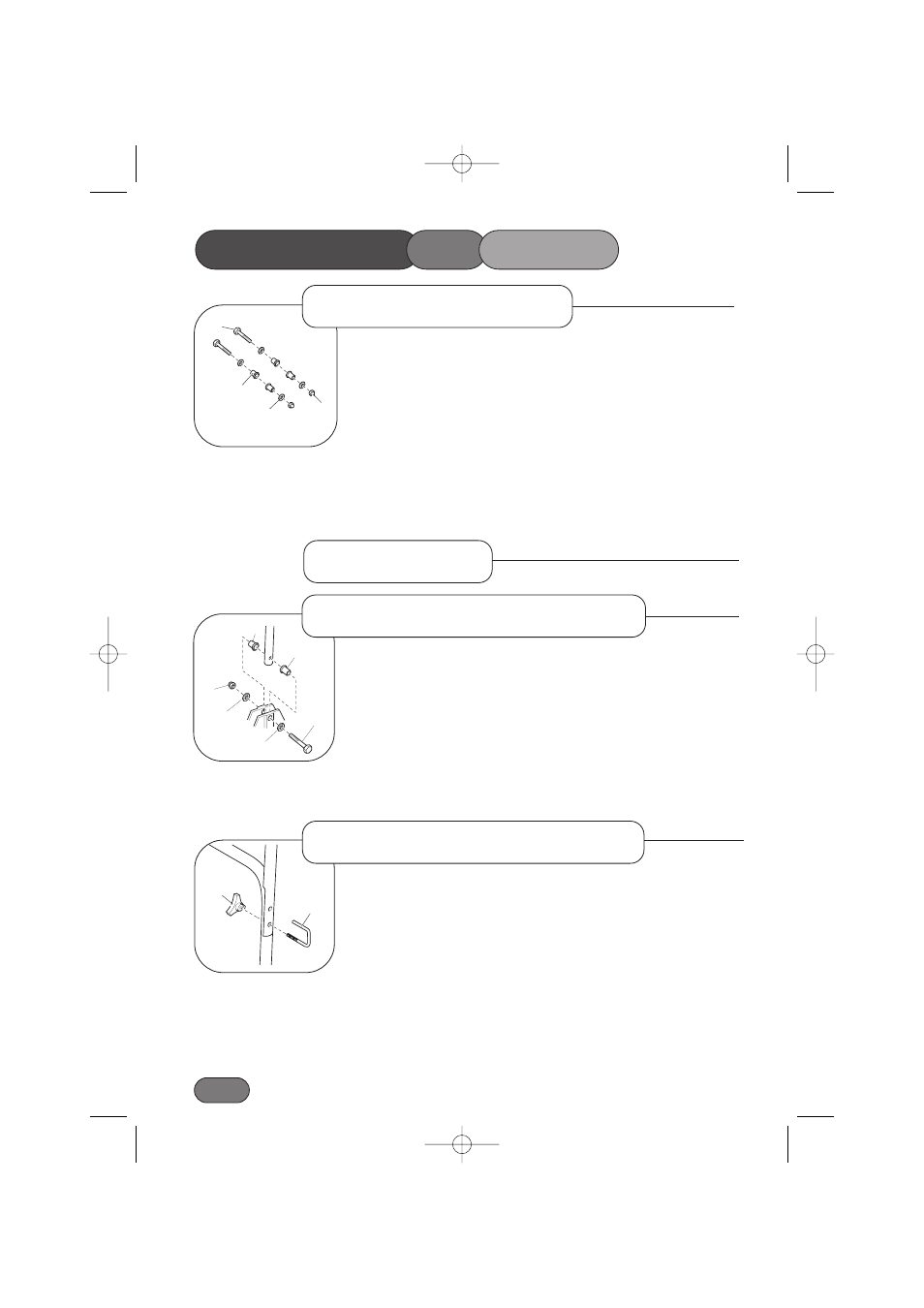

Remove the machine from the packaging and check that the following
items have been supplied correctly. If any items are missing contact,
your local dealer. Main deck, lower and upper handlebars.
1. Handlebar bolt x 2 5. Spanner x 1* 9. Handwheel x 2*
2. Bush x 4 6. Ties x 2*
3. Nut x 2 7. Ties*
4. Washer x 4 8. U Bolt x 2*
*Items 5 - 9 Not Illustrated
Fit the lower handle first, and position the white bushes (2) as shown
on both sides. Place the lower handle between bushes with the kick
stop assembley on the right hand side. Attach the lower handle using
the fixings supplied.
Assemble the upper handle align holes and fit U-bolts and hand/wheel.
HAY-G00117-A
8
9
DTP-000-003-A
1
2
2
3
4
4
1.12
ASSEMBLING THE MOWER
1
2
3
4
HAY-G00116-A
Delivery Checklist
Assembling
Step 1 Lower Handlebar
Step 2 Upper Handlebar
