Billy Goat PR550 - Manual (Page 17)

Part No 350324 Form No F090407A 17
PR & OS Owner’s Manual
SLICING REEL ASSY 350113
SPRING TINE REEL ASSY - 350355-S
SPRING REPLACEMENT KIT - 350356-S

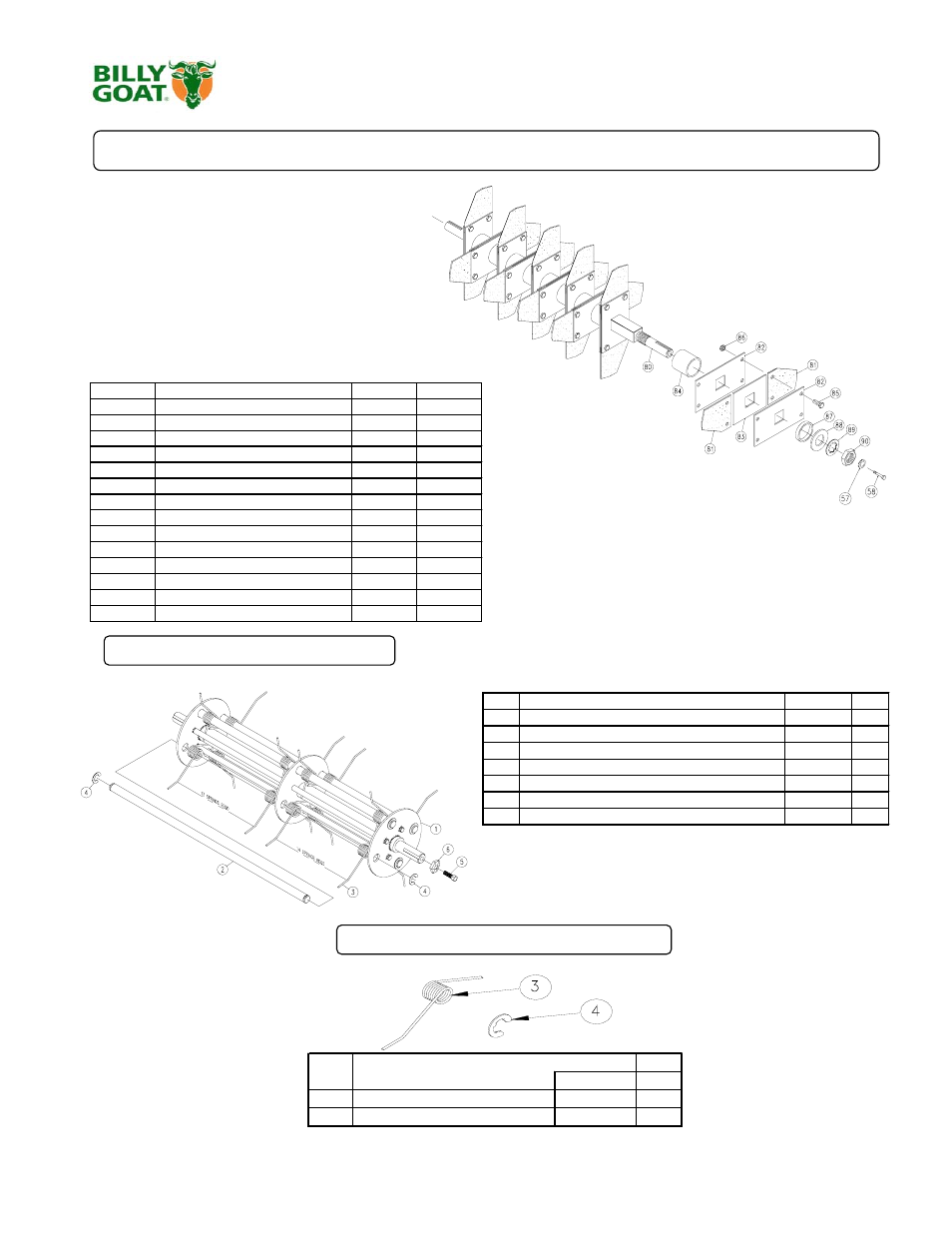

PARTS DRAWING
item PARTS Part No. QTY
no. LIST
1 SHAFT WA SPRING TINE REEL 350353 1
2 SHAFT SPRING TINE REEL 350351 4
3 SPRING TINE 350352 108
4 RING RETAINING 1/2" 350146 8
5 SCREWCAP 5/16"-24x1" GR. 5 ZP 400164 1
6 WASHER LOCK TWISTED TOOTH HEAVY 430298 1
item PARTS QTY
no. LIST Part No.
3 SPRING TINE 350352 108
4 RING RETAINING 1/2" 350146 8
item PARTS PR500 QTY
no. LIST Part No.
57 LOCK WASHER 5/16 TWISTED TOOTH 800177 1
71 SCREWCAP 5/16 - 24 x 1" HCS GR. 5 400164 1
80 SHAFT SLICING WA 350142 1
81 BLADE SLICING REEL 350147 20
82 PLATE BLADE MTG. 350148 20
83 SPACER BLADE MTG. 350149 10
84 SPACER BLADE ASSY 350150 9
85 SCREWCAP 1/4-20 x 3/4, HCS ZP 8041004 40
86 NUT LOCK 1/4-20 8142004 40
87 COLLAR SPACER 350152 1
88 WASHER 0.937 x 1.750 x 0.119 350153 1
89 WASHER LOCK 7/8 INT. TOOTH 350154 1
90 NUT JAM 7/8-14 350155 1
