Huffy UXT4030AA User Manual

Page 22

background image

22

P/N 21463607 03/04

4.

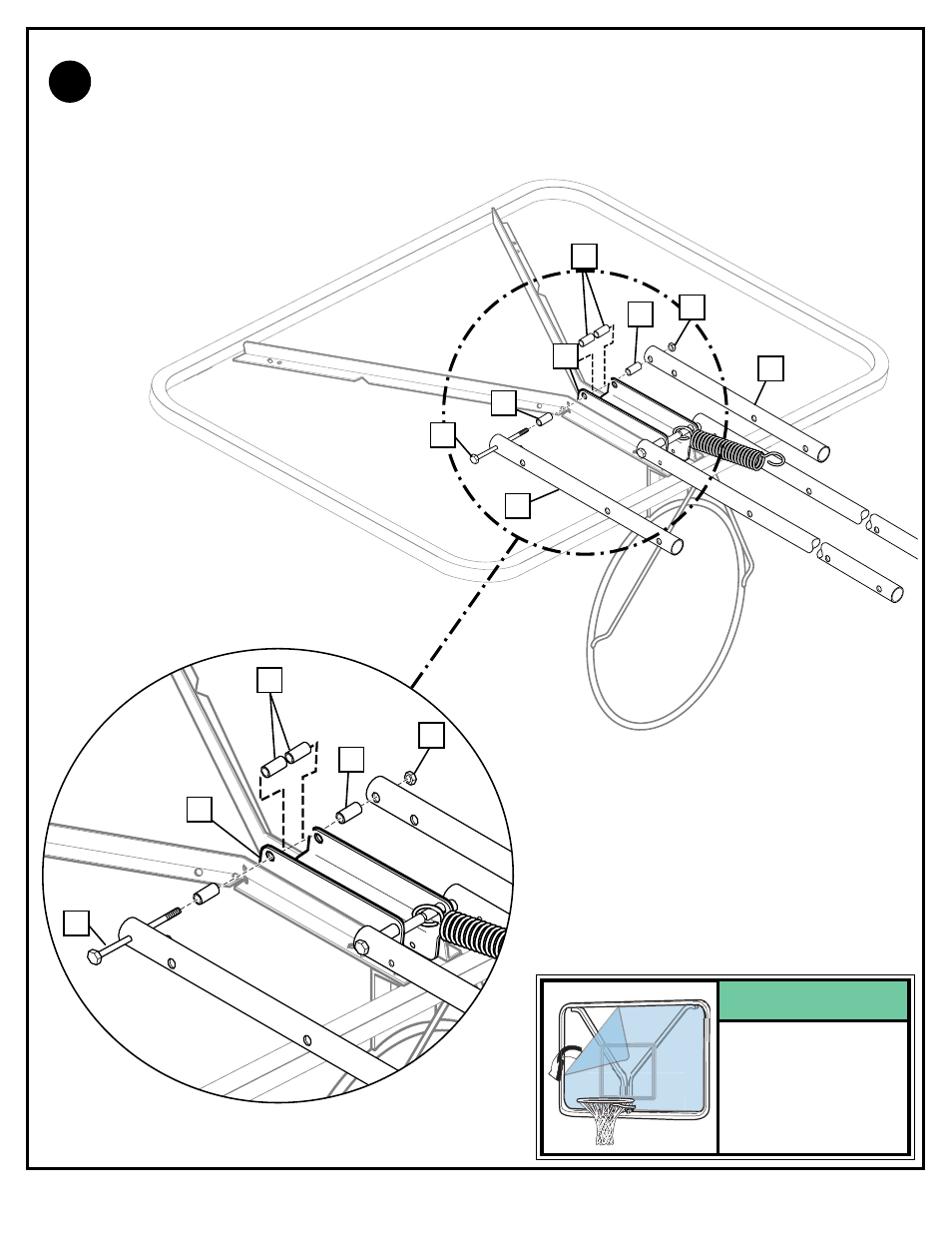

Attach upper elevator tubes (35) to backboard support brackets (27) using
spacers (26 & 11)), bolt (29), and nut (31) as shown.

35

35

26

27

26

31

11

29

29

27

26

31

11

Peel protective

film from surface

of acrylic

backboard prior

to use.
