4.18
4.16

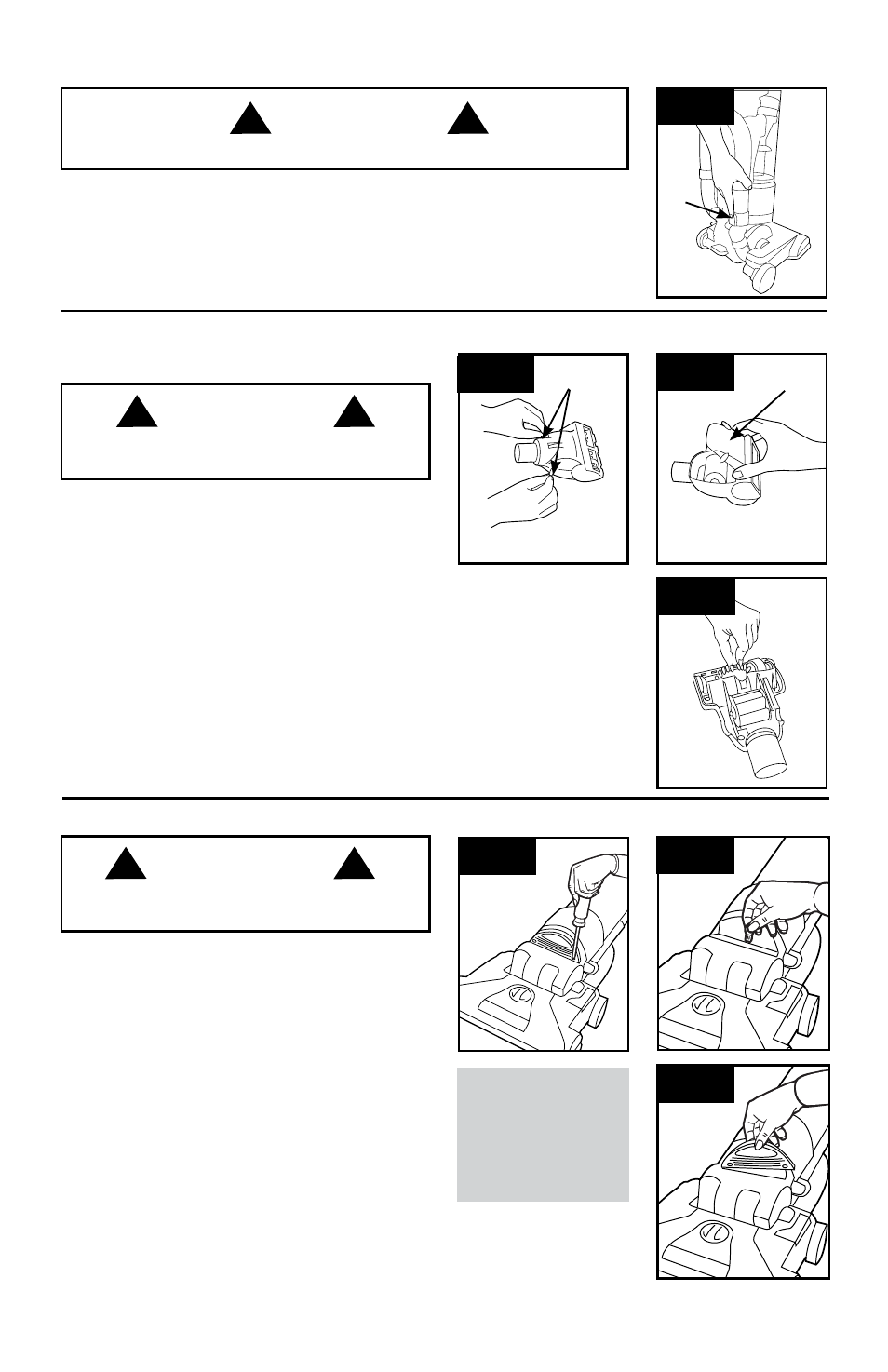

4.16 Turn tool so bottom faces up. Rotate the
latches (A) on either side of tool.
4.17 Remove bottom plate (B).
4.18 Remove any debris and/ or hair from brushroll.
Replace bottom plate by aligning tabs along front
edge of tool. Rotate latches back into locked position.
A
powered hand tool:
how to clean
(Tool varies per model) 4.17
b
4.19 4.20
4.21
removing lens
Press Handle Release Pedal and place Handle in
low position.
4.19 Using a Phillips screwdriver, remove (2) screws
as shown and lift off lens.
installing bulb
4.20 Pull old bulb straight out of socket. Push new
bulb straight into socket until locked in place.
Excessive force is not required.
Twisting or turning bulb not required.
replacing lens
4.21 Reposition lens and secure with screws.
headlight:
what to buy
This vacuum uses a
common automotive
lamp #906, 13 volt.
hose
: how to clean
4.15
A
CAUTION
! !
To reduce the risk of injury from moving parts, unplug vacuum before servicing.
4.15 To remove Hose for tool use, press the Hose Release Button (A) and pull
Hose end out.
Clear away debris or obstructions from Hose. Do not use sharp objects to clean
out hose as they can cause damage. To lock back into place, push Hose into
Hose Tube until you hear a click.
CAUTION
! !
To reduce the risk of injury from moving parts,
unplug vacuum before servicing.
headliGht:
how to replace
WARNING
! !
To reduce the risk of electrical shock, unplug
vacuum before cleaning or servicing.
