SKU 95967

For technical questions, please call 1-800-444-3353.

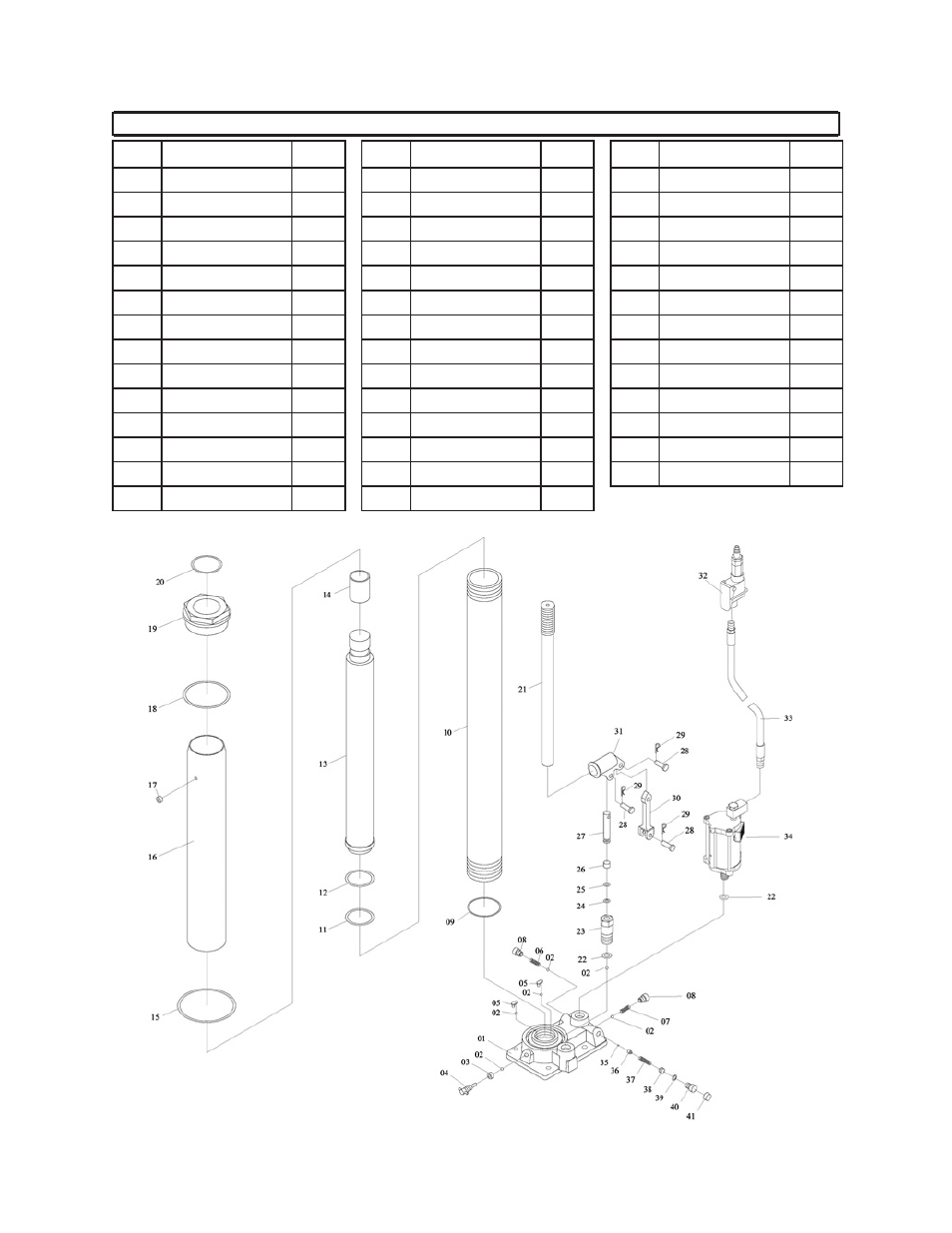

GENERAL ASSEMBLY

Part Description Qty

1

Base

1

2

Ball

6

3

Seal

1

4

Release Valve

1

5

Ball Cup

2

6

Spring

1

7

Spring

1

8

Screw

2

9

Nylon Ring

1

10

Cylinder

1

11

O-Ring

1

12

Cup Seal

1

13

Ram

1

14

Ring

1

Part Description Qty

15

Packing

1

16

Reservoir

1

17

Filler Plug

1

18

Nylon Ring

1

19

Top Nut

1

20

O-Ring

1

21

Handle

1

22

Copper Washer 1

23

Pump Cylinder

1

24

O-Ring

1

25

Nylon Ring

1

26

Back-Up Ring

1

27

Piston

1

28

Pin

3

Part Description Qty

29

R-Pin

3

30

Connector

1

31

Handle Bracket

1

32

Air Valve

1

33

Air Hose

1

34

Air Motor

1

35

Ball

1

36

Ball Cup

1

37

Spring

1

38

Screw

1

39

O-Ring

1

40

Screw

1

41

Plastic Cap

1
