Page 11
ASSEMBLED
EDGER GUIDE
TABS

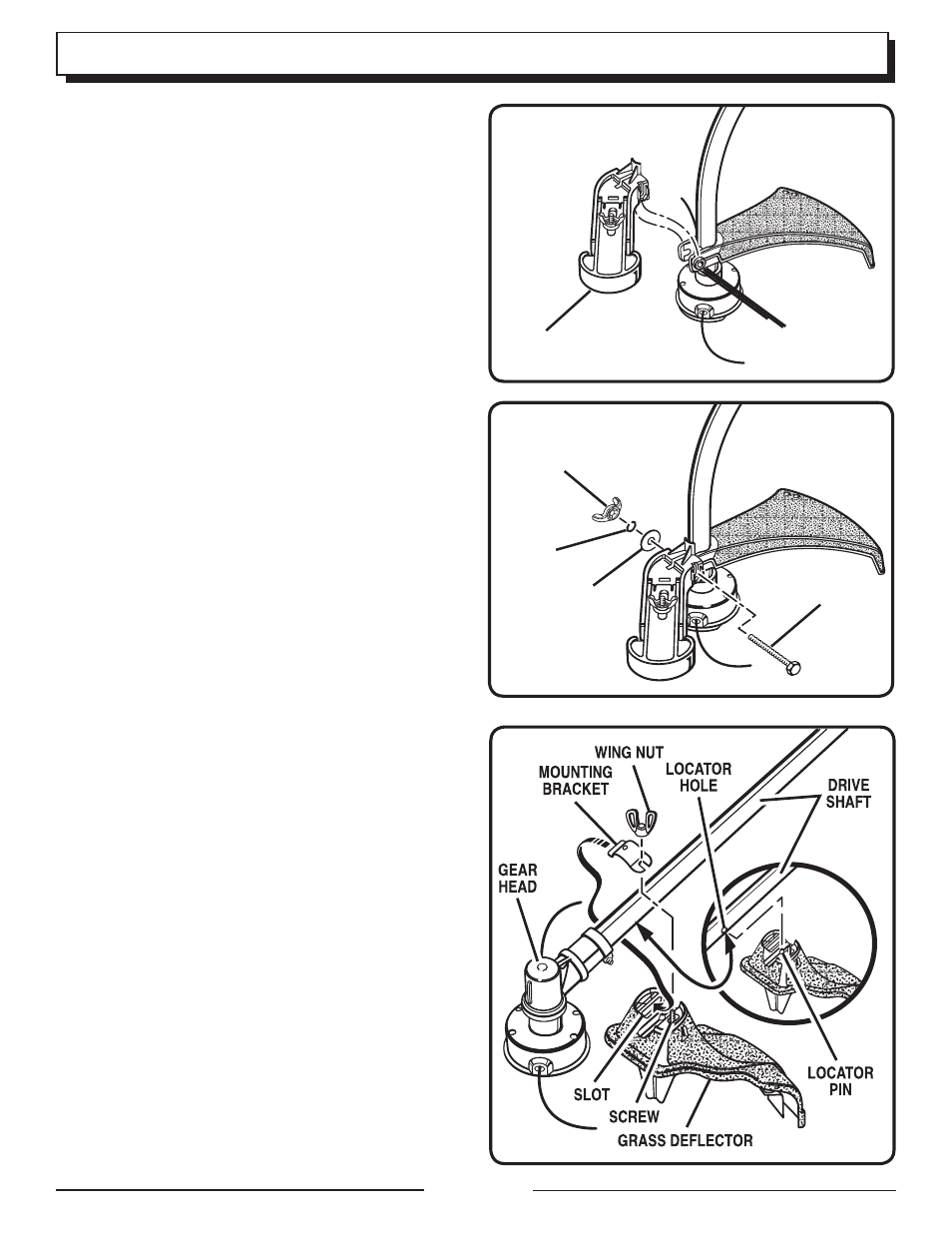

CURVED SHAFT GRASS DEFLECTOR WITH
EDGER GUIDE - TRIM ‘N EDGE ONLY
See Figures 5 - 6.
n
Remove the wing nut, flat washer, lock washer, and bolt
from the Owner’s Kit.
n Place the curved shaft grass deflector over the shaft and
bracket.
n Slide the assembled edger guide over the tabs on the grass
deflector and bracket.
n Place the bolt through the slots in the tabs on the grass
deflector and trimmer.
NOTE: Ensure the slots are aligned before installing the
bolt.
n Install the flat washer, lock washer and wing nut.
n Tighten the wing nut securely.
STRAIGHT SHAFT GRASS DEFLECTOR -
EASY REACH
See Figure 7.
n
Remove the wing nut and clamp from the grass de-
flector.
n Assemble straight shaft grass deflector to drive shaft so
that the peg in the grass deflector fits in the locator hole
in the lower side of the drive shaft near the gear head.
n Place the mounting bracket over the drive shaft so the
square tab on the mounting bracket fits into the slot in the
straight shaft grass deflector.
n Rotate the mounting bracket so the screw on the grass
deflector goes into the slot on the mounting bracket.
FLAT
WASHER
LOCK
WASHER
WING NUT
LONG BOLT
Fig. 6
Fig. 7
Fig. 5
ASSEMBLY
