If your unit has been preassembled, check each step to make
sure the unit has been properly assembled.

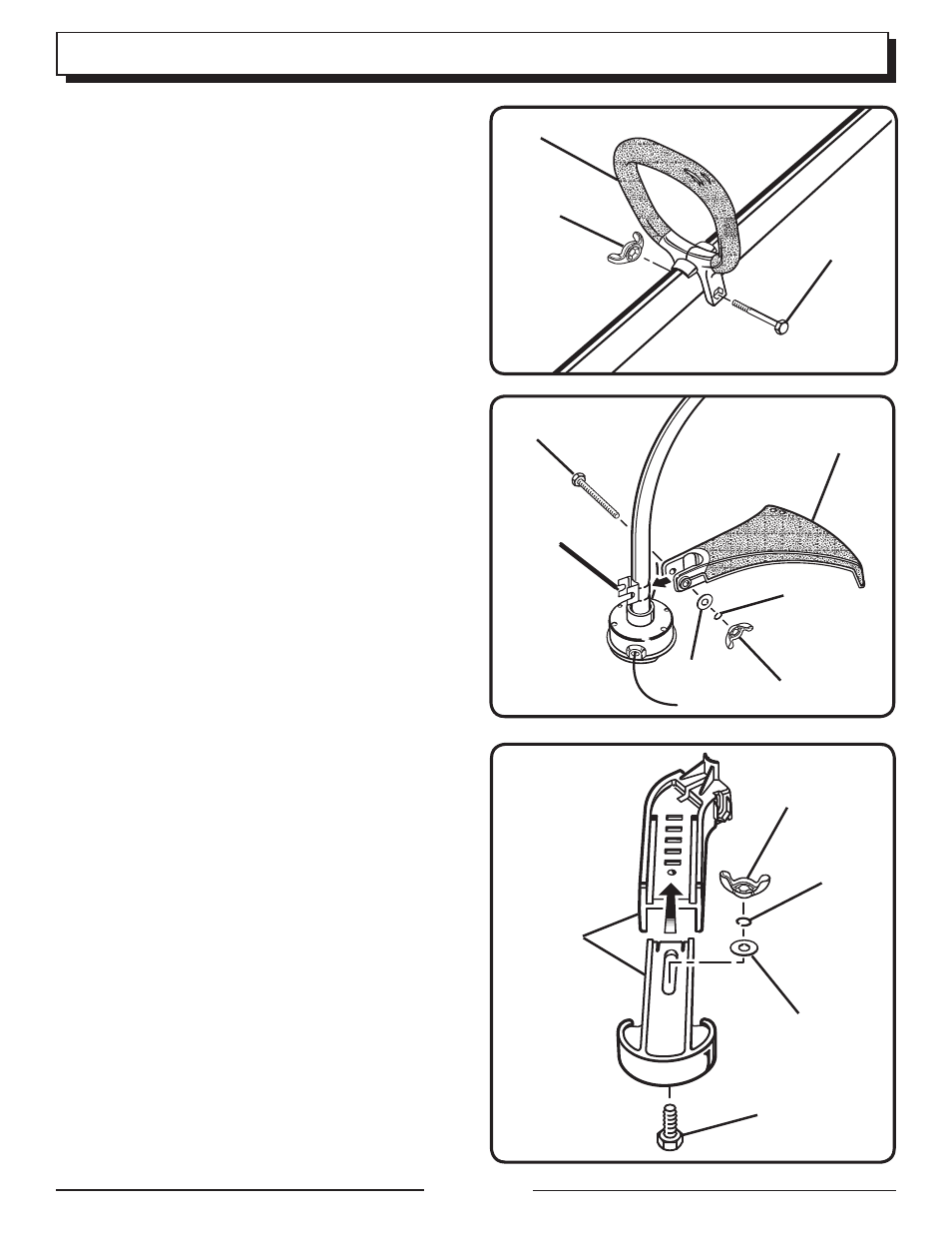

FRONT HANDLE
See Figure 2.
n
Remove the front handle, bolt, and wing nut from the
Owner’s Kit.
n Install the front handle onto the top side of the drive shaft
housing and move it to a comfortable position.
n Place the bolt through the front handle as shown, then
install the wing nut.
n Tighten wing nut securely.
CURVED SHAFT GRASS DEFLECTOR
WITHOUT EDGER GUIDE - TRIMLITE AND
TRIM ‘N EDGE
See Figure 3.
n
Remove wing nut, flat washer, lock washer, and bolt from
the Owner’s Kit.
n Place curved shaft grass deflector over shaft and brack-
et.
n Install bolt through the slots in the tabs on grass deflector
and bracket on shaft housing.
n Install flat washer, lock washer and wing nut.
n Tighten Securely.
CURVED SHAFT GRASS DEFLECTOR WITH
EDGER GUIDE - TRIM ‘N EDGE ONLY
EDGER GUIDE ASSEMBLY
See Figure 4.
n
Assemble the two plastic pieces of the edger guide together
using the short bolt, flat washer, lock washer and wing
nut.
n Slide the edger guide to adjust it to the desired trimming
length.
n Tighten the wing nut securely.
GRASS
DEFLECTOR
BRACKET
BOLT
WING NUT
Fig. 3
WING NUT
FRONT HANDLE
BOLT
Fig. 2
FLAT
WASHER
LOCK WASHER
ASSEMBLY
EDGER GUIDE
PIECES
SHORT BOLT
FLAT WASHER
LOCK
WASHER
WING NUT
Fig. 4
