Maintenance locator chart – Hustler Turf Z4 User Manual
Page 32
602223_0609
9-9
13
13
14
16
17
17
17
15
1
3
4
5
6
6
7
11
10
9
12
9
11
12
2
8
Hustler Z4 48/54/60

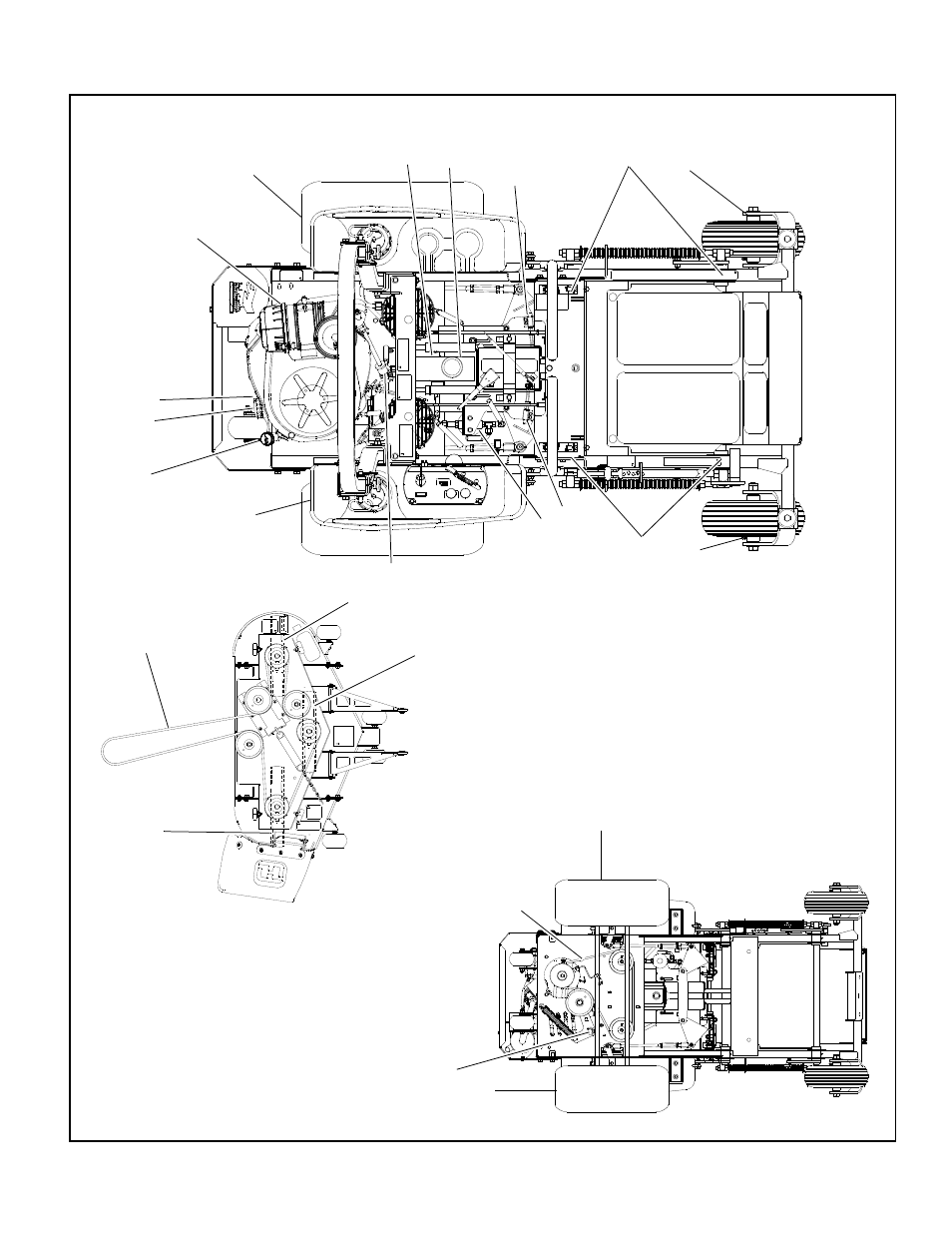

Maintenance Locator Chart
Figure 9-14
Maintenance Locator Chart
1. Engine Oil Fill & Dipstick
2. Fuel Filter
3. Engine Air Cleaner
4. Engine Oil Drain Plug
5. Battery
6. Fuel Tanks
7. Hydraulic Oil Expansion Tank
8. Hydraulic Oil Filter
9. Gauge Wheel Bearing Zerks (2)
10. Engine Oil Filter
11. Deck Height Pivot Zerks (4)
12. Park Brake Switch
13. Drive Tire
14. Pump Idler Zerk (1)
15. Deck Belt
16. Pump Belt
17. Blades
