Dishwasher specifications/installation
Listed by
Underwriters
Laboratories
R
Warranty information:
Full one-year warranty† Guarantees parts and labor to repair
any part of dishwasher that fails because of a manufacturing
defect within one year from date of purchase.
Full ten-year warranty† Guarantees that the polypropylene
tub and door liner won’t leak from cracking, peeling or rusting
for ten years after date of purchase, or GE will replace or
repair the liner without charge for parts and labor.
†See written warranty for details.
Specifications and electrical rating
120 Volts AC, 60 Hertz, 8.6 Amps total connected load 500 Watt Calrod
® heater. For use on adequately
wired 120 volt, 15 amp circuit having two-wire service with a separate ground wire. This appliance must be
grounded for safe operation.
Dishwasher must not be installed more than 10 feet from sink for proper drainage. All plumbing and
electrical work must be in accordance with local codes. Dishwasher includes drain hose and leveling legs.
Note: Before installing, consult installation instructions packed with product for current dimensional data.
Before purchasing any appliance on which the Federal Trade Commission requires an energy
label, read important energy cost and efficiency information available from your retailer.
Hotpoint has a policy of continuous improvement on its products and reserves the right to
change materials and specifications without notice.
24 25-1/8*
21-1/2*
3-1/4
4 (Adjustable)
34" MIN.
adj. to 35"
*Add 1/4" for
* rear insulation
23-3/8*
24-3/4
This wall area
must be free of
pipes or wires
Countertop
4
6
Hot
water
line on
left
4 4
2
Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
90°
19" MIN. from wall
24"
MIN.
6
34-1/2±1/4"
Underside
of countertop
to floor
5 5
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet
White (neutral)
Black (line)
Ground

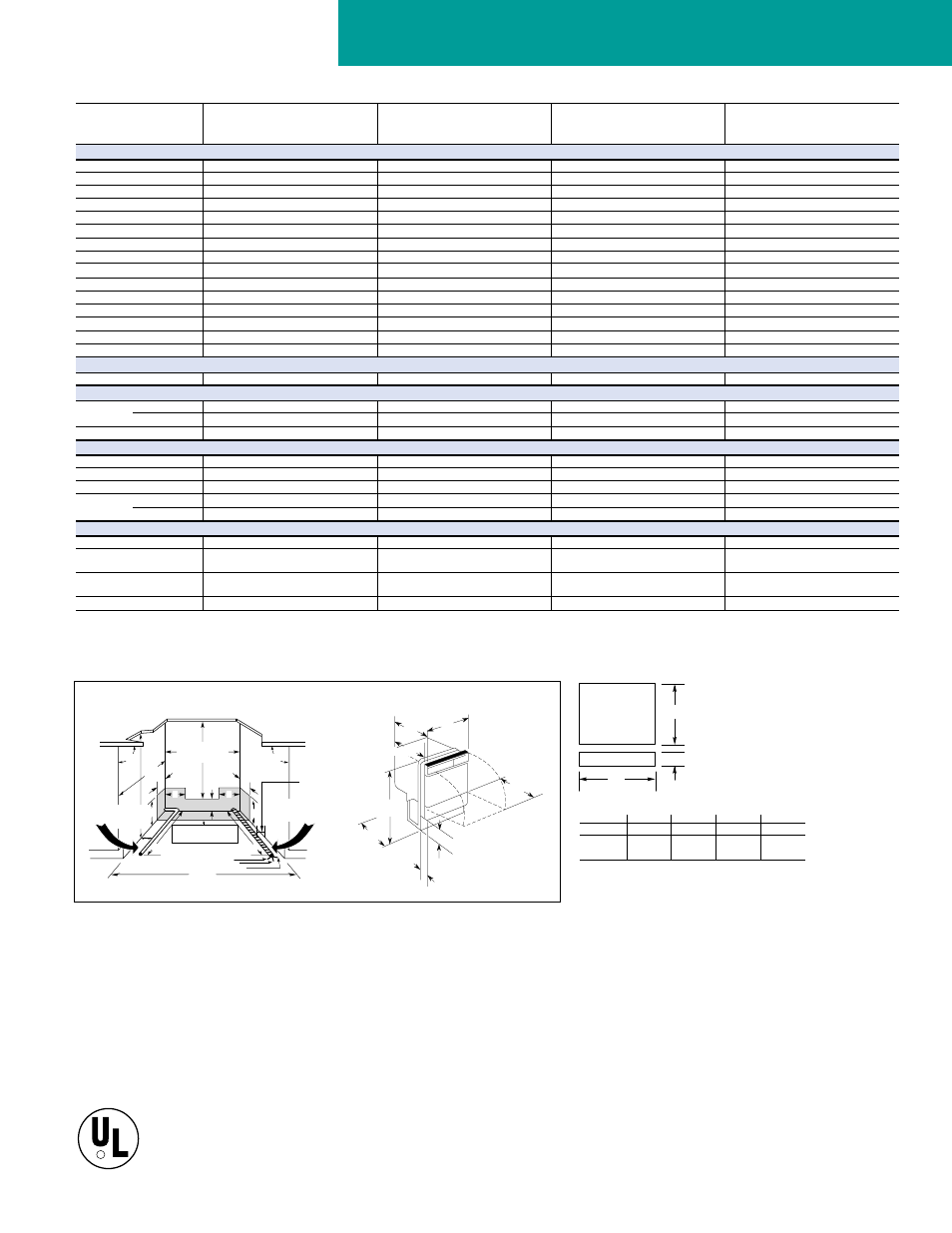

Dishwasher rough-in information (in inches) Dishwasher dimensions (in inches)
Built-in dishwashers
Features HDA3530ZWW/HDA3520ZBB HDA3230ZWW/HDA3220ZBB HDA2220ZBB HDA1000ZWH
Performance
Cycles/Options 6/19 5/14 5/8 1/2
New Power Wash II System ■ ■
Pots & Pans cycle ■ ■ ■
Normal Wash cycle ■ ■ ■ Dial
Water Saver cycle ■ Dial Dial
Light Wash cycle ■
Plate Warmer cycle Dial Dial Dial
Rinse & Hold cycle Dial Dial Dial
Delay Start option 6 Hr. (Dial)
Hi-Temp Wash option ■ ■
Heated Dry On/Off option ■ Rocker Rocker Rocker
Energy Saver On/Off option ■
Wash levels 3 3 2 2
Pushbuttons 7 4 2
Rinse Aid dispenser ■ ■ ■ ■
Quiet
Sound insulation package Standard Standard Standard
Capacity
Upper Super Deluxe Standard Standard
Rack System
Lower Deluxe Deluxe Deluxe Deluxe
Silverware Basket Deluxe Deluxe Deluxe Deluxe
Dependability
Control type Turn-to-Start Turn-to-Start Turn-to-Start Turn-to-Start
1-yr./10-yr. warranty* ■ ■ ■
1-yr. warranty* ■
Door Trimless Trimless Trimless Trimless
Color panels
Access Trimless Trimless Trimless Textured
General Features
Colors available** WW, BB WW, BB BB WH
Kits for 1/4" panel capability
with trim***
GPF325W/B GPF325W/B GPF325B GPF325W
Kit for 3/4" trimless
panel capability***
GPF375 GPF375 GPF375 GPF375
Approx. shipping wt. (lbs.) 81 81 81 81
** *See written warranty for details.
* **Colors Available: WW = White on white, BB = Black on black, WH= White Body/Black Control Panel.
***Certificate enclosed in Use and Care Book for ordering information.
Panel
Models/Kit A B C Thickness
GPF325Kit 18-7/8" 23-9/16" 3-11/16" 1/4"
4-1/4" to
GPF375 18-15/16" 23-5/8"** 3-3/4"*** 3/4"*
*Note: Bottom of panel must be notched 1-1/2" x 1/2" to
clear access panel.
**Adjustment required to match adjacent cabinet fronts
due to leveling leg adjustment, 4" nominal.
B
Access insert
Door insert
A
C
