23

ENGLISH

Connections to other equipment

(continued)

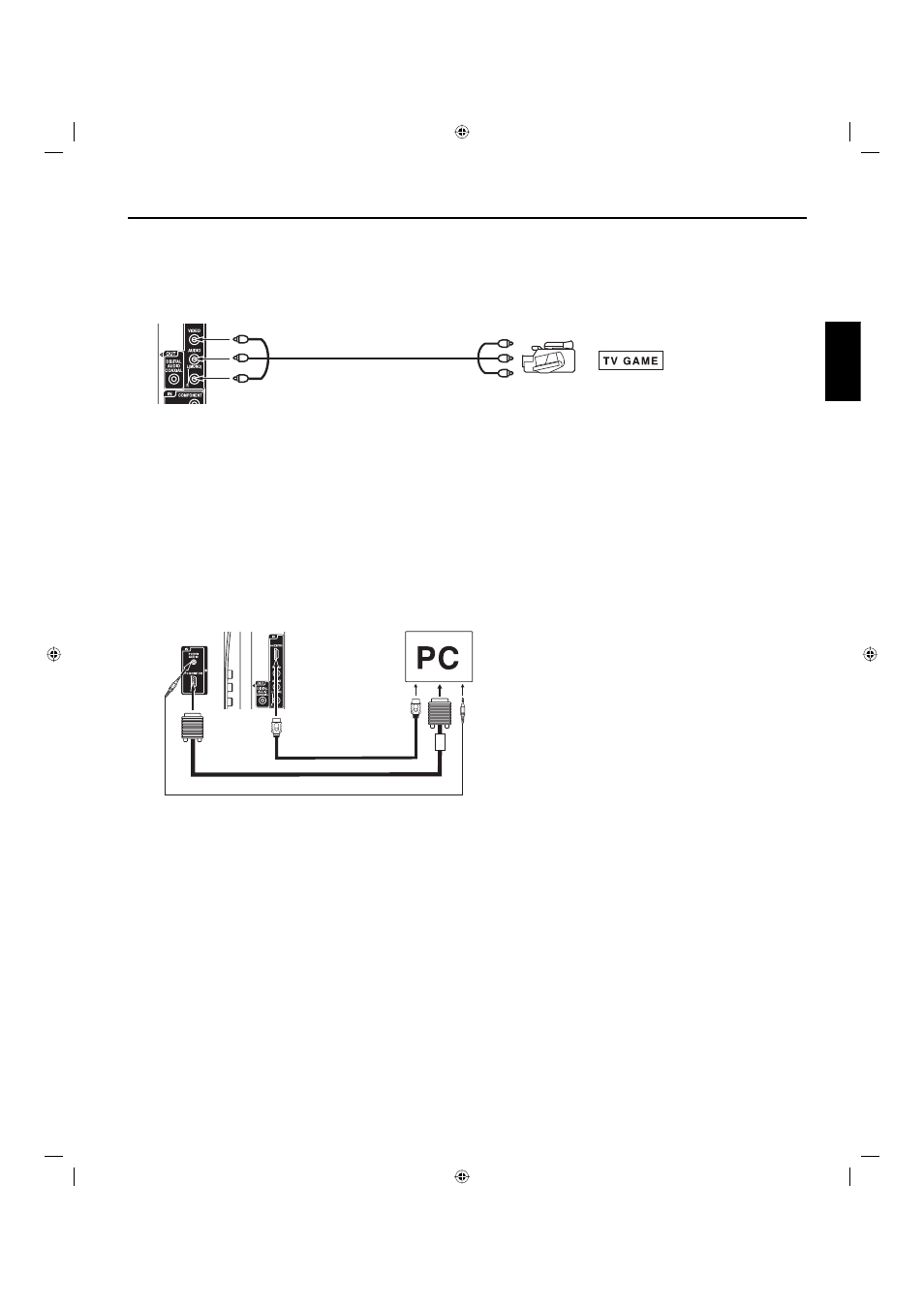

To connect the TV to a camcorder, or a TV Game

To play back from a camcorder, connect the camcorder to the unit as shown.

This unit can also be used as a display device for many video games. However, due to the wide variety of signals generated by these

devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams. You’ll need

to consult each component’s Owner’s Manual for additional information.

Rear of the unit

To connect the TV to a PC (Personal Computer)

Before you connect this TV to your PC, change the adjustment of your PC’s Resolution and Refresh rate (60 Hz).

Connect one end of a (male to male) VGA cable to the video card of the computer and the other end to the VGA connector PC MONITOR

IN on the rear of the TV. Attach the connectors firmly with the screws on the plug. In case of a Multimedia computer, connect the audio

cable to the audio output of your Multimedia computer and to the AUDIO connector of the PC/DVI AUDIO IN jack of the TV. You can also

connect the PC with HDMI cable. If you use a HDMI cable, you don’t have to connect the audio cable. If you use a DVI-to-HDMI cable,

please connect the audio cable in the same way as the VGA cable.

Press INPUT on the remote control to select PC mode.

Switch on the computer. The TV can operate as the computer monitor.

Monitor Display modes
MODE Resolution

Refresh rate

VGA

640x480

60/ 72/ 75 Hz

VGA

720x400

70Hz

SVGA 800x600

56/ 60/ 72/ 75 Hz

XGA

1024x768

60/ 70/ 75 Hz

WXGA 1280x768

60Hz

WXGA 1280x720

60Hz

WXGA 1360x768

60Hz

To return to normal mode

Press INPUT again.

NOTE:

The on-screen displays will have a different appearance in PC mode than in TV mode.

If there is no video signal from the PC when the unit is in PC mode, “No signal” will appear on the TV screen.

Rear of the unit

or

Video/Audio cable (not supplied)

To VIDEO/AUDIO IN

To Video/Audio OUT

VGA cable (not supplied)

HDMI cable (not supplied)

Audio cable (not supplied)

To HDMI IN

To

PC/DVI

AUDIO

IN

To PC

MONITOR

IN
