Coaxial digital cable
(not supplied)
AV Amplifier with built-in digital surround
decoder as listed above
Center Speaker
Digital Audio
Coaxial Output
To Coaxial
Digital Audio Input
Front
Speaker
(Left)
Front
Speaker
(Right)
Subwoofer
Surround
Speaker (Left)
Surround
Speaker
(Right)
TV
To connect a HDMI or a DVI device to the unit
The HDMI input receives digital audio and uncompressed video from a HDMI device or uncompressed digital video from a DVI device.
When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate analog audio cables are
required.
Connections to other equipment (continued)

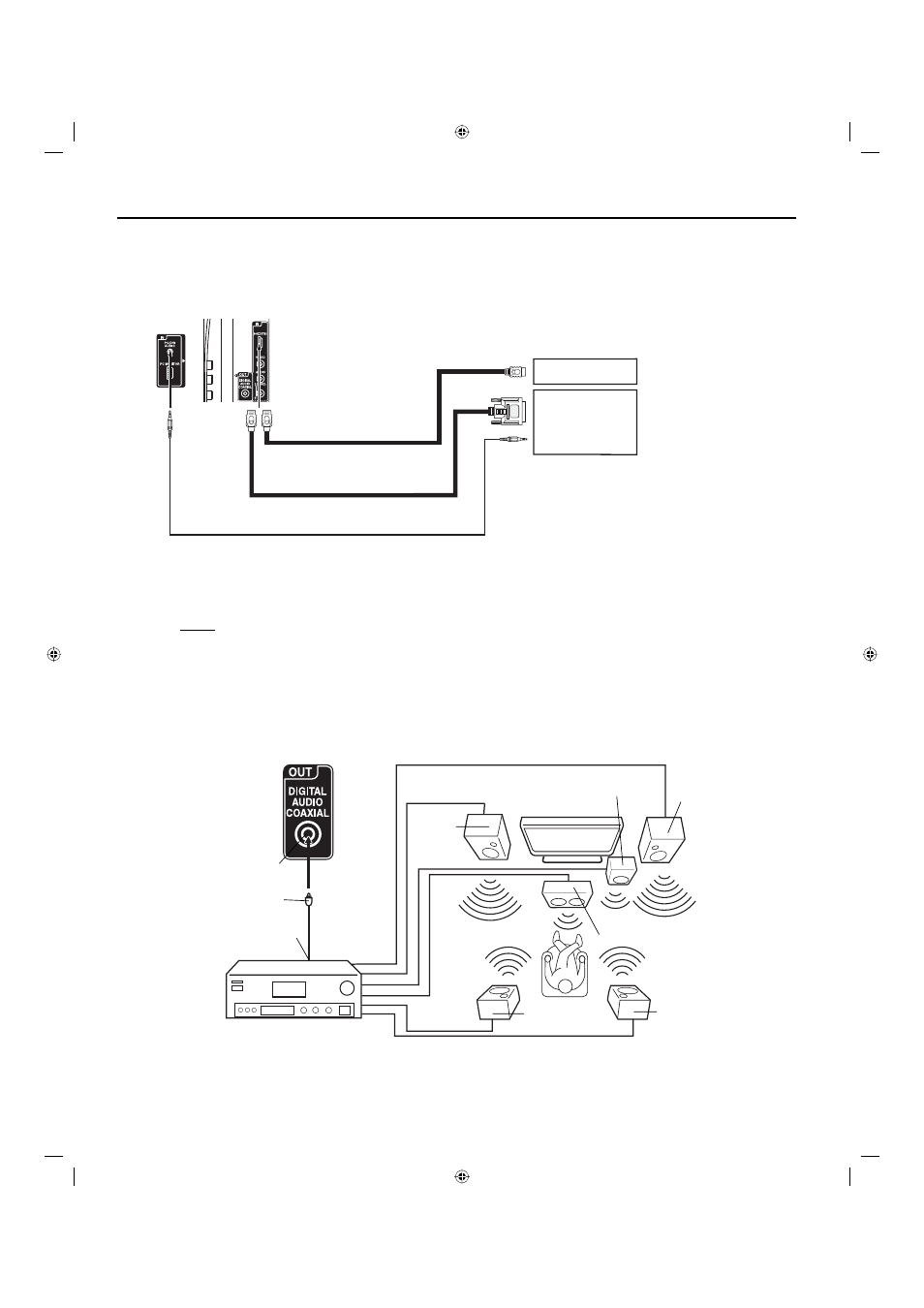

Using an AV Amplifier with built-in digital surround
If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including Dolby Digital Surround
audio that sounds just like the movie.
Connect an AV amplifier with built-in Dolby Digital decoder, DTS decoder, or MPEG decoder etc. as shown below.
Rear of the unit
Rear of the unit
NOTE:
When you are viewing digital broadcast, this unit will not work in conjunction with DTS audio or MPEG audio. There will be no sound
output if connected to an AV amplifier with a built-in DTS decoder or MPEG decoder.
•
NOTE:
When using HDMI to connect your HDMI or DVI devices, you must select the corresponding audio input source (HDMI or
DVI) on the menu screen (see page 15). Otherwise you will only see the image with no sound.
If you connect an external component (cable box, satellite receiver, etc.) to this TV using an HDMI cable or a DVI to HDMI cable,
the image will not display if the output resolution of the component is set to 480i. To receive the picture you must change the output
resolution on the external component.
Should you require further instruction, please contact the manufacturer of the external component.
•
•
HDMI - to - DVI adapter cable
(HDMI type A connector)
(not supplied)
Audio cable (not supplied)
HDMI cable (type A connector)
(not supplied)
To DVI output
To HDMI out
or
HDMI device
DVI device
To HDMI
IN
To PC/DVI
AUDIO IN
