Configura
55
Discards
This counter displays the number of frames the Ethernet has discarded due to lack of buffer resource or
error detection..
Statistics ISDN Sub-menu
The Statistics ISDN menu (see Figure 0-17, Statistics ISDN Window) contains the statistics and status
data collected on the ISDN interface. The “refresh” button is used to collect a new page of statistics
data. The “periodic on” button is used to refresh this menu every second.

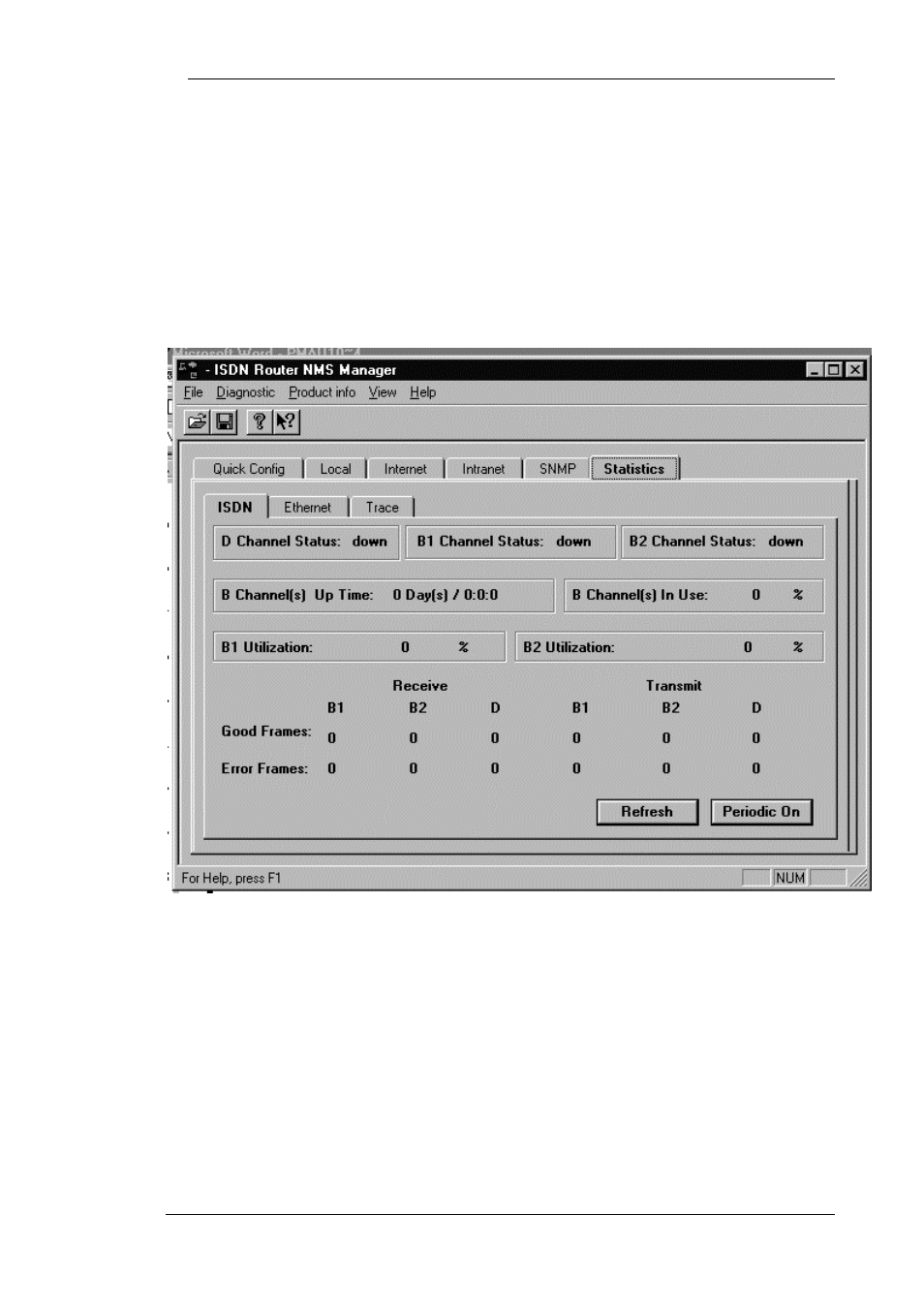

Figure 0-17, Statistics ISDN Window
D Channel Status
This field indicates the current D channel status. The D channel is either Up or Down.
B1 Channel Status
This field indicates the current B1 channel status. The B channel states are Up, Down, or Calling (in
the process of call establishment).
B2 Channel Status
This field indicates the current B2 channel status. The B channel states are in Up, Down, or Calling (in the
process of call establishment).
