Using the FlashMic
Jogswitch Description
Many of the FlashMic’s operating functions are accessed via the jogswitch on the bottom
panel. These include power on/off, navigation through the various internal menus,
adjustment of levels, and track selection for replay.
Operation of the jogswitch for each specific FlashMic function is described in detail in the
section of the manual covering the function. However, because the jogswitch has several
physical movements associated with it, an overview is given here.
The jogswitch is a small wheel protruding from the base of the FlashMic. It is effectively three
momentary-acting pushbuttons in one; it can be pressed inwards (from its rest position),
or rotated in either direction. The actions are all spring-loaded so that the jogswitch always
returns to its rest position. Each of the three possible movements can be either ‘long’ or
‘short’, giving a total of six possible actions. The FlashMic’s firmware determines a ‘long’
press to be one of greater than seconds. duration, and as ‘short’ press to be one of less
than seconds.

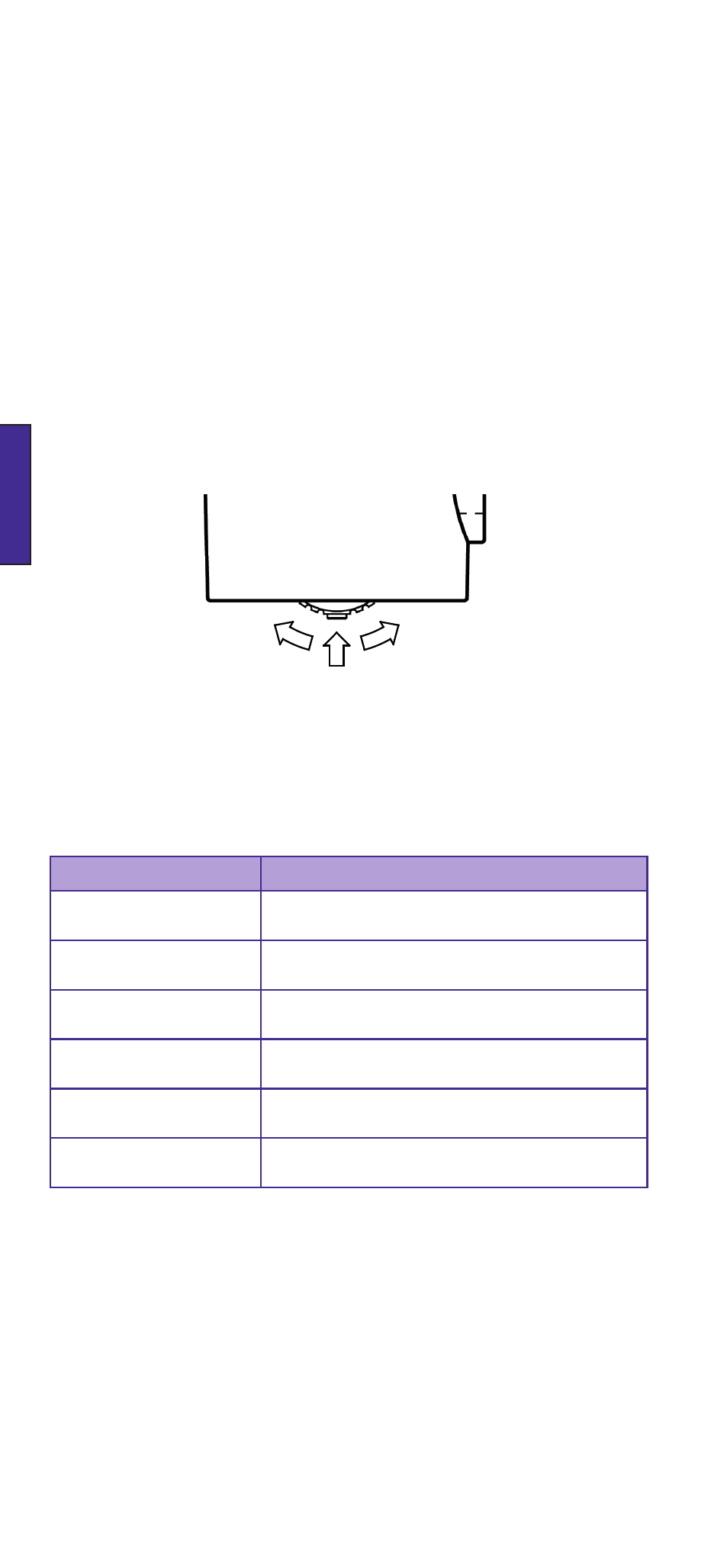

The diagram below summarises the possible movements.
Elsewhere in this manual, the following notations are used to denote the various types of
jogswitch action. It is assumed that the FlashMic is orientated with the LCD display facing
the user.
NOTATION ACTION
SHORT PRESS Press the centre protrusion inwards and release
LONG PRESS
Press the centre protrusion inwards for a least
seconds
SHORT DOWN TURN Move the wheel downwards and release
LONG DOWN TURN
Move the wheel downwards and hold for at least
seconds
SHORT UP TURN Move the wheel upwards and release
LONG UP TURN
Move the wheel upwards and hold for at least
seconds
