10. Place the ball (18) on the fluid piston (19c).
11. Apply thread sealant to the threads of the fluid
piston (19), screw the fluid piston onto the piston
rod (10), and torque to 23 ft-lb (31.2 N
S
m).
12. Install the air motor rod assembly by inserting it up
through the base from the bottom.
13. Install the spring (8) and the washer (7) on top of
the piston rod (10).
14. Apply sealant to the threads of the piston rod (10).
Carefully hand tighten the air piston assembly (15)
onto the piston rod until it is secure. Do not
tighten with tools.
15. Lubricate the outside of the air piston assem-
bly (15). Install the spring (17) into the cap (2).
Lubricate the gasket (6*), and install it in the cap.
Install the cap on the cylinder (4).
16. Assemble the cylinder (4) onto the base (5). Screw
the cylinder and base together hand tight.
17. Screw the intake valve housing (21) of the
assembled intake valve assembly onto the fluid
cylinder (24).
18. Heavily lubricate the top inside diameter of the
fluid cylinder (24) and the outside threads. Careful-
ly guide the fluid piston assembly into the fluid
cylinder. Push the fluid cylinder up, and screw it
into the pump base. Use a pipe wrench on the
knurled part of the intake valve housing (21) to
tighten the fluid cylinder and the intake valve.
15f
15e
15d
Apply sealant to threads of screw,
and torque to 10 to 14 in-lb
(1.3 to 1.6 N-m).
wrench
pliers
0.032 in.
(0.8 mm)
minimum

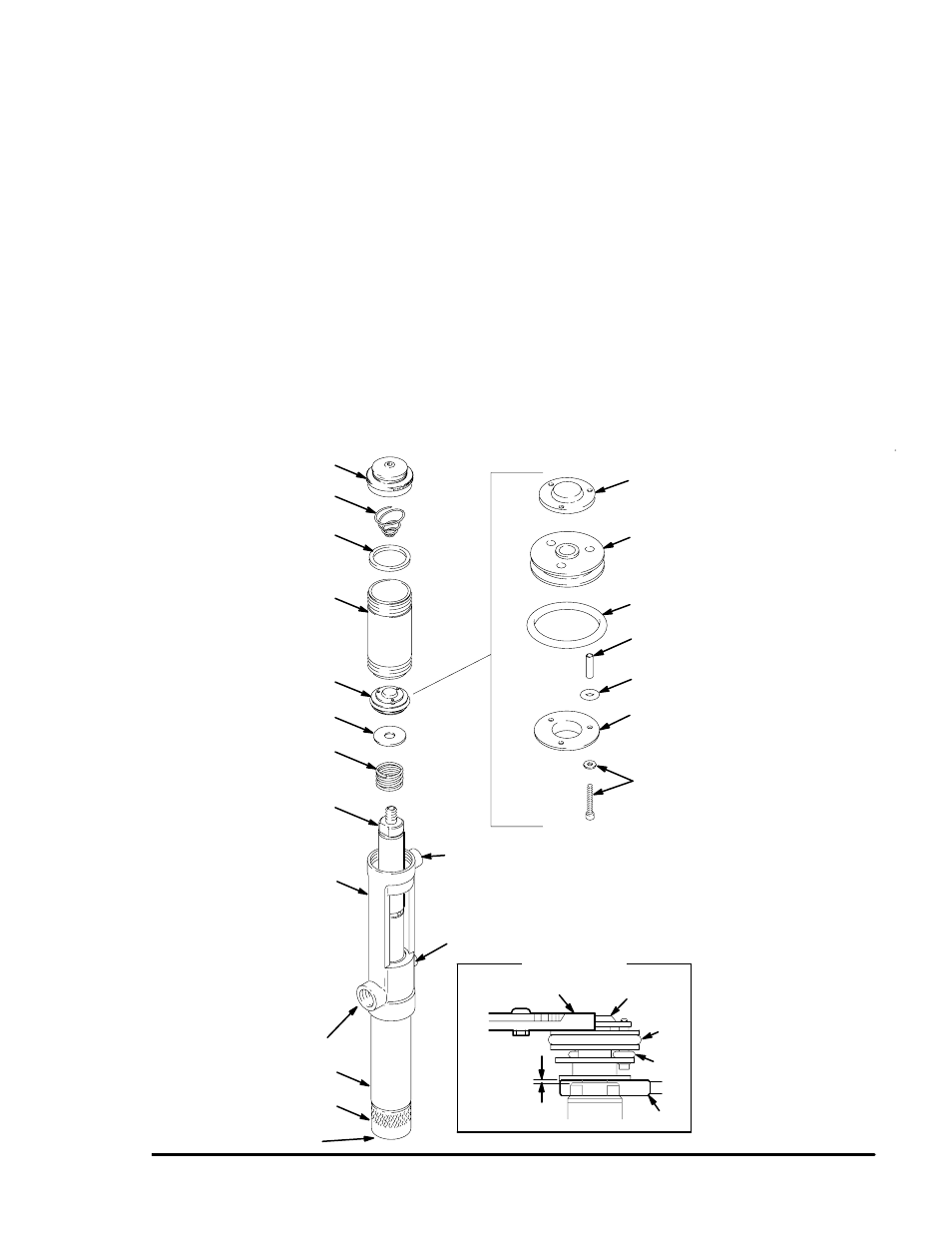

Fig. 3 05943B
intake valve
2
4
6*
7
8
17
10
15
5
21
15a*
15b*
15c*
air inlet
fluid outlet
24
13
NOTE: Use pliers and
wrench only for loosening
the piston assembly from
the piston rod. Do not use
them for tightening the
piston assembly.
15g
15a*
15b*
15c*
Piston Detail
