1.12 1.12
Check that parts are delivered correctly: Remove the
mower from the packaging and check that all loose items
have been supplied correctly. Refer to the delivery checklist
opposite and the general assembly. If any items are missing,
contact your local authorised Hayter Dealer.
Description
Handlebar Lower LH
Handlebar Lower RH
Coach Bolt
Washer
Nut
Handlebar Support LH
Handlebar Support RH
Large Knob
Upper Handlebar
Cap
Cable Guide
Grassbag Frame
Grassbag Fabric
Grassbag Flap
Engine Handbook
DELIVERY CHECKLIST
ASSEMBLING THE MOWER FOR THE FIRST TIME
ASSEMBLY INSTRUCTIONS
Quantity
1
1
4
4
4
1
1
4
1
4
4
1
1
1
1

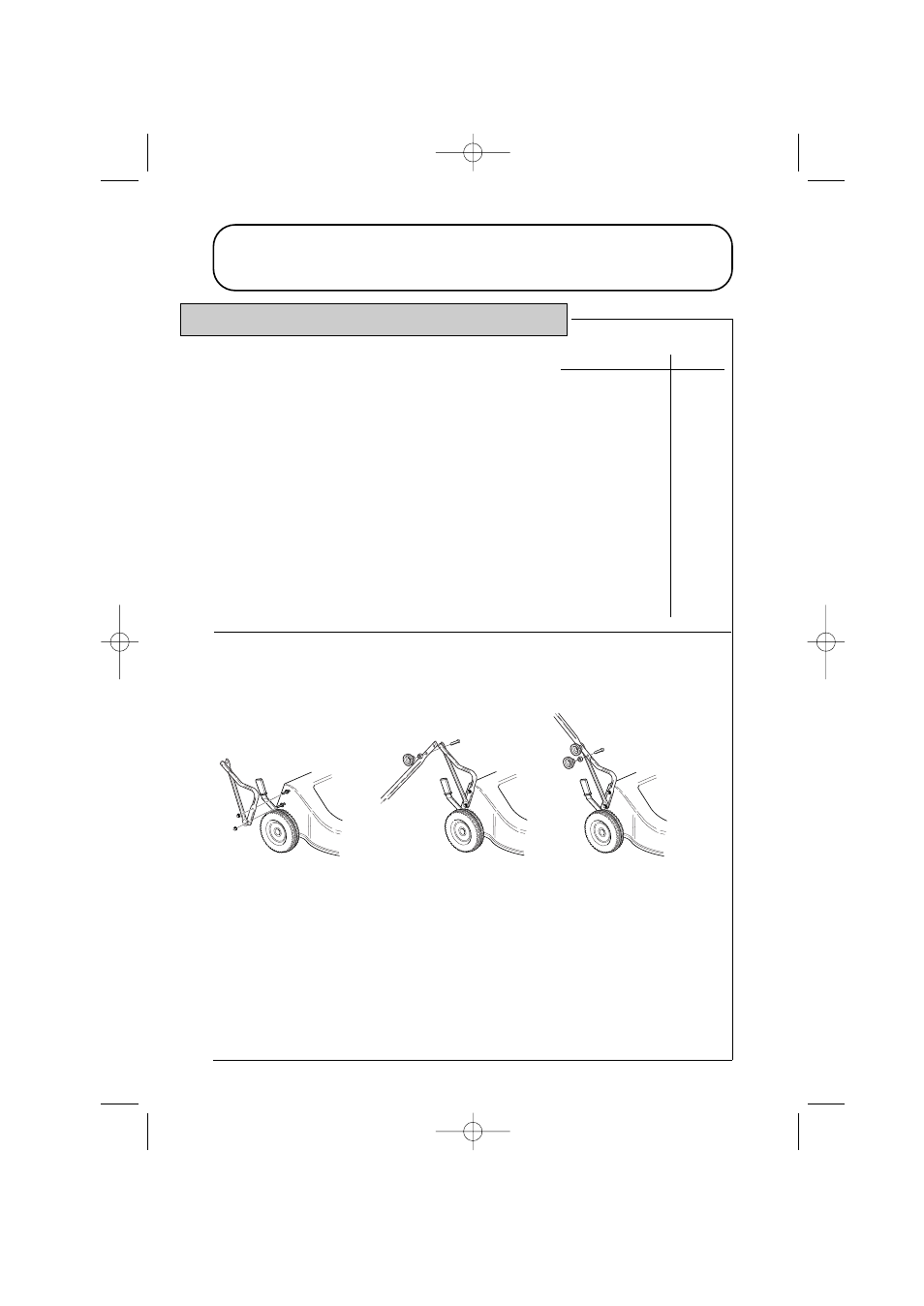

Assemble the handlebars: Assemble the handlebars as shown. Route the cables carefully
and clip in position to avoid damage and entanglement when using the machine.
CAUTION - PREVENT DAMAGE : When assembling the handlebar, take care to
ensure that the controls and cables do not become damaged. Always replace damaged
controls and cables before using the mower.
CS223 CS224 CS225B
