5
The following instructions are provided for qualified install-
ers so that they may accomplish installation, adjustment
and technical maintenance operations correctly and in
compliance with current regulations and standards.
Important: before any operation, disconnect the hob from
the electrical supply.

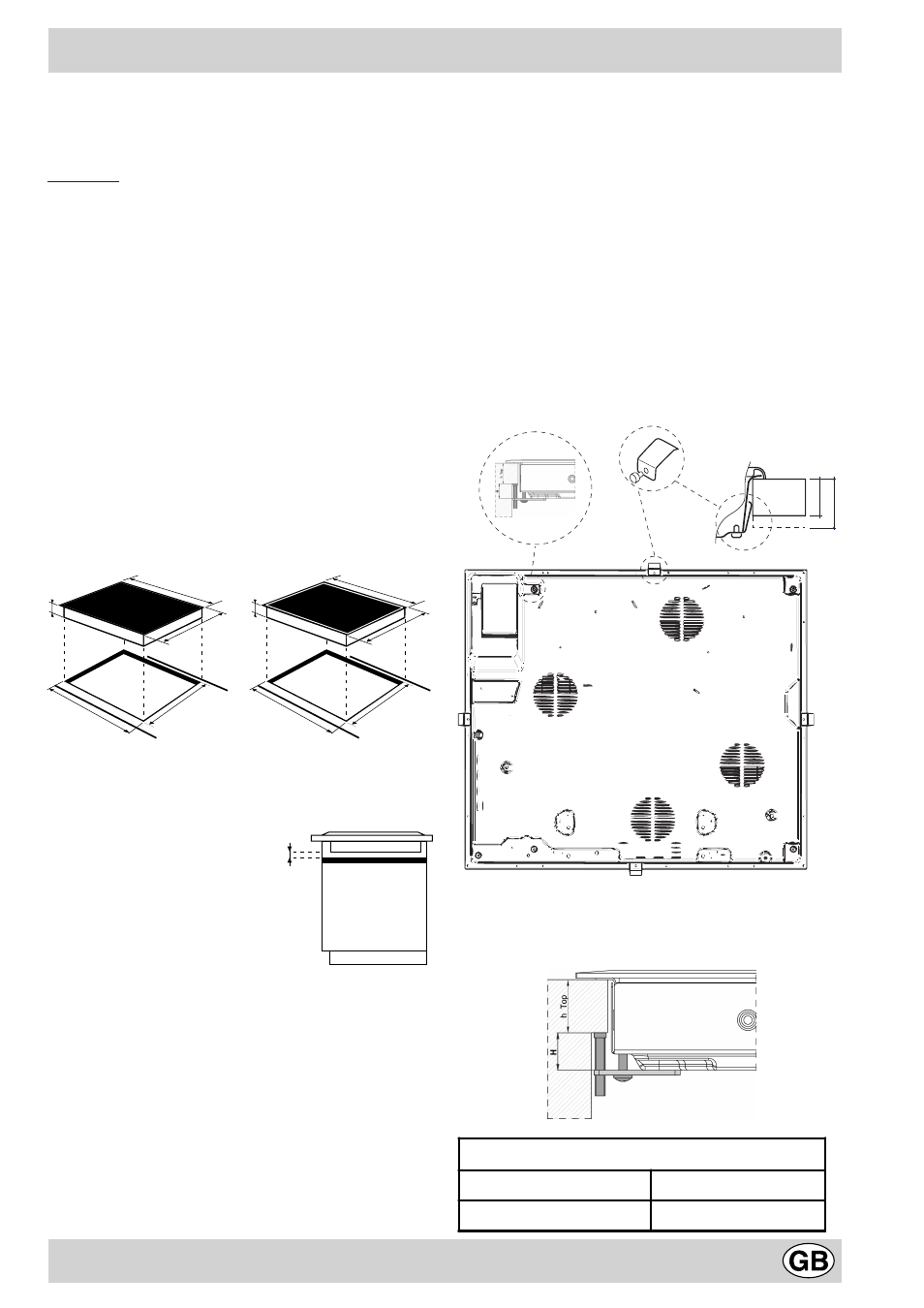

Installation
• The hob should be installed on a piece of kitchen
furniture simply by removing the corresponding space.
•
The material used for the working surface must be
able to resist a temperature of approximately 100°C
•
The hob must be positioned at a minimum distance
of 40mm from the back wall or from any other vertical
surface, to allow for adequate aeration and to prevent
the surfaces surrounding the appliance from overheat-
ing.
•
If you want to install the hob on top of an oven, the
latter must come with a forced ventilation cooling sys-
tem.
•
Try to avoid installing the hob on a dishwasher; if
you have to do this, place a waterproof separating ele-
ment between the two appliances.
Fastening
Very important: The installation of a glass ceramic hob
must be carried out on a perfectly-level supporting sur-
face.
Any deformations caused by incorrect fastening could
alter the characteristics and performance of the hob.
The fastening springs are screwed on with screws (see
diagram).
It is essential that these screws are always accessi-
ble.
Insert the hob in the space provided in furniture unit, ex-
ercising suitable pressure on the entire perimeter so that
the hob sticks perfectly to the top.
FRONT OF HOB
KITCHEN
WORKTOP
30
4
0
REAR SPRING ASSEMBLY
HOB FROM BELOW
The length of the adjusting screw of the fastening hooks
must be set before they are assembled, in according to
the thickness of the top and to the following table:
Installation and fastening
10
Distance to
keep between the
cut-out slot and
the cabinet
560 +/- 1
490 +/- 1
48
590
520
560 +/- 1
490 +/- 1
48
574
504
H
h Top = 30mm h Top = 40mm
17,5 mm 7,5 mm
