INSTALLING THE LCR

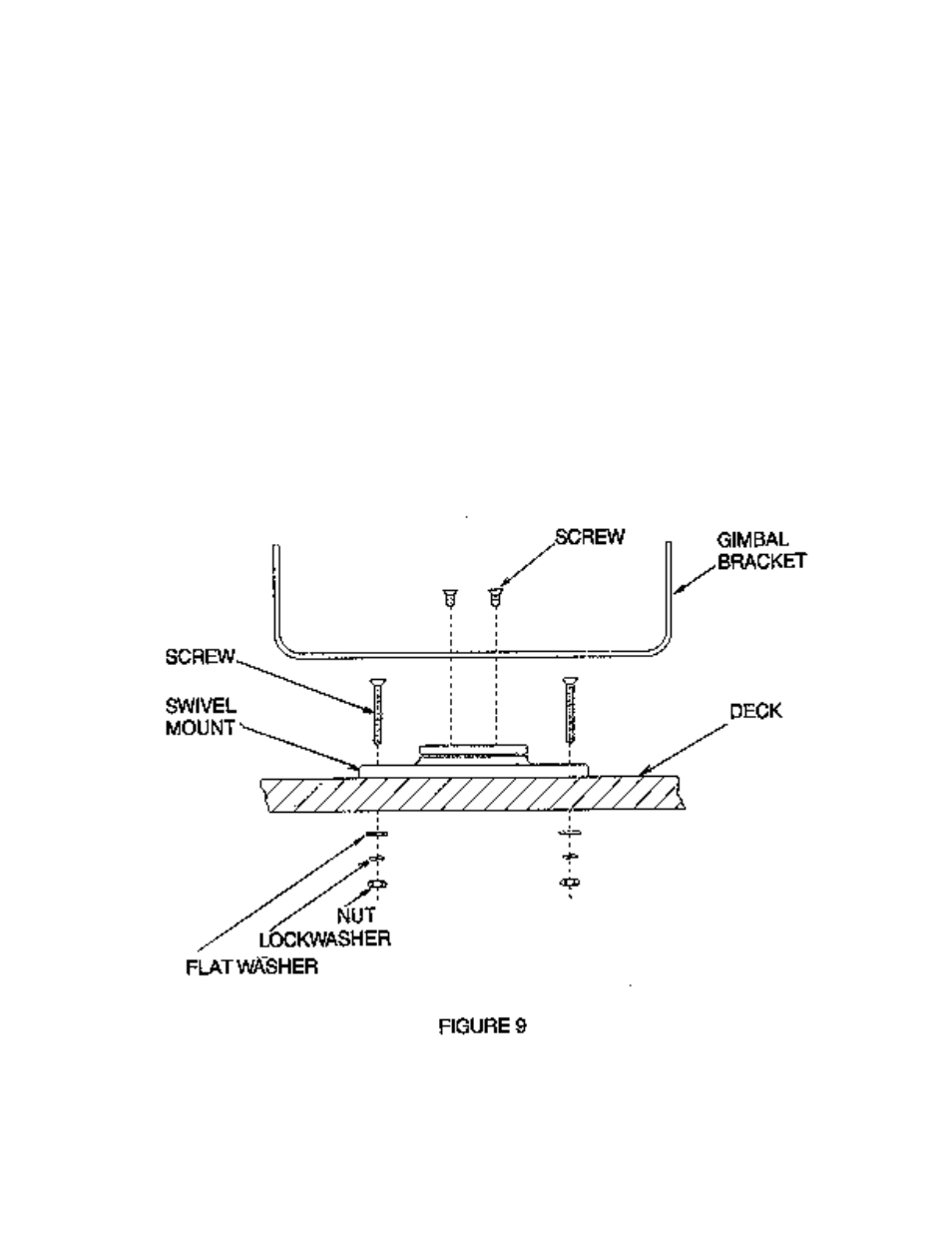

The LCR should be mounted on a flat, solid surface for maximum stability. The low
profile swivel mount has four holes drilled in the base. It is recommended that all four
holes be used.
Position the swivel base and drill four ¼” diameter holes. Note: The LCR hole pattern Is
the same as for all Humminbird flasher units. Use hardware provided to mount this base
to the boat.
Next place the gimbal bracket on the swivel base and attach with four small machine
screws, provided.
Place the LCR in the gimbal mount and make certain the rubber washers provided are
placed between the unit and the gimbal bracket Important: Note which side of the
gimbal faces forward. (Slots on gimbal bracket go towards rear). Also, rubber washer
must be located between the unit and the gimbal bracket.
Install the mounting knobs and tighten snugly. The unit can now be swiveled and tilted
to any desired position.
