Setting the Camera Image Properties
The table below explains the options on the VIEWING menu.
Automatic Tracking White Balance (Extended Range). Continuously monitors the color
temperature while an internal micro controller sets the white balance. Select this mode
when the scene illumination varies between indoor scenes and outdoor scene lighting.
Operating color temperature range is 2000K to 11000K.
>ADVANCED
WHITE BAL .. Opens the ADVANCED WHITE BALANCE menu where you can adjust the magenta or
the white balance bias. Options are:
. Select
, , or
to open the MAGENTA CONTROL screen and, while observing the
video monitor, adjust the level, from 0 to 100 (5 is the default).
to adjust the level from -2K to 2K (0 is the default).
>AI THOLD Adjust the Automatic Iris (AI) threshold, from -42 to 60 (-18 is the default).
Note When using a manual iris lens, set the AI threshold to -42 (recommended).
The AI threshold is factory set to -18 for all WDR presets.

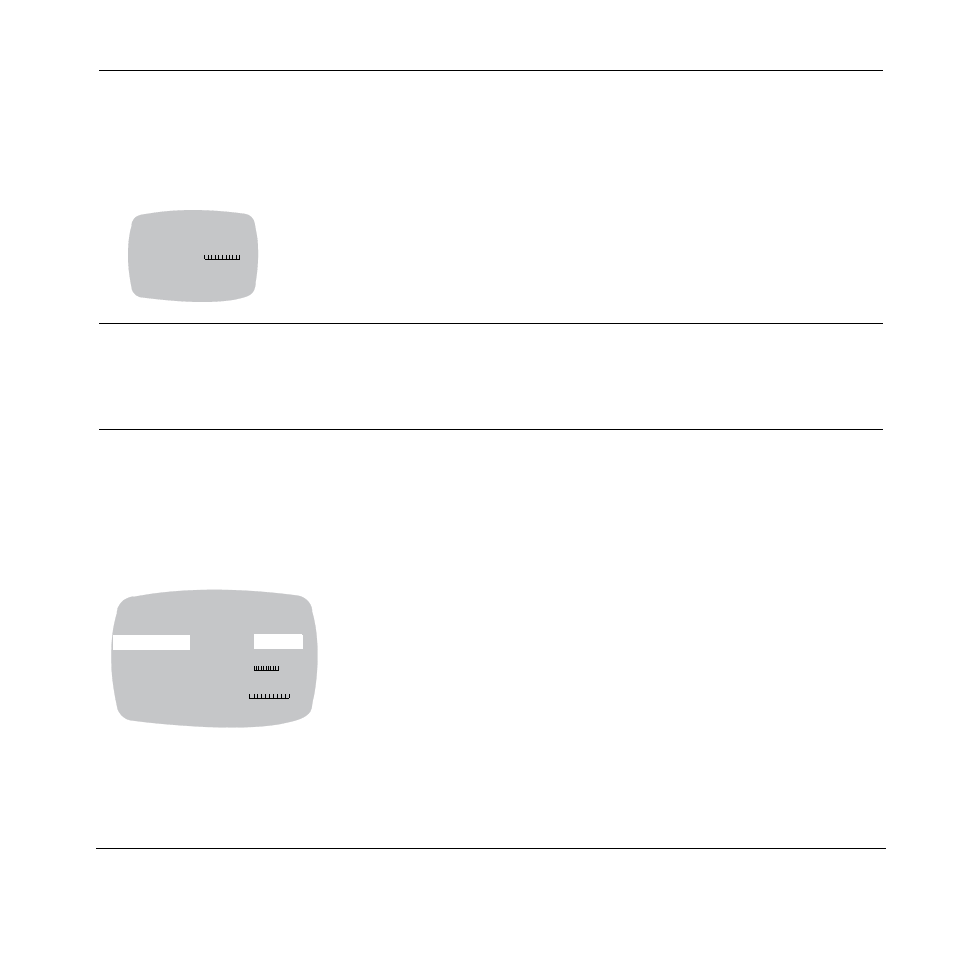

ADVANCED WHITE BALANCE
MGNTA CTRL OFF
WB BIAS
-2K 0 2K
PREVIOUS PAGE .
>
!
VIEWING
FLIP OFF
ID DISPLAY
SHARPNESS NORMAL
BRIGHTNESS 110 80 130
RESOLUTION NORMAL
COLOR ADJ. 0 -8 8
PREVIOUS PAGE .
>
!
!
