Connecting the Wiring
Follow
Figure 5
to connect the video and power wires.

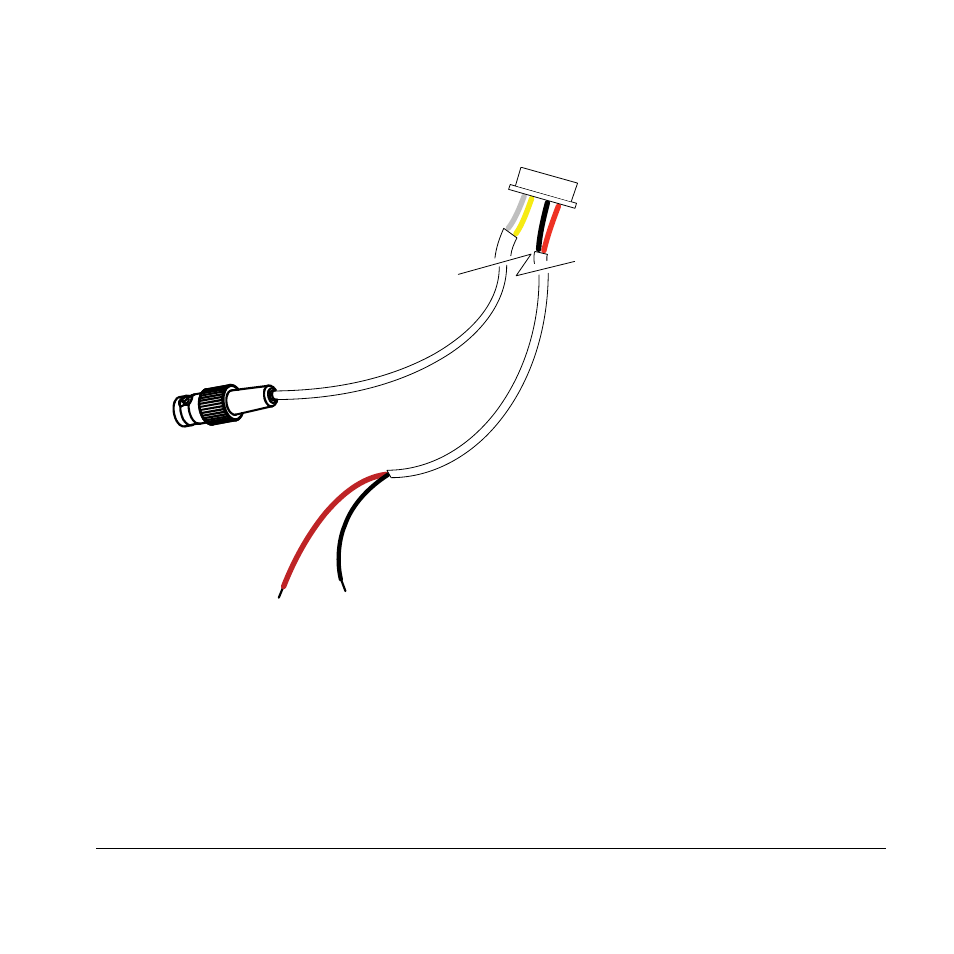

Figure 5
Wiring Connection
Adjusting the Camera
To adjust the HD4U/X Camera:
1.
Apply 12 VDC or 24 VAC power to the camera and monitor the video signal.
2.
Loosen the screws that lock the gimbal assembly in place (see
Figure 6
).
3.
Adjust the camera carrier to the desired view.
4.
Tighten the screws to lock the gimbal assembly in place.
Note
Orient the camera as shown in
Figure 6
to maintain the correct picture orientation.
Red+
Black –
Power
Video: female BNC
Note
For secure installations,
surface-mounted cables should
be protected by plastic or metal
cable covers.
