16
Heat & Glo • GEM42 • 371-900 Rev. N • 2/05
VENTING WITH THREE (3) 90° ELBOWS
V (FT.)
H
(FT.)
2' MIN. (.609m)
3' MAX. (.912m)
2.5' MIN. (.762m)
6' MAX. (1.82m)
3.5' MIN. (1.06m)
9' MAX. (2.73m)
4.5' MIN. (1.37m)
12' MAX. (3.64m)
NOTE: H + H
1
= 24' MAX. (7.28m)
V + V
1
+ H + H
1
= 64' MAX. (19.5m)
V (FT.)
H + H
1
(FT.)
2' MIN. (.609m)
3' MAX. (.912m)
2.5' MIN. (.762m)
6' MAX. (1.82m)
3.5' MIN. (1.06m)
9' MAX. (2.73m)
4.5' MIN. (1.37m)
12' MAX. (3.64m)
H +H
1
= 20' MAX. (6.2m)
NOTE:
V+V
1
+H +H
1
= 64' MAX. (19.5m)

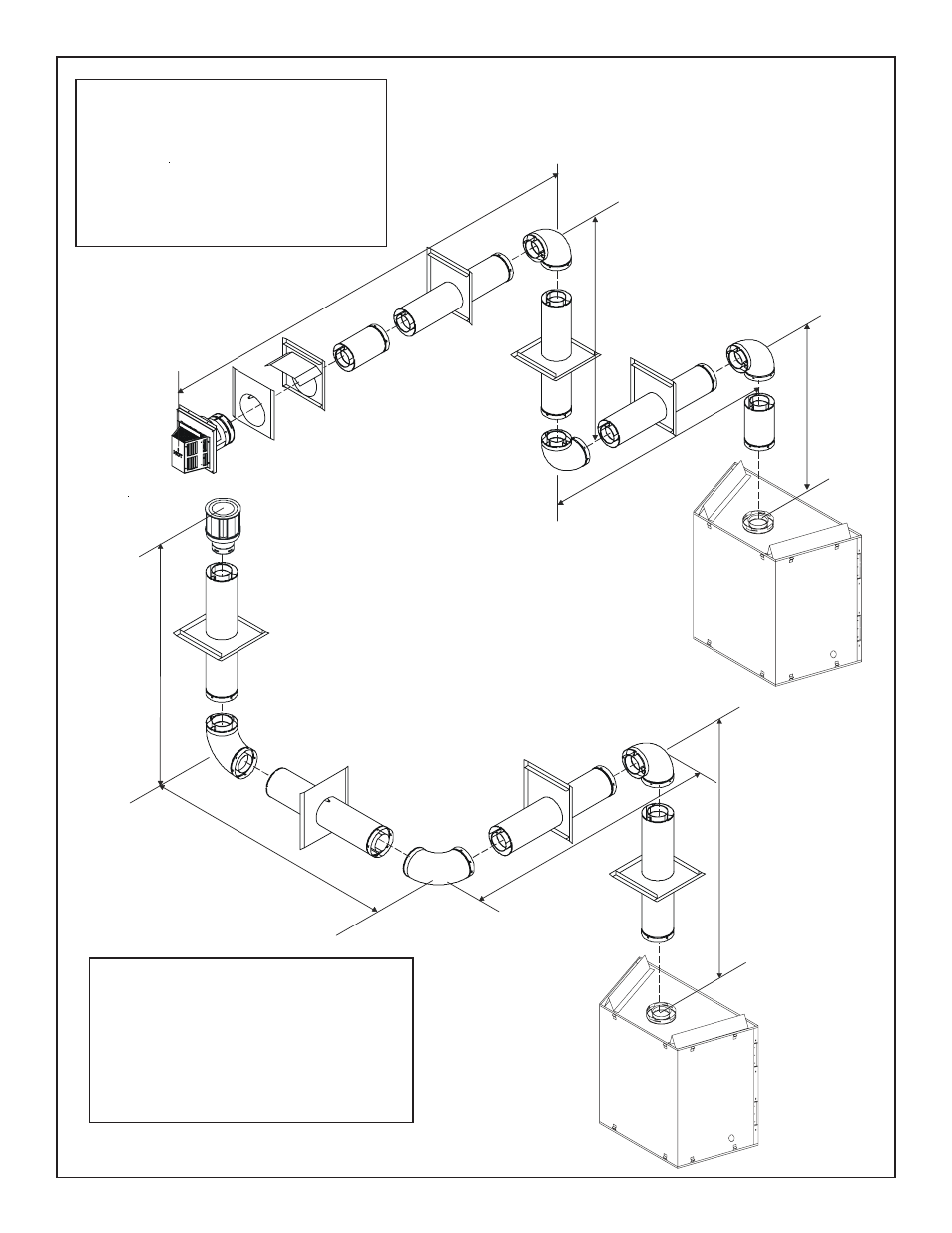

Figure 13. Venting with three 90° elbows
V
H
H
1
V
1
V
H
H
1
V
1
