03/06 ID# M661134
15
5.
4
5
6
WOOD SCRAP
(NOT SUPPLIED)
RODS SHOWN ARE
FOR VISUAL
REPRESENTATION
OF ALIGNMENT
AND ARE NOT
SUPPLIED WITH
THE HARDWARE

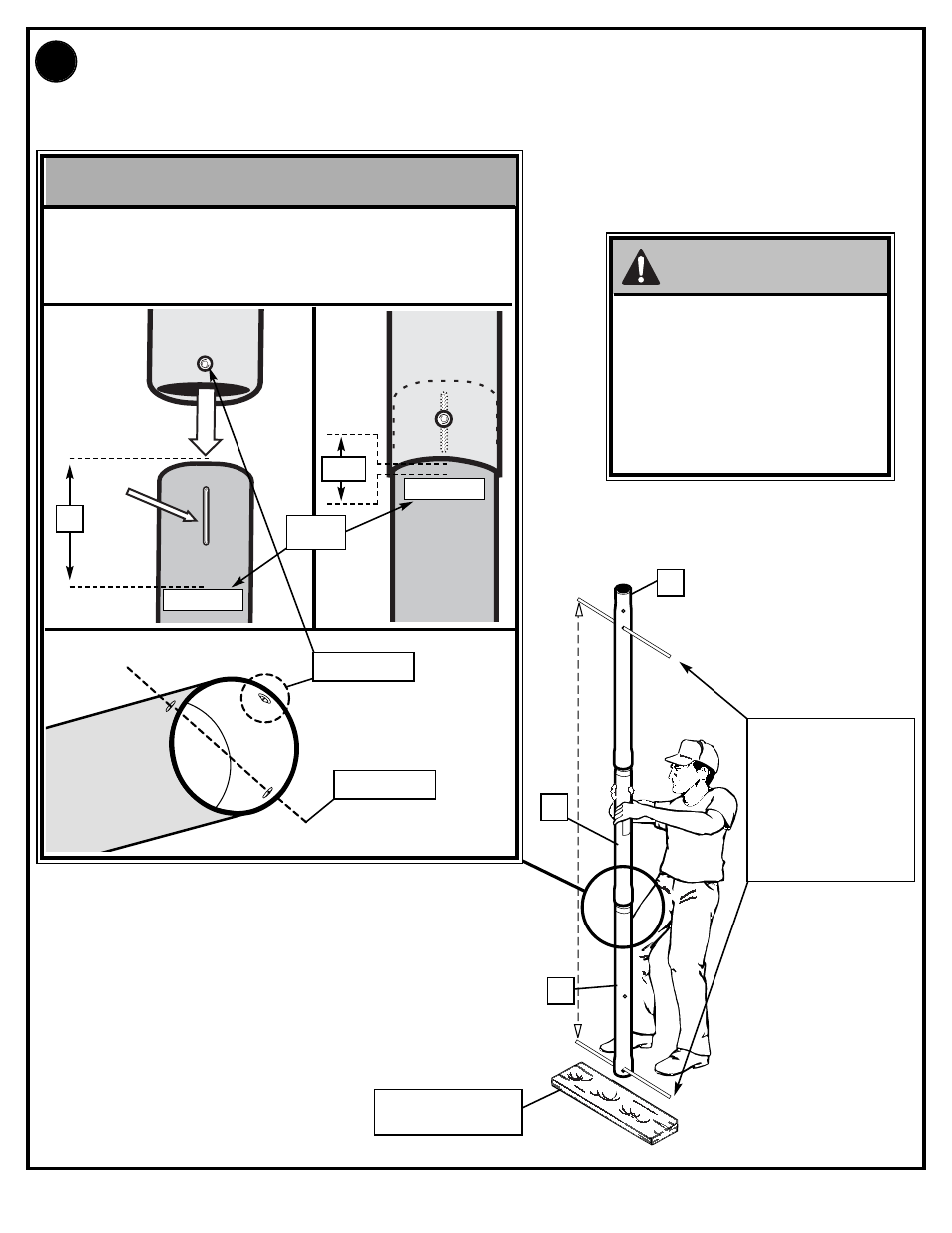

Align dimple of middle pole section (5)
into trough of bottom pole section (6)
as shown.
IMPORTANT!
HOLE
DIMPLE
Bottom pole
THE IDENTIFICATION STICKER IS
LOCATED 5" FROM THE END OF
THE POLE. WHEN PROPERLY
POUNDED TOGETHER, THE POLE
SECTIONS SHOULD HAVE A 3-1/2"
MINIMUM OVERLAP, LEAVING 1-1/2"
BETWEEN THE OVERLAPPING
POLE AND THE IDENTIFICATION
STICKER.
CAUTION!
5"
1-1/2"
ID
STICKER
Bottom pole
Bounce top and middle pole assembly (4 and 5) onto bottom pole section (6) using a
wood scrap as shown. Bounce until the top and middle pole assembly no longer
moves toward the pole identification mark on the bottom pole.
