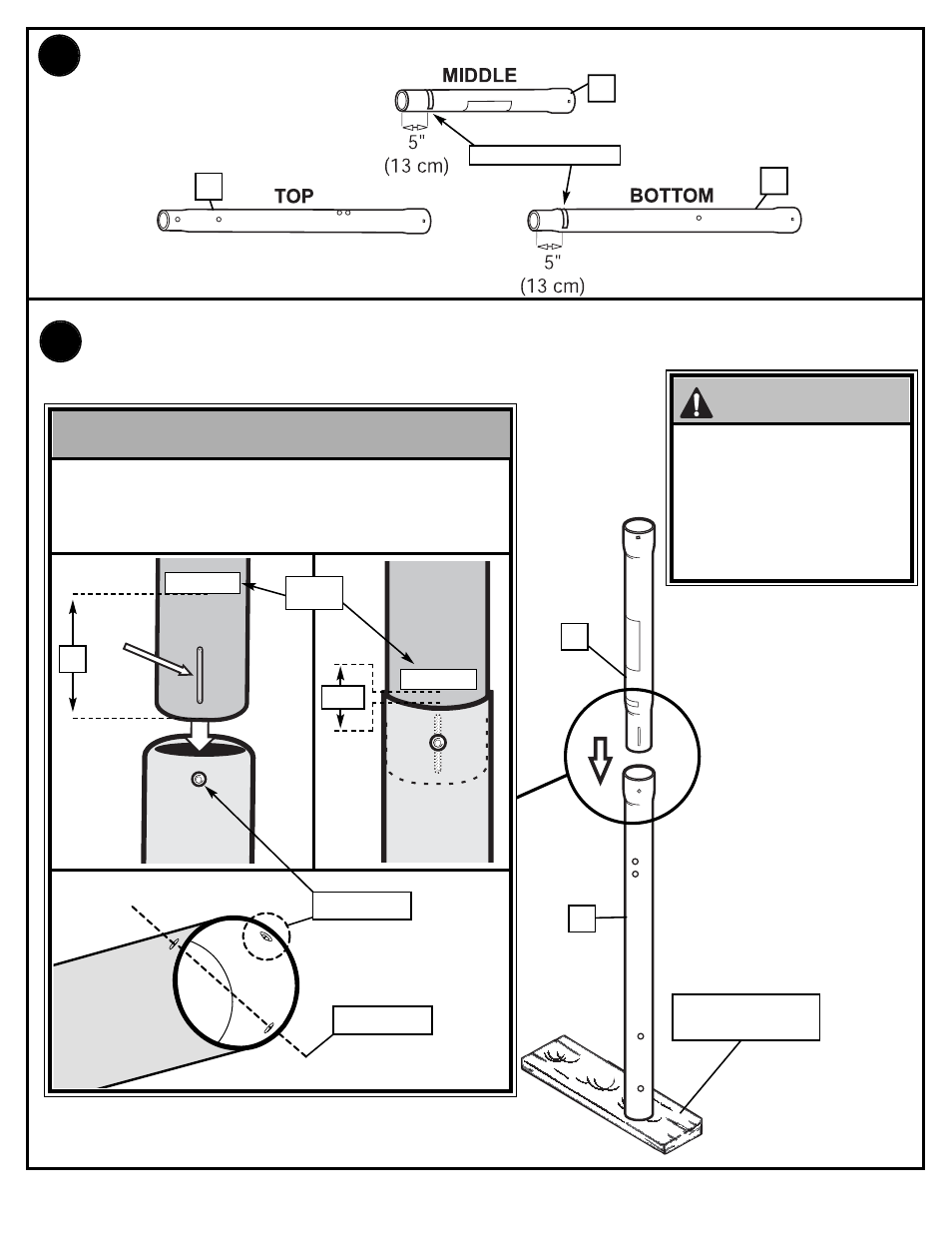

While maintaining alignment, bounce middle pole section (5) into top section (4)
using a wood scrap as shown until the top pole no longer moves toward the pole
identification sticker on the middle pole.
Identification Sticker
Align dimple of top pole section (4)
into trough of middle pole section (5)
as shown.
IMPORTANT!
HOLE
DIMPLE
middle pole
THE IDENTIFICATION STICKER IS
LOCATED 5" FROM THE END OF
THE POLE. WHEN PROPERLY
POUNDED TOGETHER, THE POLE
SECTIONS SHOULD HAVE A 3-1/2"
MINIMUM OVERLAP, LEAVING 1-
1/2" BETWEEN THE OVERLAPPING
POLE AND THE IDENTIFICATION
STICKER.
CAUTION!
5"
middle pole
1-1/2"
3.
Identify pole sections.
ID
STICKER
