REAR PANEL MAIN POWER SWITCH & JACKS

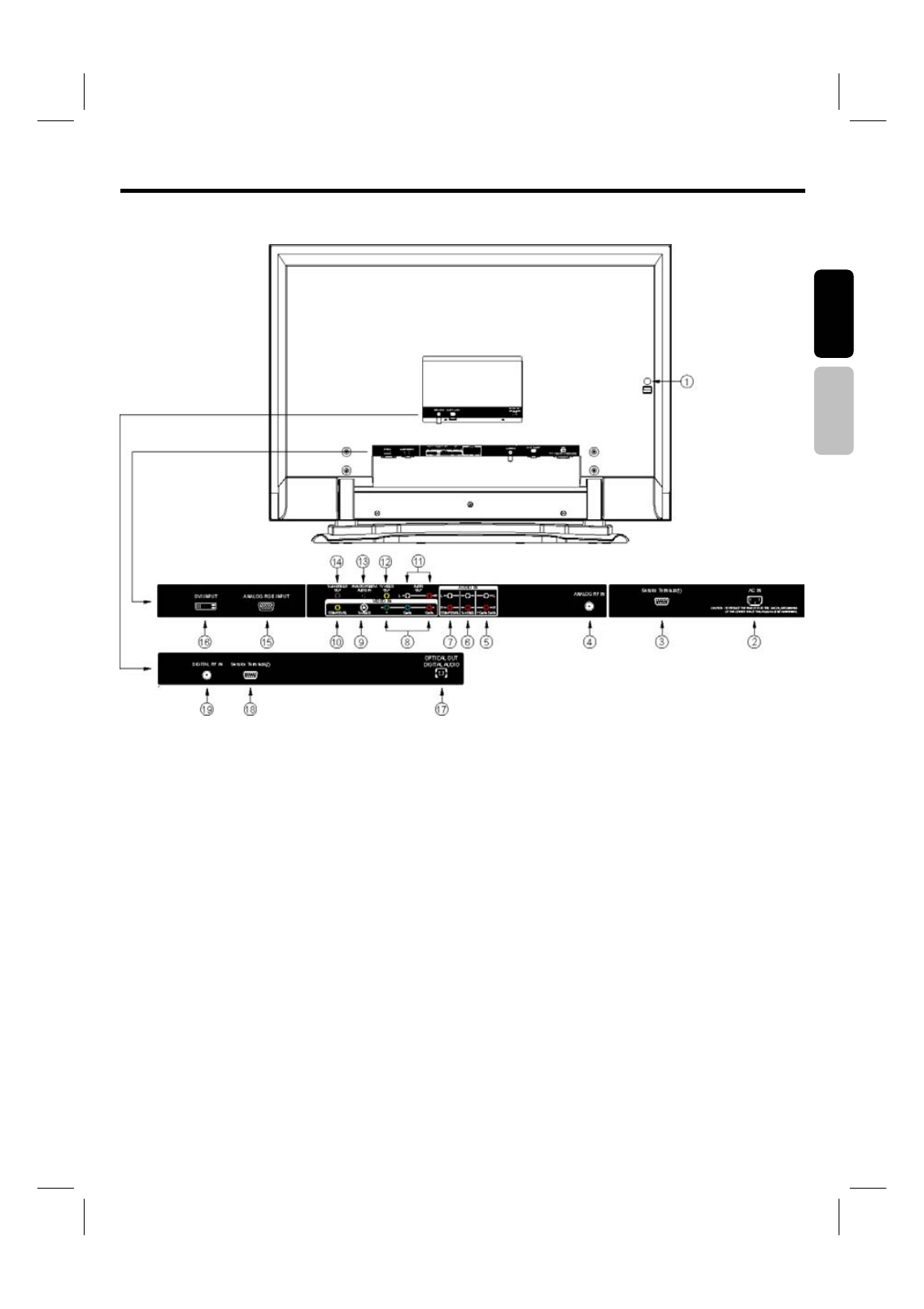

REAR VIEW
42” PLASMA TV
①
MAIN POWER button
This power button is for the complete system, and must be turned ON/OFF manually. It is recommended to leave the “MAIN
POWER” to ON condition (lights red) for stand-by mode.
②
AC IN input
This TV is designed to operate on 120VOLTS 60Hz AC current. Insert the TV power cord into a 120VOLTS 60Hz outlet.
③
Service Terminal (1) Input
For factory adjustment and service, please DO NOT connect here.
④
ANALOG RF Input
RF input that connects to the antenna, cable box, or CATV cable. Supports NTSC TV system.
⑤
Y-P
B
P
R
/
Y-C
B
C
R
- Audio Input
Connect audio for Component input (if you have mono sound, insert the audio cable into the
left(L)
audio jack).
⑥
S-VIDEO - Audio Input
Connect audio for S-Video input (if you have mono sound, insert the audio cable into the
left(L)
audio jack).
⑦
COMPOSIT - Audio Input
Connect audio for Composite input (if you have mono sound, insert the audio cable into the
left(L)
audio jack).
⑧
Y-P
B
P
R
/
Y-C
B
C
R
Inputs
Provide Y-P
B
P
R
/
Y-C
B
C
R
jacks for connecting equipment with this capability, such as a DVD player or Set Top Box.
