FRONT PANEL CONTROLS

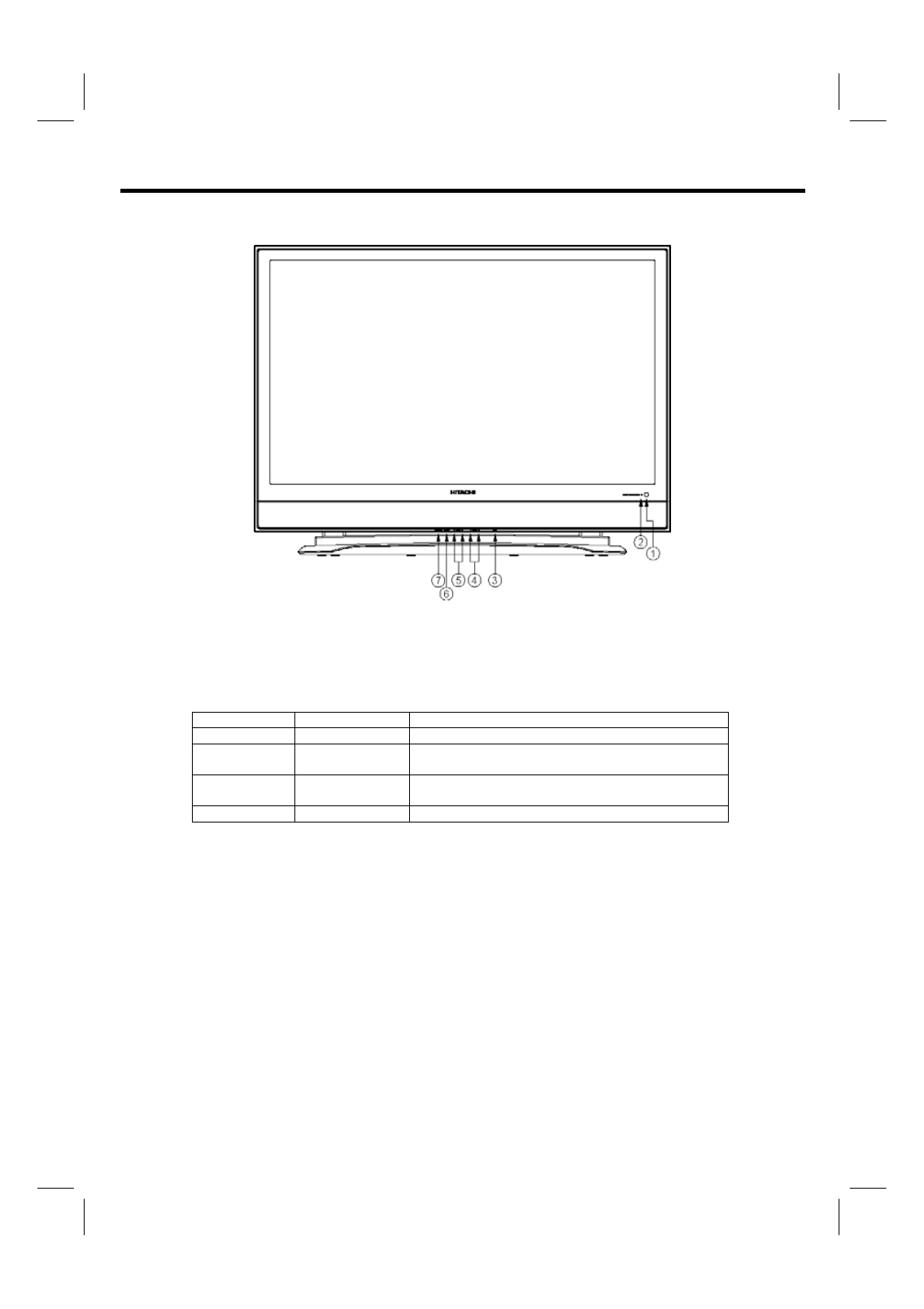

FRONT VIEW
42” PLASMA TV
①
REMOTE CONTROL sensor
Point your remote at this area when selecting channels, adjusting volume, etc.
②
POWER light indicator
To turn the PDP TV ON, press the main power button located on the BACK left side of the TV. A red stand-by indicator lamp
located on the lower right corner of the front bezel will illuminate. The PDP TV is now ready for remote on/off operation.
Indicating Lamp
Power Status
Operating
Off
Off
When the MAIN POWER is set OFF.
Lights Red
Off
(Stand-by)
When the MAIN POWER is set ON and the Front Key or
Remote Control POWER is OFF.
Lights Orange
Off
(Power Saving)
1. When the MAIN POWER is set ON.
2. No signal
input (no sync. signal).
Lights Green
On
When the POWER is ON.
③
POWER button
This power button is for power on the plasma television or change to standby mode.
④
CHANNEL selector
Press these buttons until the desired channel appears in the top right corner of the TV screen. These buttons also serve as the
cursor down (
) and up (
) buttons when in MENU mode.
⑤
VOLUME level
Press these buttons to adjust the sound level. The volume level will be displayed on the TV screen. These buttons also serve as the
cursor left (
W) and right (X) buttons when in MENU mode.
⑥
INPUT/EXIT button
Press this button to select the desired input: NTSC, DTV, Composite-VIDEO, S-VIDEO, YC
B
C
R
, YP
B
P
R
, Analog RGB or DVI source.
This button also serves as the EXIT button when in MENU mode.
⑦
MENU/SELECT button
This button allows you to enter the MENU, making it possible to set TV features to your preference without using the remote. This
button also serves as the SELECT button when in MENU mode.
