Home Automation RC-2000 - Manual (Page 6)

6 6
Single Stage Conventional
24VAC "HOT"
Heat
24VAC Common*
Fan
Cool
Humidifier
Dehumidier
UP
24VAC
CONTROL
TRANSMFOMER
Dehumidifier
Humidifier
Fan Relay
Cool Relay
Heat Relay
HVAC SYSTEM
THERMOSTAT
(RC)
(C)
(Y1)
(G)
(W1)
(D)
(H)
1
3
8
6
7
11
12
* Common wire is required in “heat only” or “cool only” applications. Also use a common if heat, cool,
or fan relay cannot supply 15mA to power thermostat, without activating.

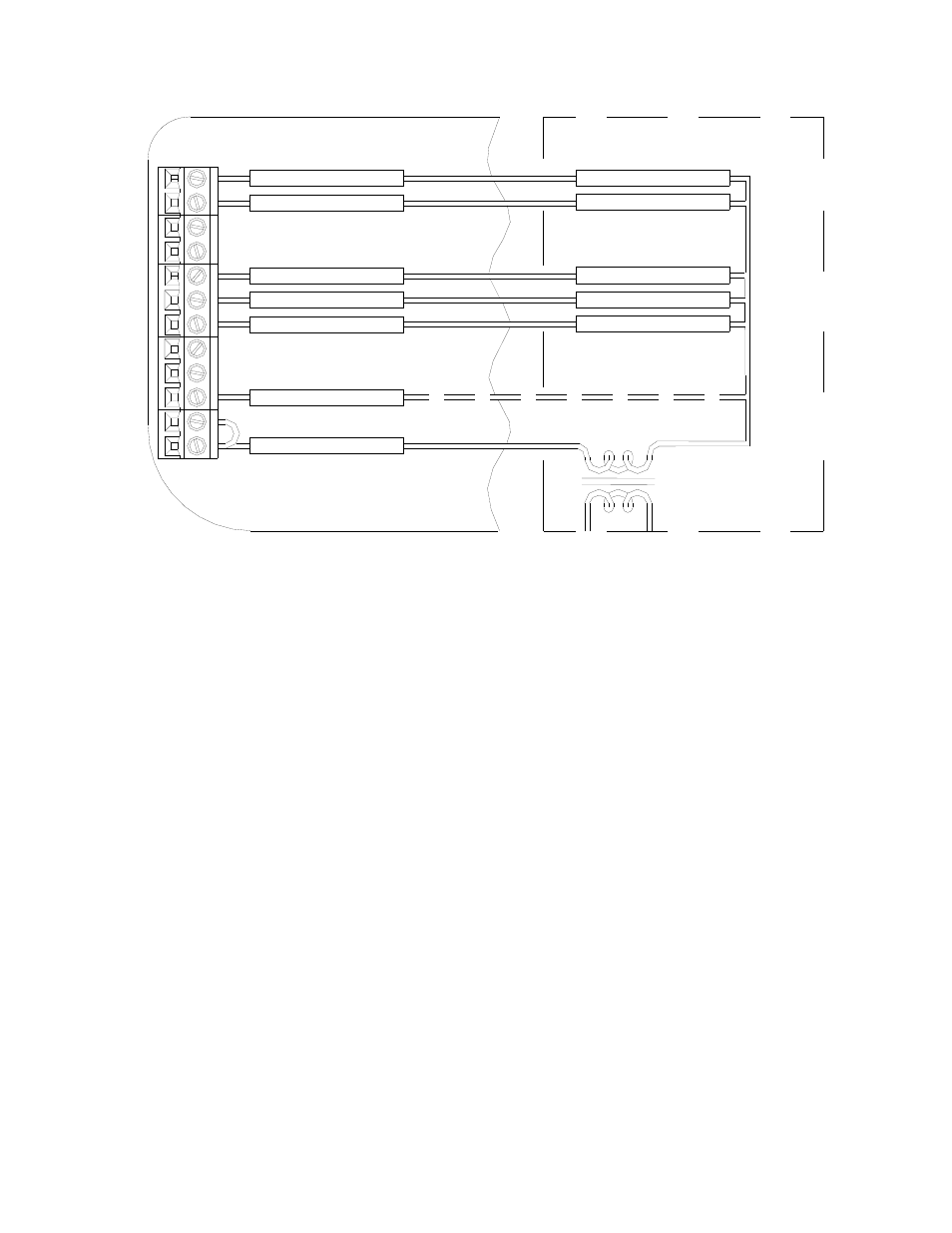

Figure 6 – Connections for single stage heat/cool thermostat
CONFIGURATION

From the factory, the RC-2000 is configured as a single stage conventional heat/cool thermostat.
 In the default configuration, this thermostat does not turn the fan on with a call for heat. If the furnace does
not turn the fan on with a call for heat, the thermostat must be configured to do so under “System Options”.
POWER UP
1. Double check wiring, be sure that there are no stray wires or wire strands at the connections.
2. Connect power to the transformer and system. The display will show the current thermostat settings.
3. Press [FAN] and select “On”. The fan should come on.
4. Press [FAN] and select “Auto”. The fan should go off.
5. Set the Mode to "Heat". Raise the desired heat setting above the current temperature. Ensure that the
heating unit comes on. Set the mode to "Off". Ensure that the heating unit goes off.
6. Set the Mode to "Cool". Lower the desired cool setting below the current temperature. Ensure that the
cooling unit comes on. Set the mode to "Off". Ensure that the cooling unit goes off.
The RC-2000 thermostat is designed to work with most single state conventional 4-wire HVAC systems
(without a transformer common). However, if the RC-2000 “resets” when calling for heat or cool, or if the
heat, cool, or fan relay cannot supply 15mA to power thermostat without the relay activating, the transformer
common wire or the HAI Thermostat Power Supply Module (Part Number: 30A00-1) is required.
