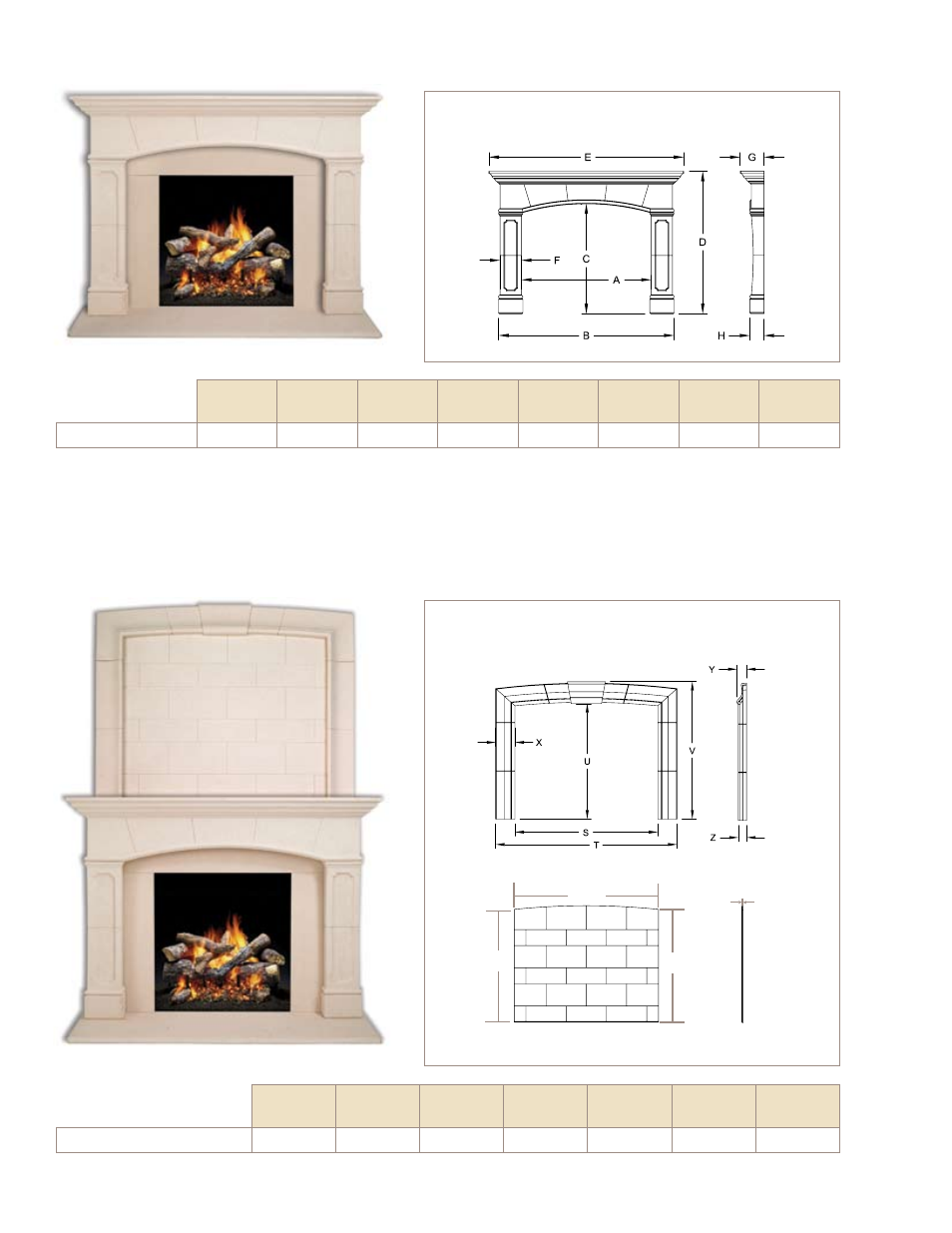

Specifications
MANTEL & STONE SPECIFICATIONS
AvAlon mAnTel wiTh CAST fACing
FRONT SIDE
A
opening
widTh
B
ouTSide
widTh
C
opening
heighT
d
ouTSide
heighT
e
Top
widTh
f
leg
widTh
g
Shelf
depTh
h
leg
depTh
avalON 52" 70-1/4" 44" 57" 78" 8-1/2" 9-1/2" 5-5/8"
Specifications
MANTEL & STONE SPECIFICATIONS
AvAlon mAnTel And CAST fACing wiTh overmAnTel
AvA l o n with overmantel
S
opening
widTh
T
ouTSide widTh
u
opening
heighT
v
ouTSide
heighT
X
leg
widTh
Y
Shelf
depTh
Z
leg
depTh
avalON OvERmaNTEl 52" 66" 42" 50" 7" 3-1/2" 3"
AvA l o n
OvERmaNTEl FRamE SIDE
OvERmaNTEl paNEl
SIDE
1/2"
42" 43-1/2"
53-3/4"
dimensions on all drawings are in inches and for reference only. please refer to installation manual for detailed specifications on installing this product.
