A13 a16 – Hunter Fan 81030 User Manual
Page 6
43043-01 01/24/2008
6
A
3 Pin
2 Pin
Fan Motor
Light
Light
Green
Black
Black
White
Black
Black
White
White
Bare Copper
Ground
A14
Main Switch 1 (AC In)
Switch 2 (AC In)
*Option Fan & Main Light Together
*Option
A13
A16
Connect 4” duct and vent to the outside. Tape joints.
If ducting does not fit securely, an adapter may need
to be purchased.
A15
E
F
G

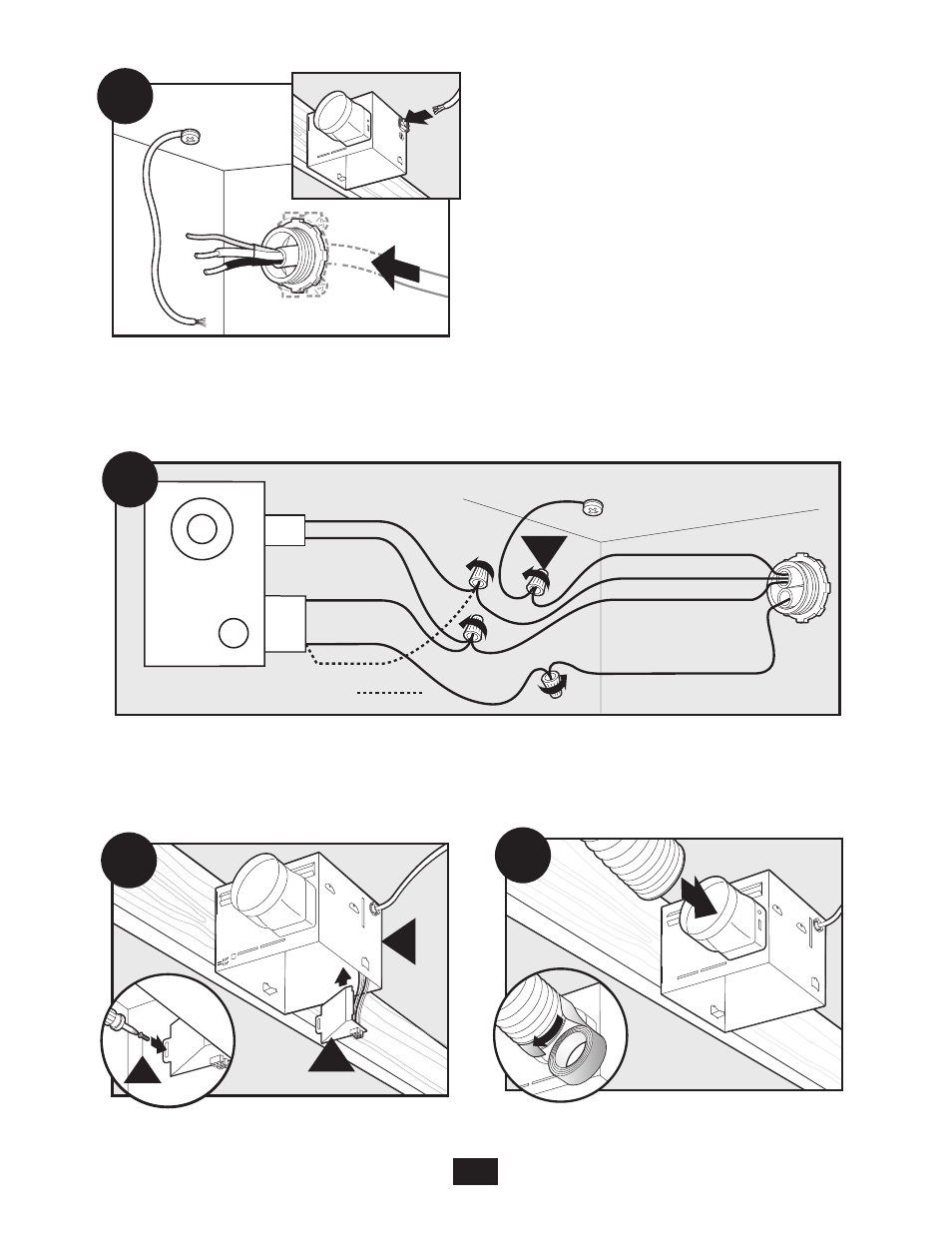

Install the wiring cover plate. Make sure all
wiring connections are inside the box or under
the wiring cover plate.
Connect wires as shown.
pull wires through the strain relief.
