43043-01 01/24/2008
18
E6
E8 E7
M

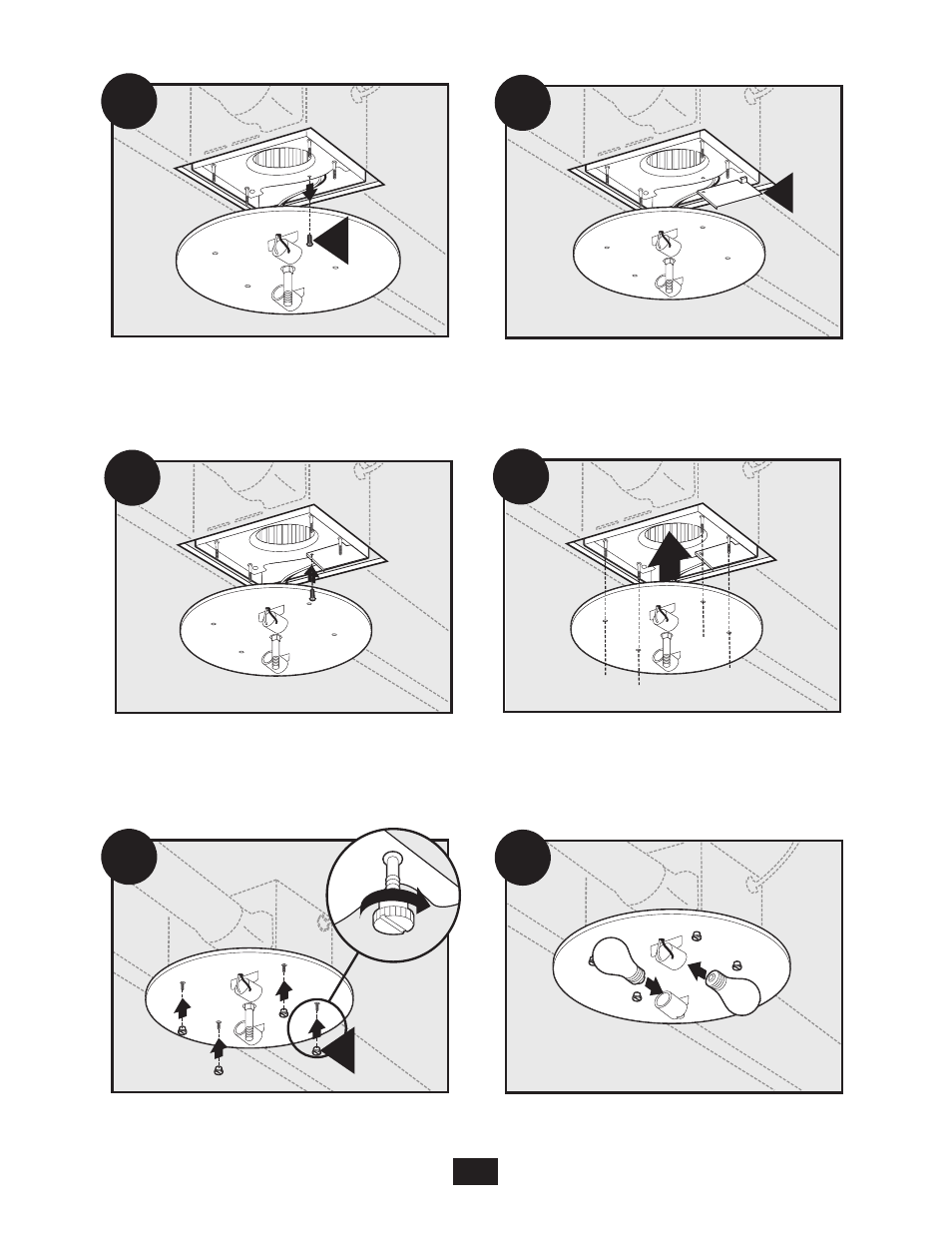

Attach thumbscrews.
WARNING: To reduce the risk of electrical shock,
all 4 thumbscrews MUST be properly installed.
Install 2 Max 60 Watt A15 bulbs (Not Included).
E4
J
E5
Align posts A, B, C and D (stamped into motor housing)
with posts A, B, C and D (stamped into light fixture).
Slide light fixture over posts.
Remove the strain relief bracket screw. position the strain relief bracket under the motor as
shown.
Insert the strain relief bracket’s dog-leg tab so that it
hooks over the lip of the motor. Reinstall the strain
relief bracket screw.
E3
K
