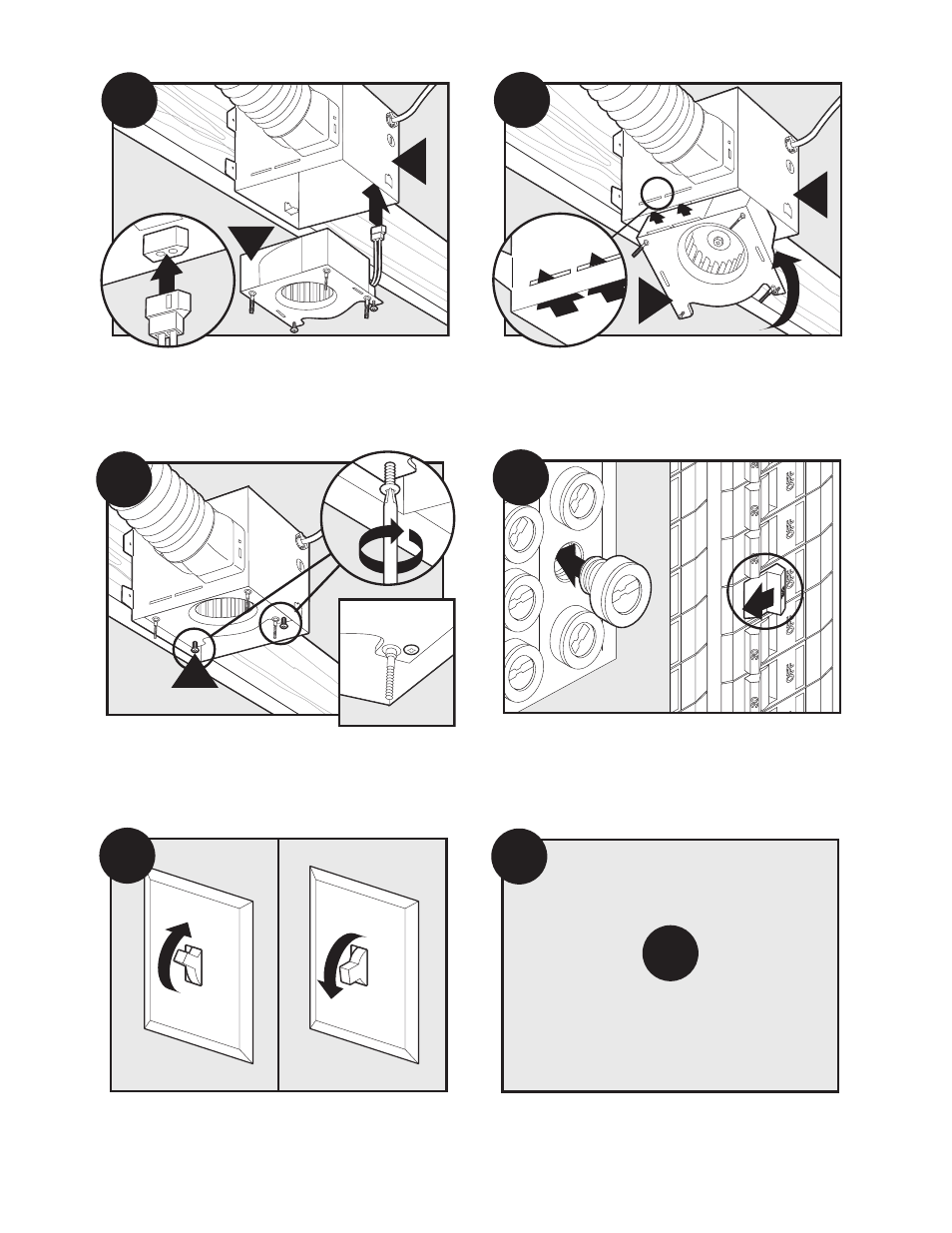

Connect wiring from the motor to the wiring cover plate.

Reinstall the motor by inserting the tabs and pushing up

into position. Make sure the wires are not pinched between

the motor and the housing.

Secure the motor by tightening the 2 screws.

Turn on the power source.

Test the motor. If the motor does not run,

check the plug connection.
