D
E
F
B16
A
3 Pin
2 Pin
Fan Motor
Light Light
Green
Black
Black
White
Black
Black
White
White
Bare Copper
Ground
B15
Main Switch 1 (AC In)
Switch 2 (AC In)
*Option Fan & Main Light Together
*Option
D
B17
0000
G
D
B18

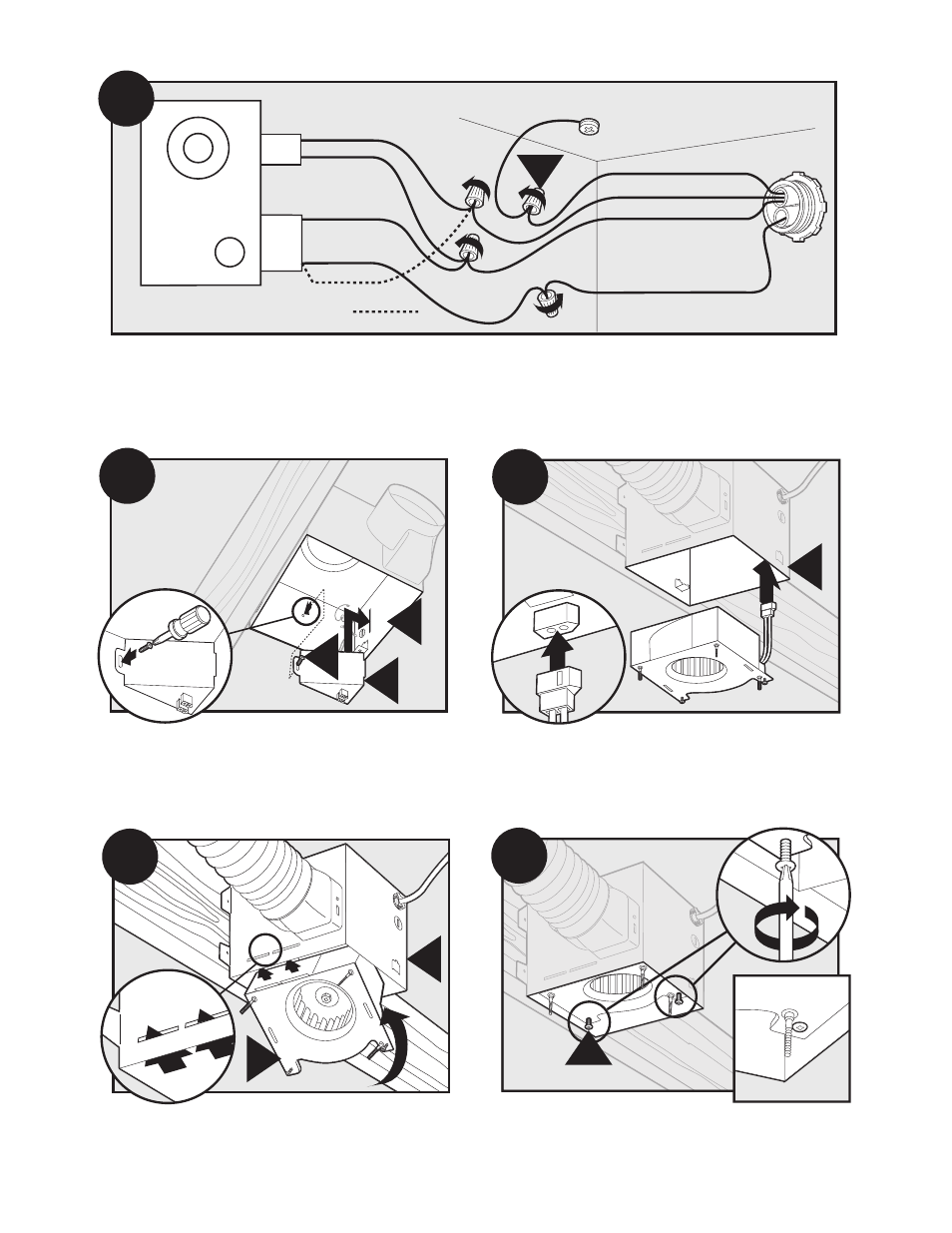

Install the wiring cover plate. Make sure all wiring
connections are inside the box or under the wiring
cover plate.
Connect wiring from the motor to the wiring cover plate.
Reinstall the motor by inserting the tabs and pushing up
into position. Make sure the wires are not pinched between
the motor and the housing.
11
H
B19
Secure the motor by tightening the 2 screws.
Connect wires as shown.
