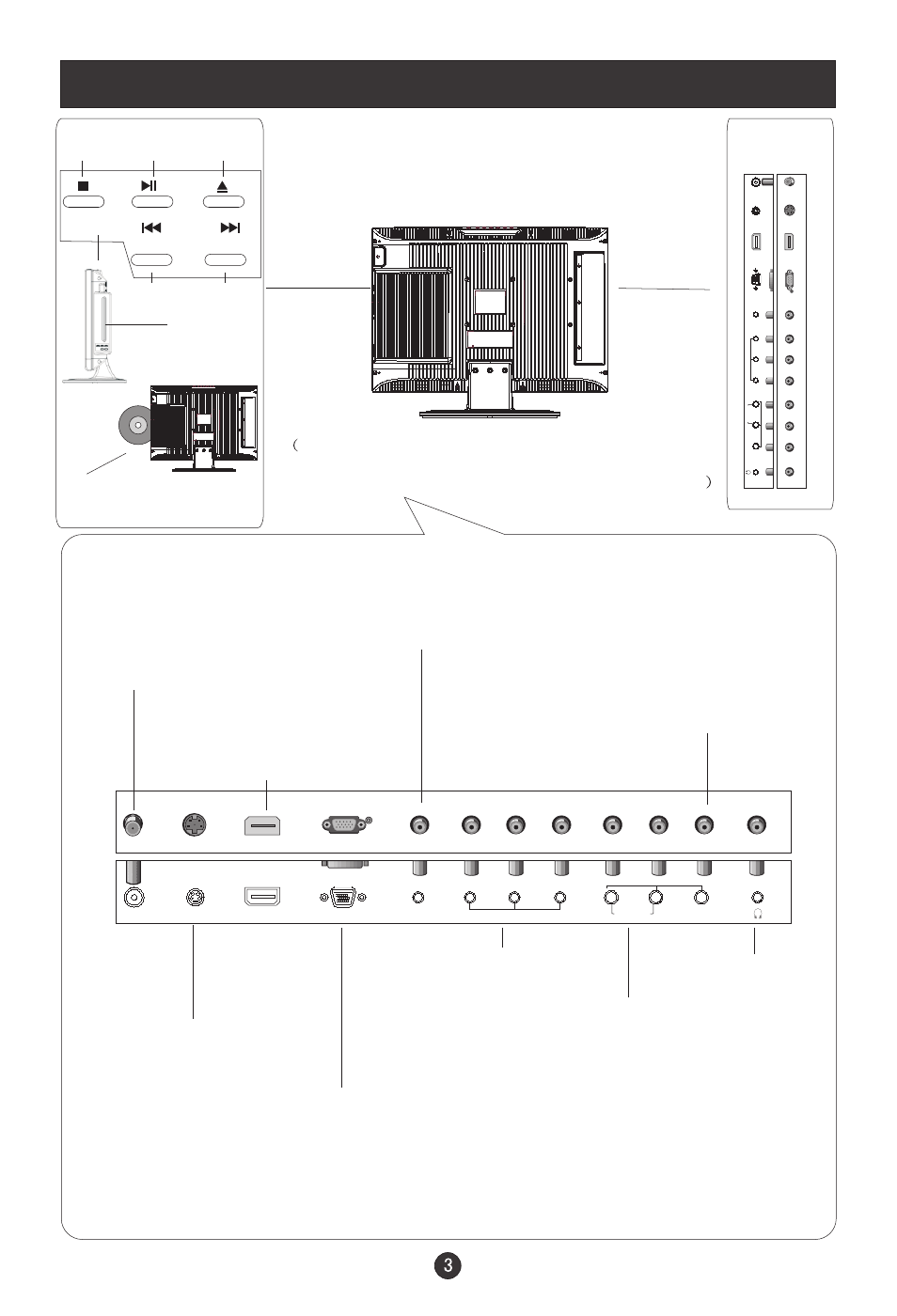

Connection Options
The above figure is for reference only, connections
may differ depending upon the models and terminals
of some models may be on the back bottom of the set
DVD
STOP PLAY/PAUSE OPEN/CLOSE
PREV
NEXT
DVD insert
Please see the real set
of the DVD position
Video Input
Connect video output
from an external
device to this jack
PC Audio Input
Connect the audio
output from the pc
to the PC audio input port
Connect cable or
antenna signals to
the TV, either direc-
tly or through your
cable box.
VGA Input
Connect to the VGA
15PIN analog output
connector of a PC
graphics card to use set
as a PC display
Component Input
Connect a component
video device to
these jacks
AV/S-VIDEO/
COMPONENT Audio
Input
Connect audio output
from an external device
to these jacks
Headphone
Antenna Input
S-Video Input
Connect S-Video out
from an S-Video device
to the jacks.
ANT IN
S-VIDEO
VGA IN
PC AUDIO IN
AUDIO IN
R
L
VIDEO IN
V
HDMI
COMPONENT IN
Pr/Cr
Pb/Cb
Y
HDMI Input
Connect to HDMI
output of other
equipment
