200/83 kHz Split Sonar View
Split Sonar View displays sonar returns from the 83 kHz wide beam on the
left side of the screen and displays sonar returns from the 200 kHz narrow
beam on the right side of the screen. Depth is always displayed in the upper
left hand corner. You can use the Split Sonar View to make side by side
comparisons between the sonar returns from the 83 kHz wide beam and the
200 kHz narrow beam.
The digital readouts in the Split Sonar View cannot be customized; therefore,
information such as water temperature and voltage are unavailable in the Split
Sonar View.

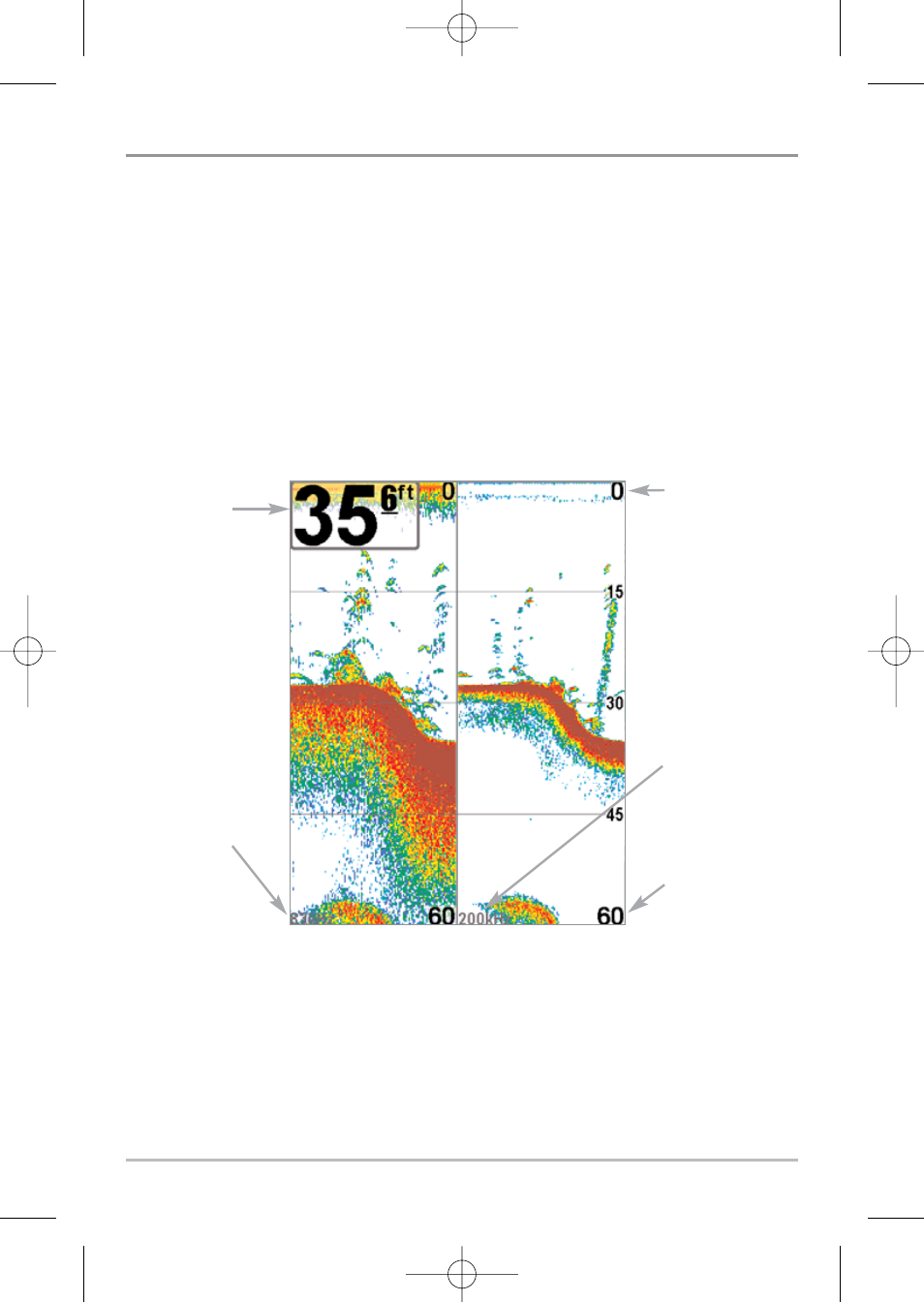

200/83 kHz Split Sonar View
Depth
83 kHz
Sonar
History
Window
200 kHz Sonar
History Window
Upper Depth
Range
Lower Depth
Range
