INTRODUCTION TO SPARE PARTS
6

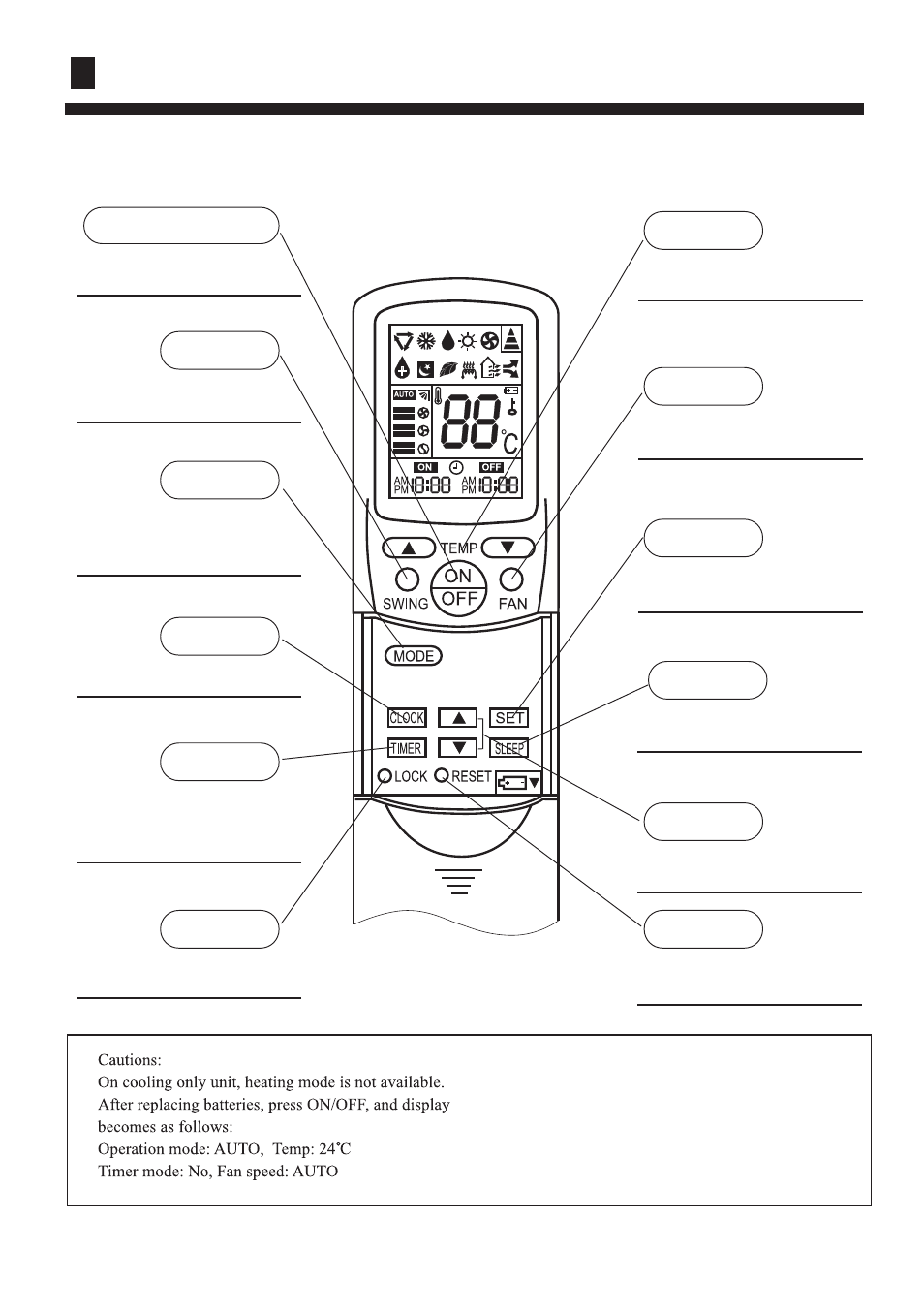

Buttons and display of the remote controller.
Operation
CLOCK
MODE
SWING
Power ON/OFF
TEMP
FAN
SLEEP
SET
HOUR
RESET LOCK
TIMER
Used for unit start and
stop.
Used to set auto fan
direction.
Used to select AUTO run,
COOL,DRY,HEAT and
FAN operation.
Used to set correct time. Used to set correct time.
Used to select
TIMER ON, TIMER OFF,
TIMER ON/OFF.
Used to lock buttons
and LCD display.
Used to reset the controller
back to normal condition.
Used to set clock and
timer setting.
Used to confirm Timer
and Clock settings.
Used to select sleep
mode.
Used to select fan speed:
LO, MID, HI, AUTO
Used to select your
desired temp.
Note:
1. The above information is the explanation of the
displayed information therefore varies
with those displayed in actual operation.
2. This type only has the relevant function and
display as indicated in the above figure.
