ASSEMBLY

M0412a-0920

ASSEMBLY

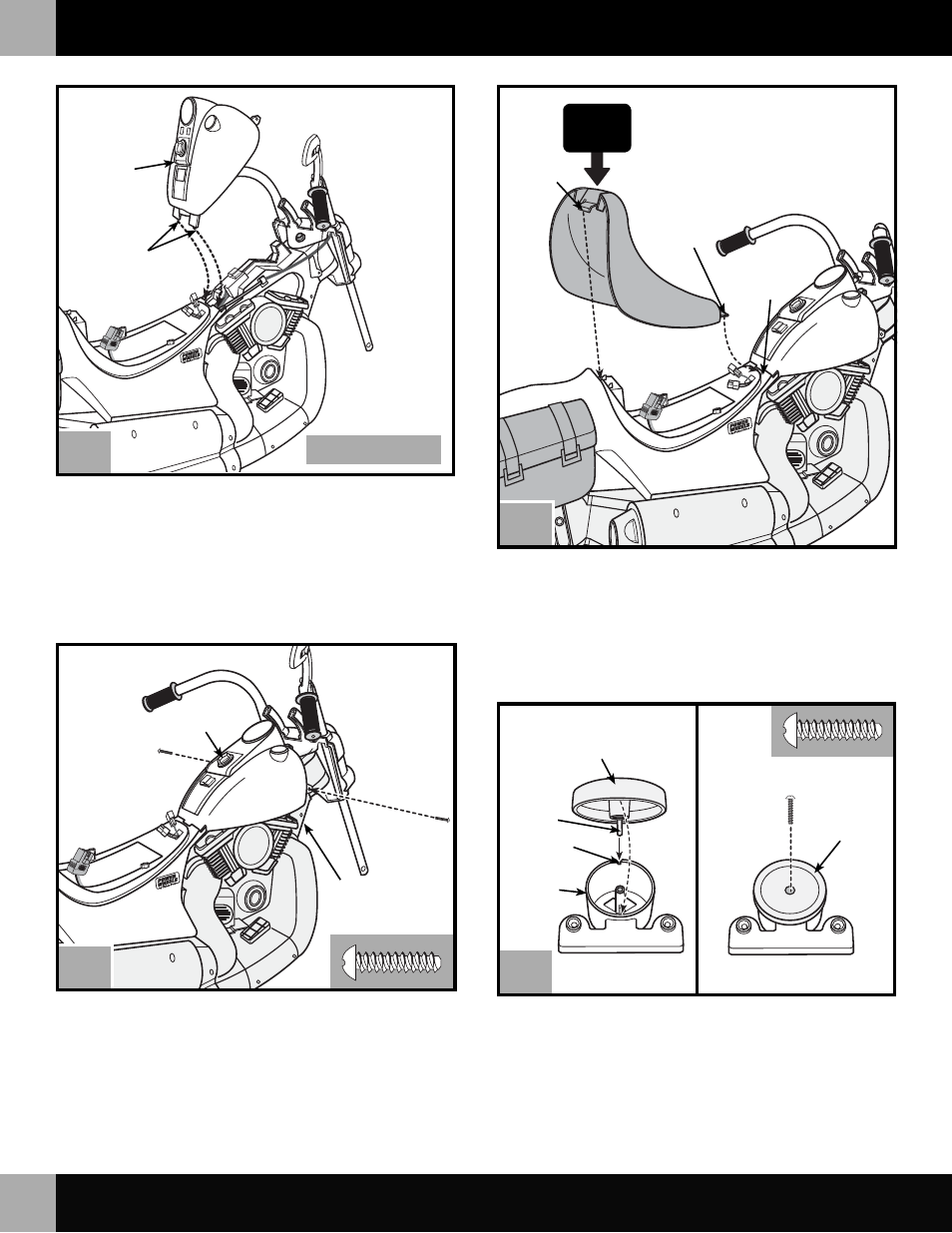

• Balance the sound box on the vehicle body. (The speaker should

face down.)

• Fit the tabs at the bottom of the tank under the front end of the

vehicle body.

• Lower the tank on the vehicle frame, making sure that the two

small square openings in the tank fit over the buttons on the
sound box.

Tabs

Tank

Right Side View

• Fit the tab on the front of the seat into the slot near the tank.
• Push down firmly near the back of the seat to “snap” it to

the vehicle.

Hint: You will need to remove the seat to access the high speed
connectors and to charge the 12 volt battery. To remove the seat,
press the tab at the back of the seat and lift.

Slot

Seat Tab

PUSH

HERE

• Insert a #8 x ¾" screw through the hole in each side of the tank

and tighten.

Tank

Vehicle
Frame

• Fit the tachometer cover onto the tachometer housing. The

tab on the tachometer cover should fit into the notch in the
tachometer housing.

• Insert a #8 x ¾" screw into the tachometer cover and tighten.

Tachometer
Housing

Tab

Notch

Tachometer
Cover
