Description of Air Filtration System
Display and Control Keys
The display and control keys allow for easy operation of the air purifier.
UP/DOWN KEYS: Adjusts the blower speed and turns the unit on and off.
PRE-FILTER RESET: Resets the Carbon Pre-Filter Life Counter.
FILTER RESET: Resets the HEPA Filter Life Counter.
IONIZER KEY: Turns the ionizer on and off.

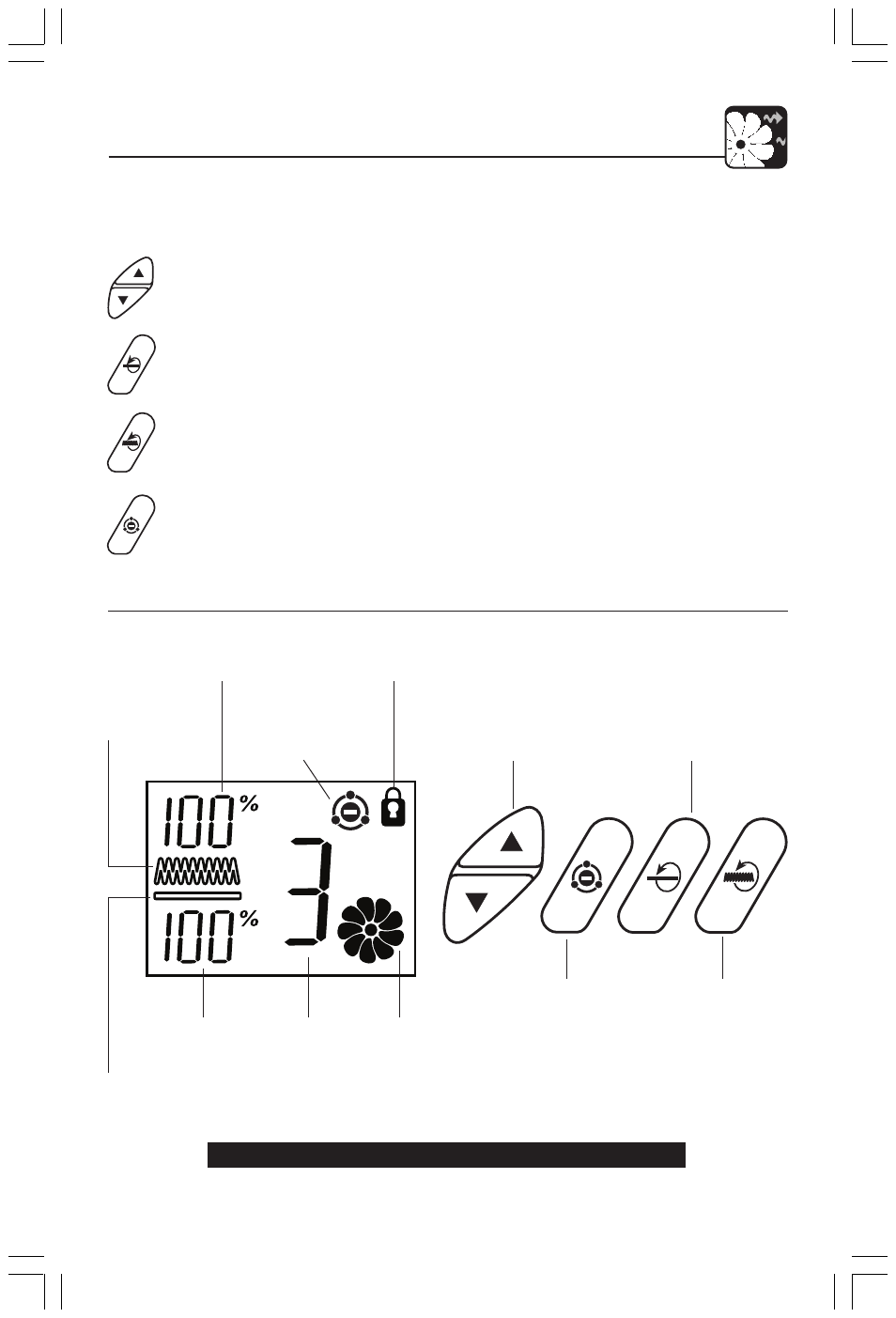

Fig. 4 - Air Purifier Alpha-numeric Display and Control Area
HEPA FILTER LIFE
COUNTER
IONIZER
INDICATOR
KEYPAD LOCKED
INDICATOR
UP/DOWN
KEYS
IONIZER
KEY
PRE-FILTER
RESET KEY
FILTER
RESET KEY
ANIMATED
BLOWER BLOWER
SPEED PRE-FILTER
LIFE COUNTER
HEPA FILTER
INDICATOR
CARBON PRE-FILTER
INDICATOR
