41913-01

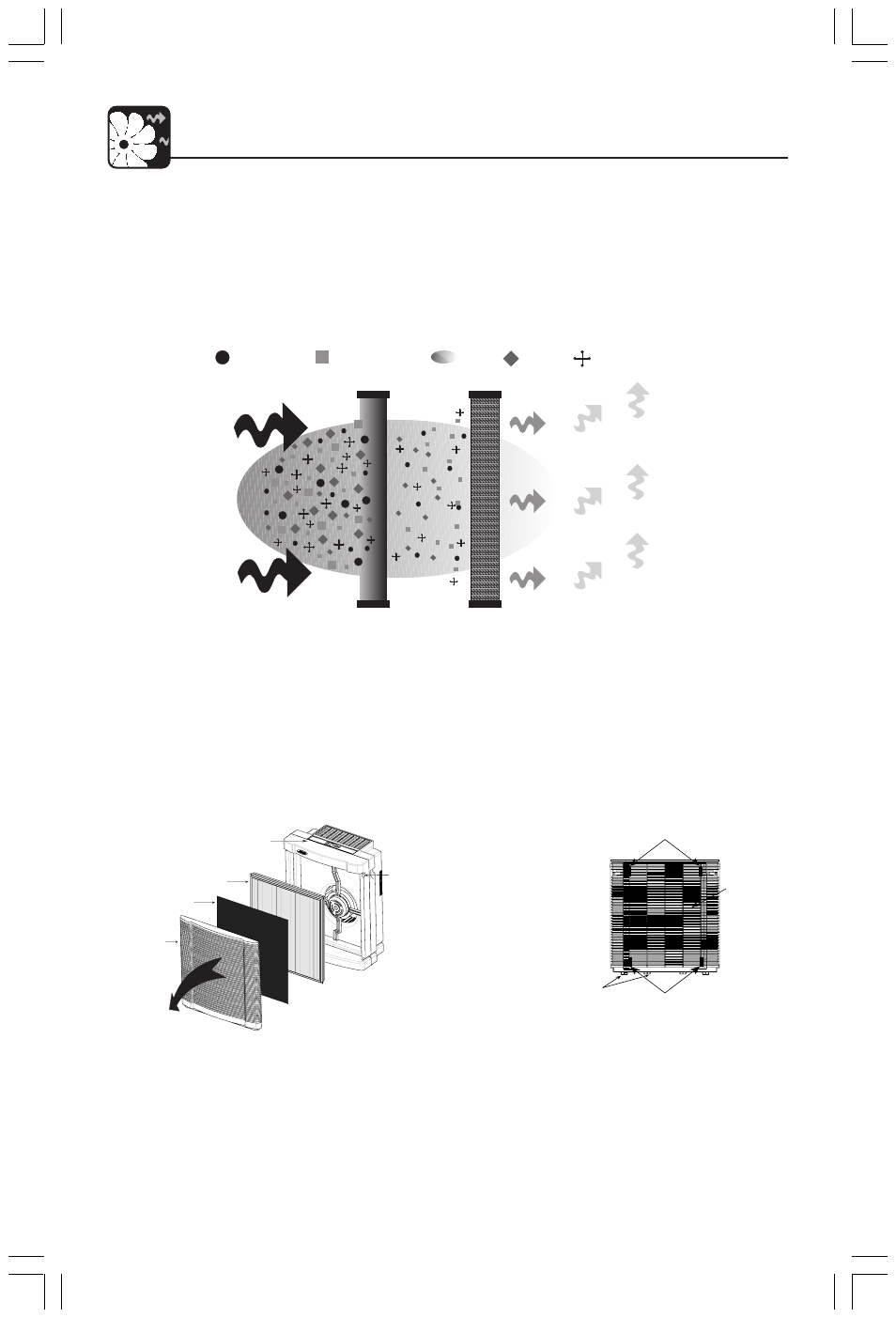

Description of Air Filtration System

;

;;

;

;;

;

;;

;

;;

;

;;

;

;;

;

;;

;

;;

;

;;

;

;;

;

;;

;

Air Purifier Components

Fig. 1 - Illustration of the Air Filtration System

How the

QuietFlo

Air Purification System Works

As the air is pulled into the purifier, the activated carbon pre-filter absorbs odors and catches
large particles. Then, the air travels through the HEPA filter where the smaller particles are
collected. Then, the ionizer releases negative ions into the air that attract positively
charged dust, smoke, and pollen particles. Finally, the clean, purified air is released
back into the room.

Fig. 2 - Air Purifier Components

CONTROL AREA

HEPA FILTER

PRE-FILTER

RECESS FOR
FINGERS TO
PULL OPEN
FRONT GRILL

FRONT
GRILL

Fig. 3 - Inside Surface

of Front Grill

GRILL
VENTS

HOOK

TAPE

TABS

HOOK

TAPE

Dust & Irritants

Pollen & Allergens

Odors

Bacteria

Pet Hair & Dander

Carbon

Pre-Filter

True HEPA Filter

99.97% – .3 Microns
