03/04 P/N 21447703
9

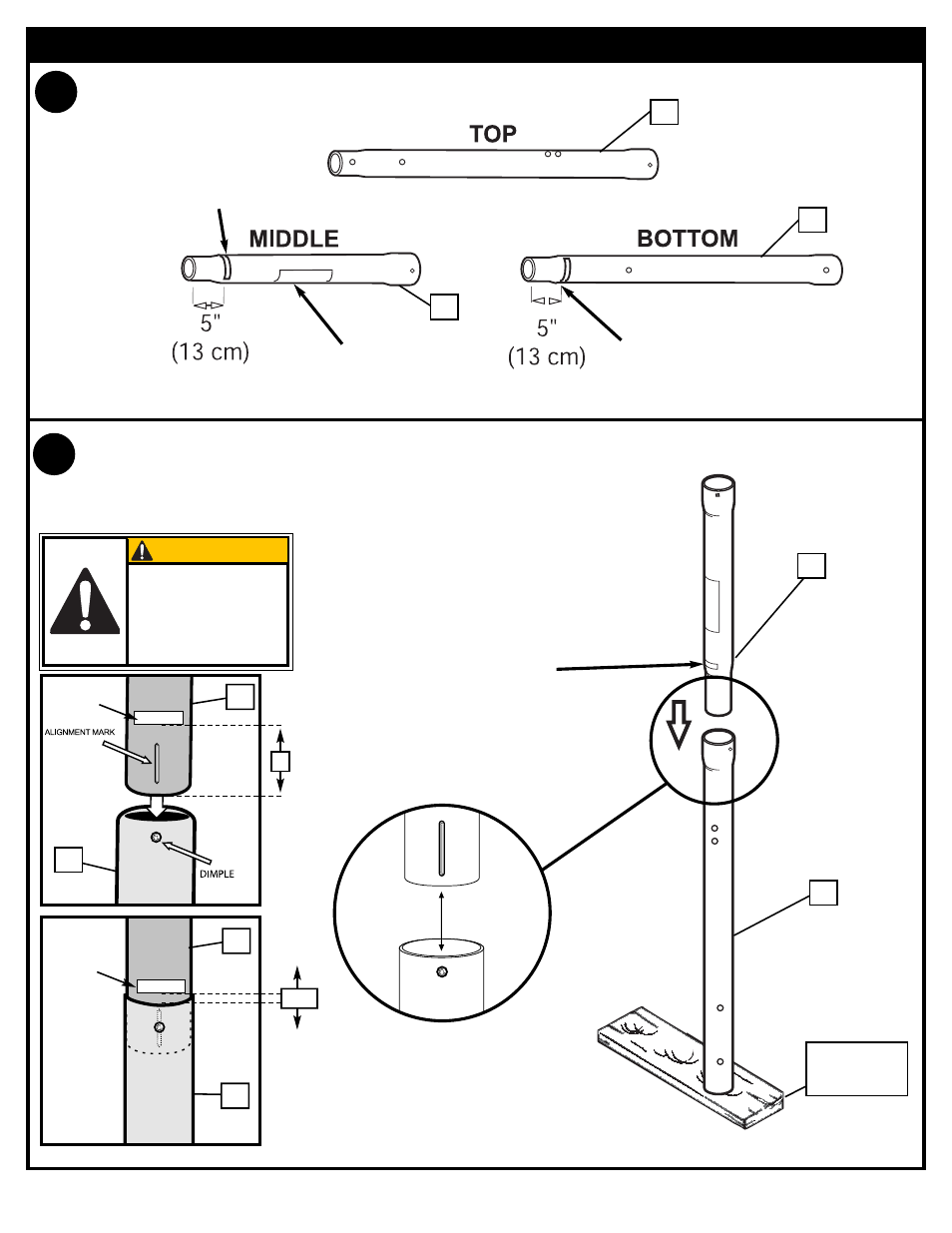

SECTION A: ASSEMBLE THE POLES
2.
WARNING
LABEL
2
1
3
Pole Identification Sticker
Pole Identification Sticker
1. Correctly identify each pole section. Poles have an identification sticker that will be used as a
reference point in the next step.
WOOD SCRAP
(NOT SUPPLIED)
2
1
Pole
Identification
Mark
5"
1-1/2"
1
2
2
1
Align dimple of top pole with slot of middle pole. While maintaining
alignment, bounce middle pole (2) into top pole section (1) using a
wood scrap as shown until top pole no longer moves toward pole
identification mark on middle pole.
THE IDENTIFICATION STICKER IS
LOCATED 5" FROM THE END OF
THE POLE. WHEN PROPERLY
POUNDED TOGETHER, THE POLE
SECTIONS SHOULD HAVE A 3-1/2"
MINIMUM OVERLAP, LEAVING 1-
1/2" BETWEEN THE OVERLAPPING
POLE AND THE IDENTIFICATION
STICKER.
CAUTION!
middle pole
IDENTIFICATION
STICKER
middle pole
IDENTIFICATION
STICKER
