Huffy DOLPHIN 7900 - Manual (Page 12)

12
P/N 21447703 03/04
11
15
10
2.

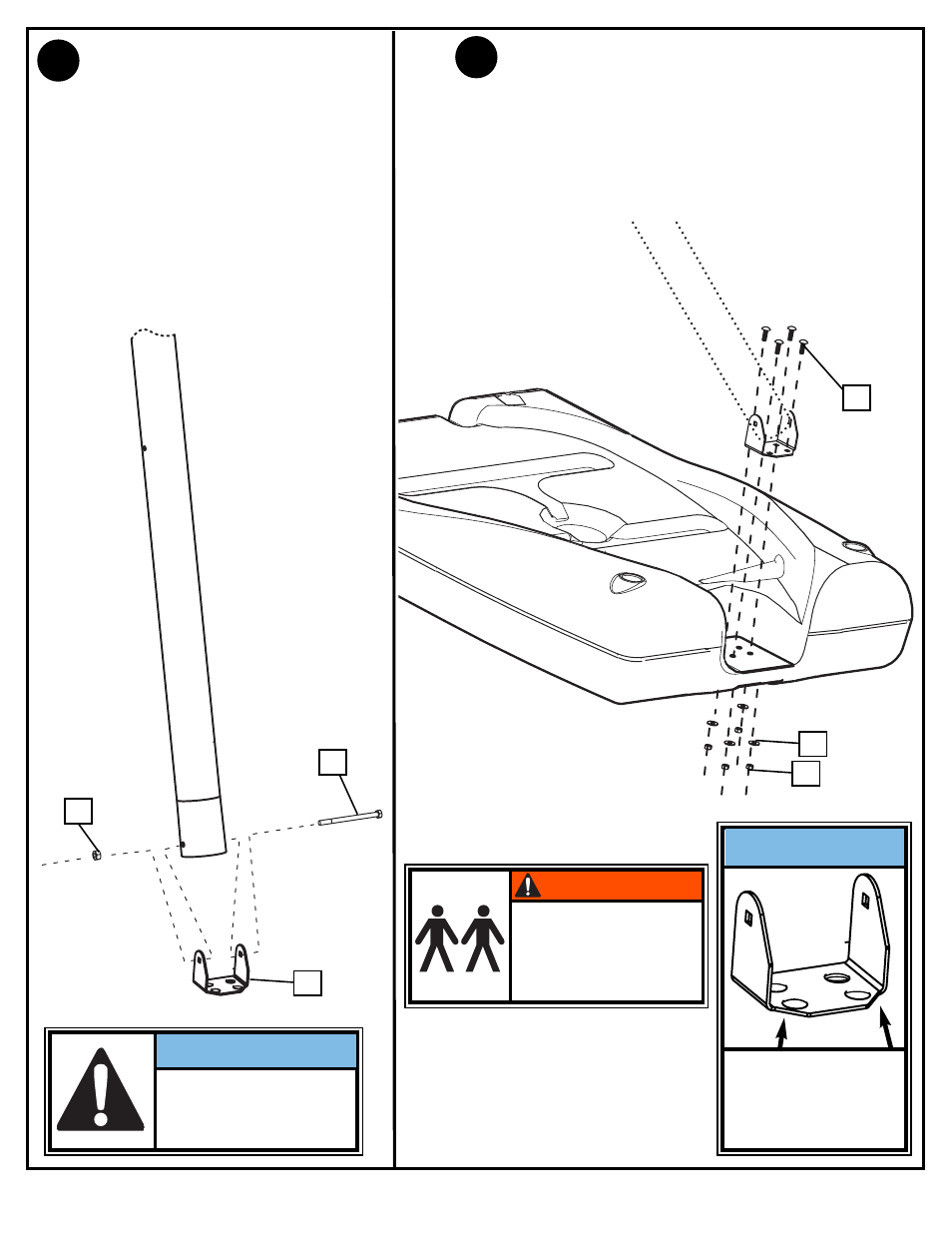

Attach pole assembly to base using
carriage bolts (15) washers(10) and nuts
(11) as shown. Two people are required
for this step.
1.
Assemble pole bracket (12)
using bolt (13) and locknut
(14) as shown.
13
12
14
IMPORTANT!:
DO NOT OVER
TIGHTEN
THE CUT CORNERS OF
THE POLE BRACKET
NEED TO FACE
TOWARD THE BACK OF
THE BASE AS SHOWN.
IMPORTANT!:
TWO PEOPLE REQUIRED
FOR THIS PROCEDURE.
FAILURE TO FOLLOW THIS
WARNING COULD RESULT IN
SERIOUS INJURY AND/OR
PROPERTY DAMAGE.
WARNING!
