Hayter Mowers Jubilee 424V - Manual (Page 2)

Engine Briggs & Stratton Quantum XM 45
Engine type 127802-2005-E1 (422N/423N) 127802-2004-E1 (424N)
Engine/Cutterbar speed 2900 rpm
Fuel type Unleaded petrol
Fuel capacity 1.5 litres
Oil type SAE 30 engine oil
Oil sump capacity 0.6 litres
Cutting width 430mm (422N) 480mm (423N/424N)
Cutting height 19 - 70mm
Overall dimensions 1,430 x 550 x 1,050mm (422N/423N) 1,550 x 550 x 1,050mm (424N)
Dry Weight 27.7Kg (422N) 29.9Kg (423N) 30.4Kg (424N)

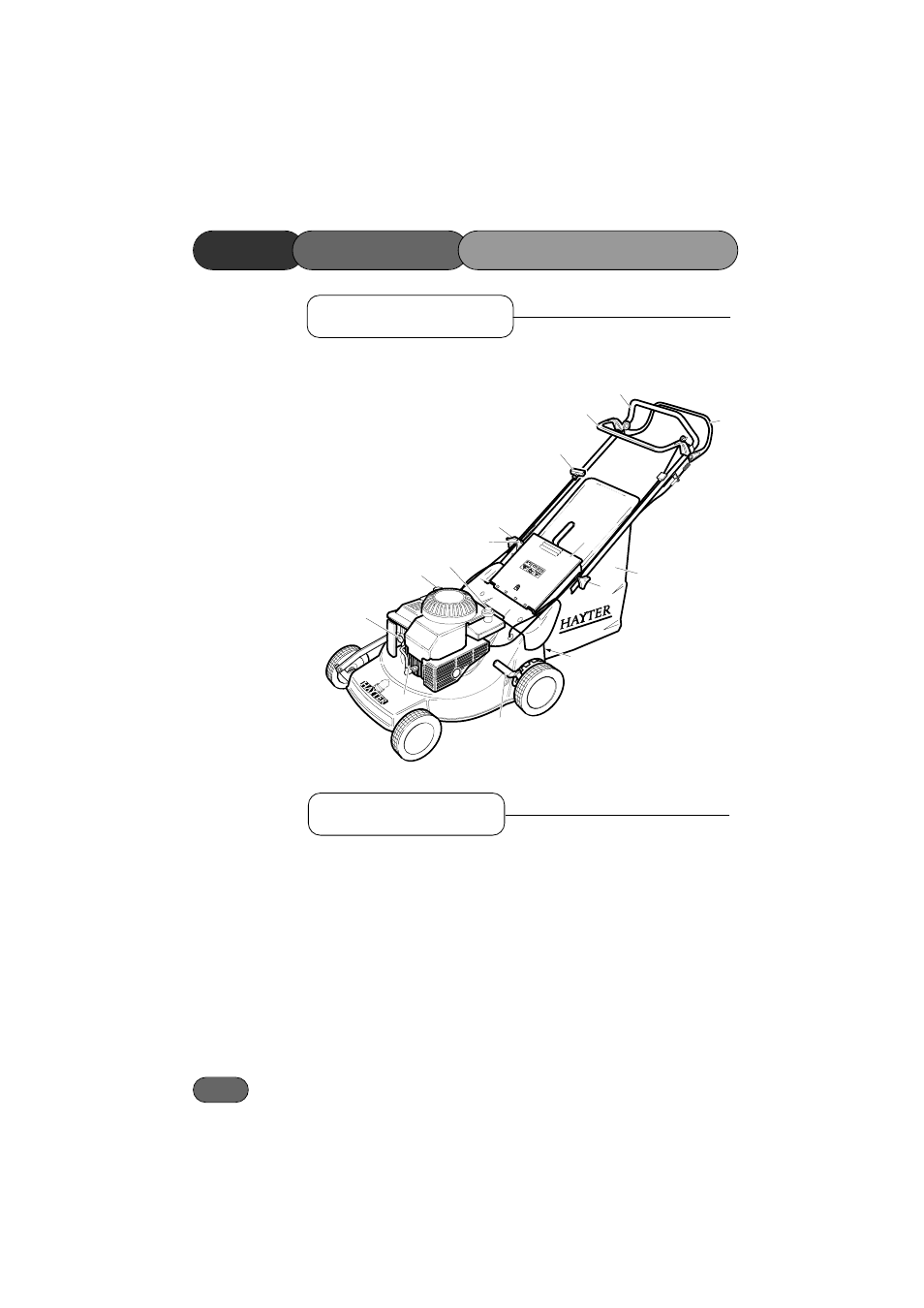

1. Primer Bulb.
2. Fuel Filler Cap.
3. Oil Filler Cap and Dipstick.
4. Handlebar Securing Knob.
5. Rope Guide.
6. Engine Start-Grip.
7. Engine Stop lever.
8. Handlebar.
9. Ground Drive Clutch Lever (Auto drive only).
10. Rear Deflector.
11. Grassbag Assembly.
12. Serial Number Decal.
13. Height of Cut Adjuster.
14. Spark Plug Lead.
1D42205A
305113
4
8
9
11
10
12
13
14
1
2
3
4
5
6
7
MAIN FEATURES / SPECIFICATIONS
1.2
Main Features
Specifications
