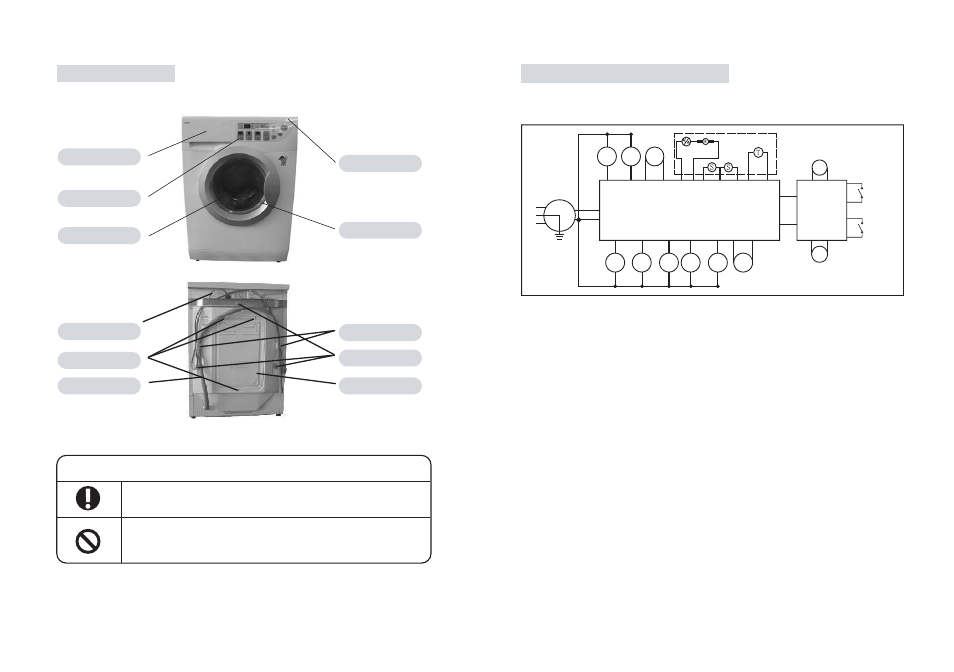

Names of parts
Detergent dispenser
Operation panel
Glass porthole
Power supply cable
Back plate screw(3)
Drainage hose
Table cover
Washer door
Drainage hose clip
Packing bolt(3)
Back plate
This diagram may vary slightly with the layout of the washing machine you have just
purchased due to technical inprovements.
Caution and warning symbols
For your safety, any instructions in this manual with this "Warning"
sign must be followed strictly.
For your safety and to prevent damage to the washing machine, any
instructions in this manual with this "Stop" sign must be followed
strictly.
Electronic system diagram
A:heater1 B:heater2(for drying) C:door engine(Micro-delay door switch)
D:water inlet electromagnetic valve for pre-washing H ġdrying fan motor G:pump
E:water inlet electromagnetic valve for main washing I:water level sensor
F:water inlet electromagnetic valve for drying J:water temprature sensor
K:drying temprature sensor
17
L
G
N
interference
eliminator
N
N
CNI CNJ CNG CNH
CNA-2
CNA-1
(L)
(N)
A B C
A1 A2 A3 A4 A5 JA7 JA8
CNB CNC CND CNE CNF CN3-1 CN3-2
Driving Computer Board Line
Controlling
Computer
Board
close
switch
lock
switch
D E F G H I
Motor
J
K
