The strongest in the industry, Quadra-Fire provides a
limited lifetime warranty on gas-burning products for their
most important aspects: firebox and heat exchanger.
For full warranty details go to www.quadrafire.com
A Side of stove top to side wall ................... 6"
A In an alcove .......................................6-3/4"
B Rear of control box to back wall............... 2"
C Flue pipe to back wall .............................. 6"
D Flue pipe to side wall ..............................14"
E Rear corner of stove top to side wall ........ 2"
F Min. floor to ceiling height (std. room) .. 84"
G Top of stove to alcove ceiling ................. 19"
H Maximum alcove depth ......................... 36"
I Minimum alcove width ......................... 36"
Width ................................ 22-1/2"
Height ............................... 28-1/2"
Depth ................................ 18-3/4"
Shipping Weight ................165 lbs.
Flue Size ..............................6-5/8"
Standing Pilot Ignition .............. Yes
Mobile Home Approved ........... Yes
Bedroom Approved .................. Yes
Heating Capacity ............................................................ Up to 1,500 sq. ft.*
Btu/Hour Input NG ..............................................................21,000 – 30,000
Btu/Hour Input LP ...............................................................24,000 – 30,000
Efficiency** NG .............................................................................up to 82%
Efficiency** LP ...............................................................................up to 85%
Convection Blower ...........................................................................160 cfm
An ordinary room becomes an inviting living space with the
Columbia Bay from Quadra-Fire. Bay window styling, with your
choice of black, gold or satin-nickel trim, adds just the right touch
of class. Curl up in front of the fire and let the warmth and glow
melt away the hassles of the day. High efficiency and great
performance keep your heating bills down. And for even more
convenience, add a thermostatic remote control.
The TrueGlow Burner, an exclusive
from Quadra-Fire, sets a new
standard for realism. The ceramic
burner is molded from real wood
pieces and coals. Flames rise from
gas ports distributed throughout
the glowing coal bed and lower
logs, producing an incredibly
active and varied fire. No need
to hide the burner anymore—the
TrueGlow burner proudly takes
center stage, with an appearance that
is phenomenal, whether it’s burning or not.
22-1/2
28-1/2 28-1/2
16
18 - 3/4
17-7/16
16
5 7 - 3/4
11-1/4
22-1/2
A
B C
D
G -Alcove
F
H
E
E
NOT TO
SCALE
I
Classic black door •
Black rod grille •
Pedestal •
Bay window styling •
Variable speed blower •
Easy access top mounted controls •
Designer brick pattern firebox •
Durable steel construction •
Bedroom/mobile home approved •
No additional floor protection required •
Limited lifetime warranty •
Door crown in gold or satin nickel •
Rod grille in gold or satin nickel •
Richly detailed brick interior •
Thermostatic remote controls •
Shown with optional gold door
crown and gold rod grille
Shown standard black
Standard Features
Options
Quadra-Fire is a registered trademark of Hearth & Home Technologies. Product specifications and
pricing subject to change without notice. The Quadra-Fire Columbia Bay direct vent gas appliance
listed to ANSI standard Z21.88a-2000/CSA 2.33a-M00 Vented Gas Fireplace Heaters and applicable
sections of UL307b Gas Burning Heating Appliances for Manufactured Homes and Recreational
Vehicles, CAN/CGA 2.17-M91 “Gas Fired Appliances for Use at High Altitude,” by OMNI-Test
Laboratories, Inc., Beaverton, OR.
QDF-1008U-1108
IMPORTANT - READ BEFORE YOU INSTALL!
Refer to the Owner/Installation Manual for complete clearance requirements and specifications. The
images and descriptions in this brochure are provided to assist you in product selection only.
*Heating capacity rating is to be used as a guideline only. Actual performance may differ slightly due
to climate, building construction and condition, amount and quality of insulation, location of the
heater, and air movement in the room.
**Canadian: P.4.1-02 65.42% NG/65.96% LP.
Available From:

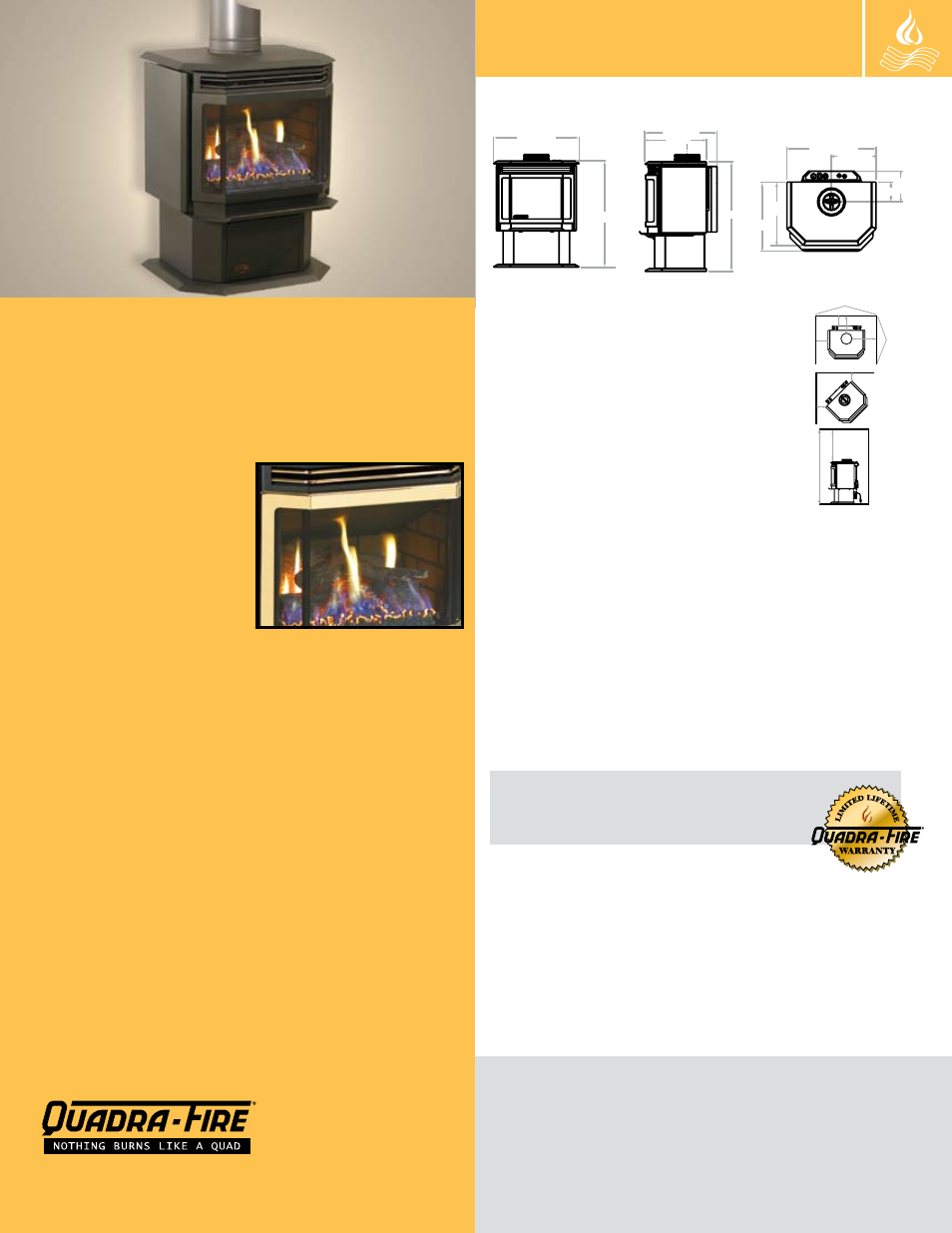

Dimensions
Clearances
Technical & Performance Data
COLUMBIA BAY
1445 North Highway, Colville, WA 99114
www.quadrafire.com • 800-926-4356
Cover photo: Columbia Bay shown with optional satin nickel
door crown and satin nickel rod grille
