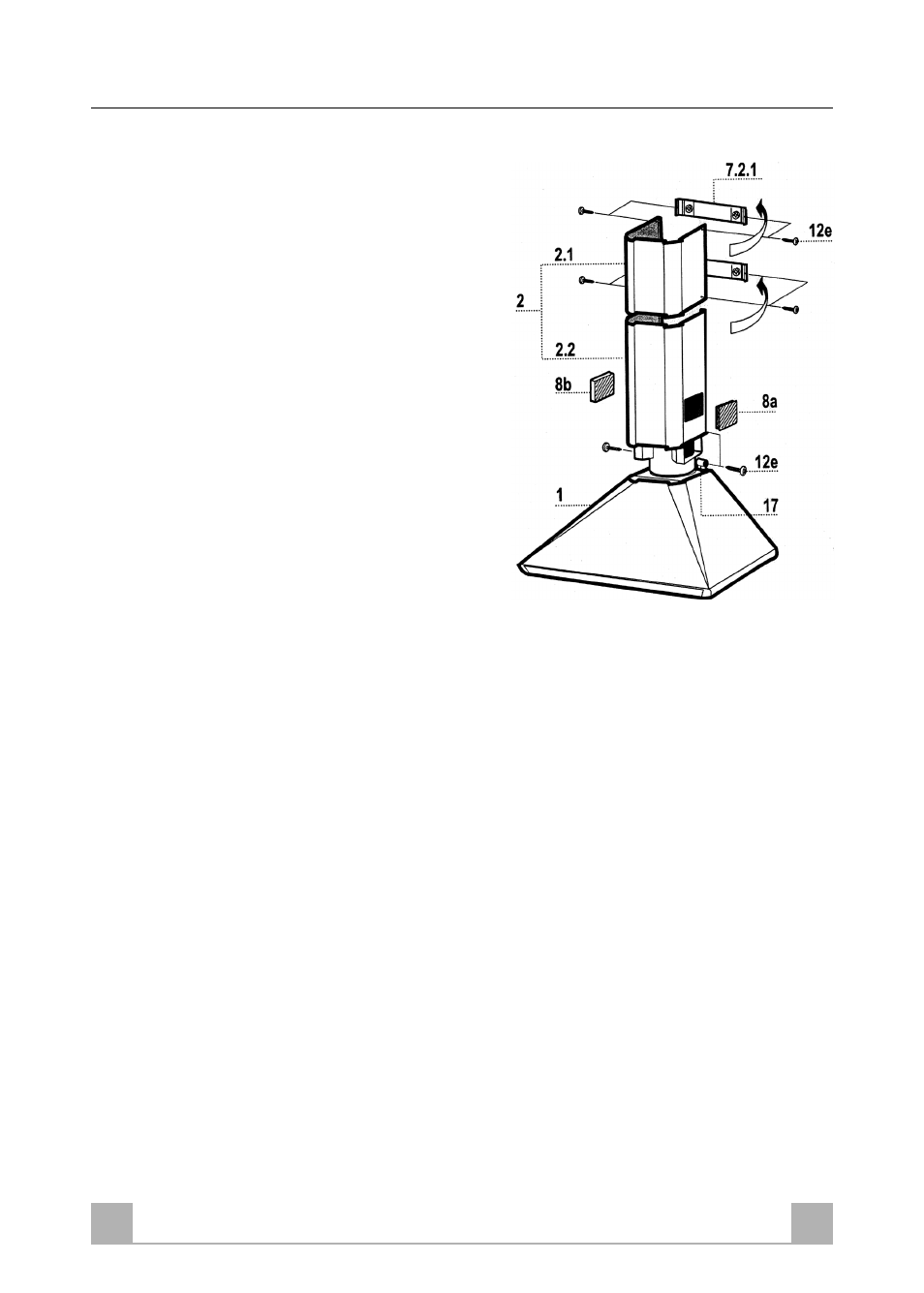

Chimney assembly
Upper chimney section
• Slightly widen the two sides of the upper
chimney and hook them behind the brackets
7.2.1, making sure that they are properly
housed.
• Secure the sides to the brackets using the 4
screws 12e supplied.
Lower chimney section
• Insert the lower chimney fixing bush
17 in the
top of the hood body and rotate it 90 ° clockwise
as far as it will go.
• Slightly widen the two sides of the chimney and
hook them between the upper chimney section
and the wall, making sure that they are properly
housed.
• Secure the sides of the bottom section to the
bushes provided using the 2 screws 12e
supplied.
• When installing the recirculation version, fit the
directional grills 8a-8b in their housing so that
the directional symbols are at the top and
towards the front of the hood. Ensure that they
are inserted correctly in the outlet connection
piece
15.
