INSTALLATION

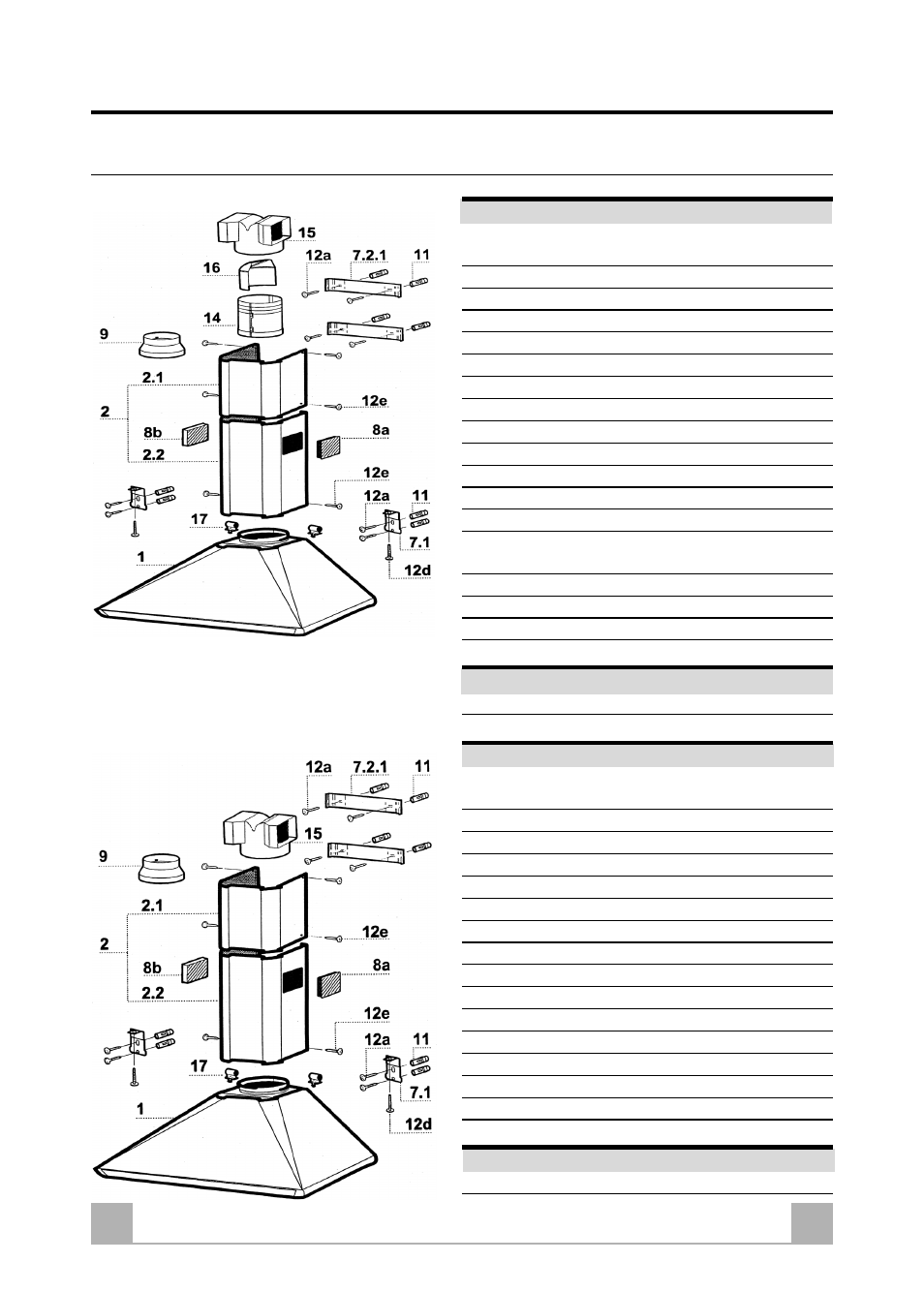

Components
Ref.
Qty Ducted Version
1
1
Hood Body, complete with: Controls, Light,
Blower, Filters
2
1
Telescopic Chimney comprising:
2.1
1
Upper Section
2.2
1
Lower Section
7.1
2
Hood Body Fixing Brackets
7.2.1
2
Upper Chimney Section Fixing Brackets
8a
1
Right Air Outlet Grill
8b
1
Left Air Outlet Grill
9
1
Reducer Flange ø 150-120 mm
11
8
Wall Plugs
12a
8
Screws 4.2 x 44,4
12d
2
Screws M4 x 25
12e
6
Screws 2.9 x 9.5
14
1
Hood Body Air Outlet Extension Piece
consisting of two half shells
15
1
Air Outlet Connection
16
1
Air Outlet Deflector
17
2
Lower Chimney Fixing Bush
Qty Documentation
1
Instruction Manual
Ref.
Qty Recirculation or Ducted Version
1
1
Hood Body, complete with: Controls, Light,
Blower, Filters
2
1
Telescopic Chimney comprising:
2.1
1
Upper Section
2.2
1
Lower Section
7.1
2
Hood Body Fixing Brackets
7.2.1
2
Upper Chimney Section Fixing Brackets
8a
1
Right Air Outlet Grill
8b
1
Left Air Outlet Grill
9
1
Reducer Flange ø 150-120 mm
11
8
Wall Plugs
12a
8
Screws 4.2 x 44,4
12d
2
Screws M4 x 25
12e
6
Screws 2.9 x 9.5
15
1
Air Outlet Connection
117
2
Lower Chimney Fixing Bush
Qty Documentation
1
Instruction Manual
