48

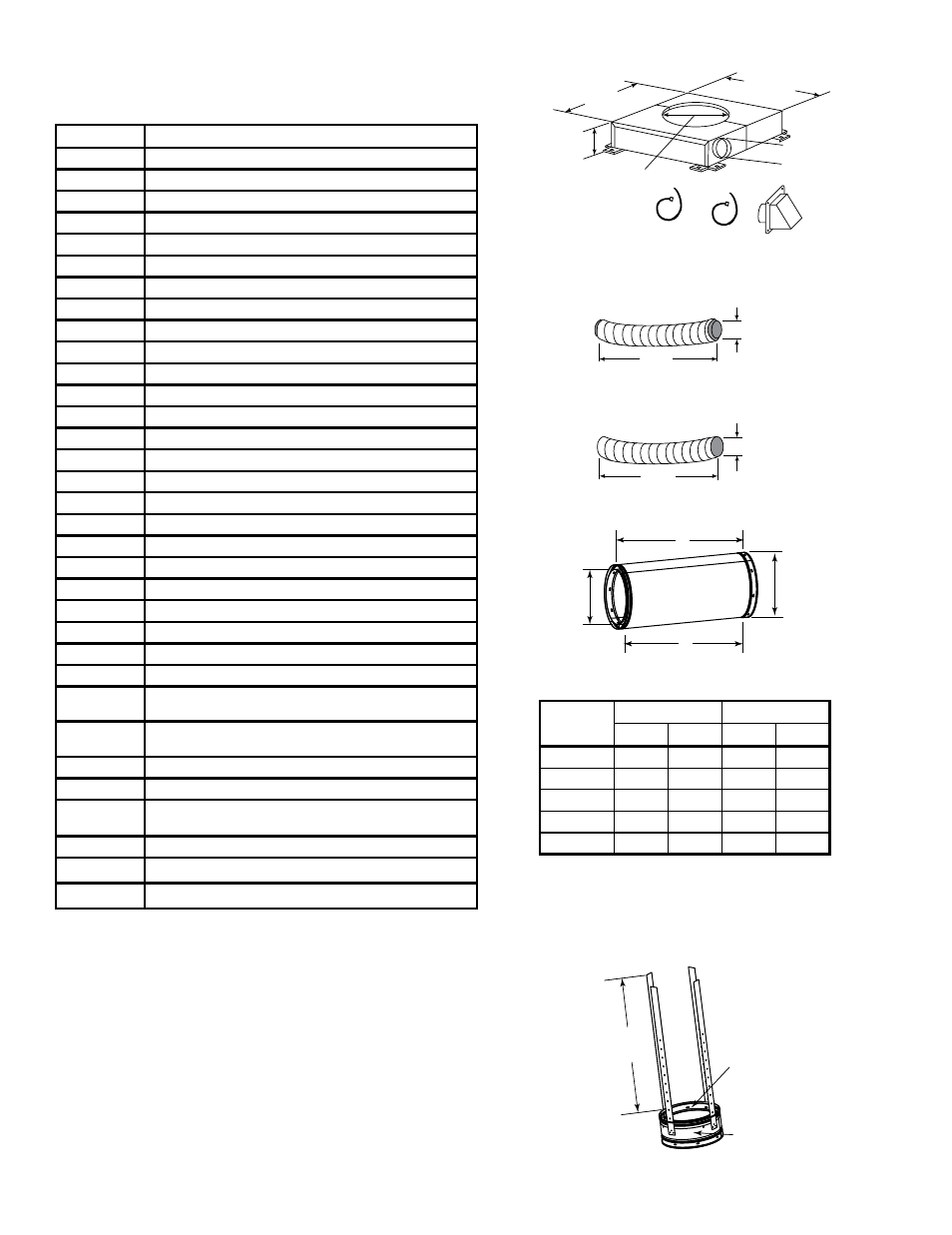

B. Chimney Components
The following pictures show only those chimney components
which may be safely used with this fireplace.
ID4 Insulated Duct
UD4 Uninsulated Duct
42 in.
(1067 mm)
4 in. (102 mm) i.d.
42 in.
(1067 mm)
4 in. (102 mm) i.d.
Heat & Glo • EXCLAIM-50 • 4013-041 • Rev AA • 7/12
Catalog #
A B
in mm in mm
SL1106 6 152 4-3/4 121
SL1112 12 305 10-3/4 273
SL1118 18 457 16-3/4 425
SL1136 36 914 34-3/4 883
SL1148 48 1219 46-3/4 1187
CAK5A Chimney Air Kit
SL11 Vent Stabilizer
Chimney Sections
A = Actual Length
B = Effective Length (length of
chimney part after it has
been snapped to another)
13 in.
(330 mm)
14 in.
(356 mm) 14 in.
(356 mm)
5-1/4 in.
(133 mm) 4 in. (102 mm)
A
11 in.
(279 mm)
13 in.
(330 mm)
B
Outside Diameter
13 in.
(330 mm)
Inside
Diameter
11 in.
(279 mm)
20-3/4 in.
(527 mm)
Catalog # Description
CAK5A Chimney Air Kit
ID4 Insulated Duct/Outside Air
UD4 Uninsulated Duct/Outside Air
SL1106 Chimney Section - 6 in. (152 mm) long
SL1112 Chimney Section - 12 in. (305 mm) long
SL1118 Chimney Section - 18 in. (457 mm) long
SL1136 Chimney Section - 36 in. (914 mm) long
SL1148 Chimney Section - 48 in. (1219 mm) long
SL11 Chimney Stabilizer
SL1130 Chimney Offset/Return - 30 deg
FS538 Ceiling Firestop - Straight
FS540 Ceiling Firestop - 30 deg
AS10 SL1100 Straight Attic Insulation Shield, 24 in. (610 mm)
JB577 Chimney Joint Band
CB576 Chimney Bracket
RF570 Roof Flashing - Flat to 6/12 Pitch
RF571 Roof Flashing - 6/12 to 12/12 Pitch
TR11 Round Termination Cap
TR11T Round Telescoping Termination Cap
TCT1175 Terra Cotta Termination Cap
ST1175 Square Termination Cap
DTO134 Short Octagon Decorative Cap
DTO146 Tall Octagon Decorative Cap
DTS134 Short Square Decorative Cap
DTS146 Tall Square Decorative Cap
CT56 Chase Top
LDS33 Decorative Shroud - 3 ft x 3 ft (.91 m x .91 m)
LDS46 Decorative Shroud - 4 ft x 6 ft (1.22 m x 1.83 m)
LDS-BV Decorative Shroud - 26 in. x 26 in. (660 mm x 660 mm)
Field Constructed Shrouds (See “Woodburning
Termination Cap”)
CT-11A Adapter-May be used with the following Copper Caps
CT-Series
DT-Series
