62

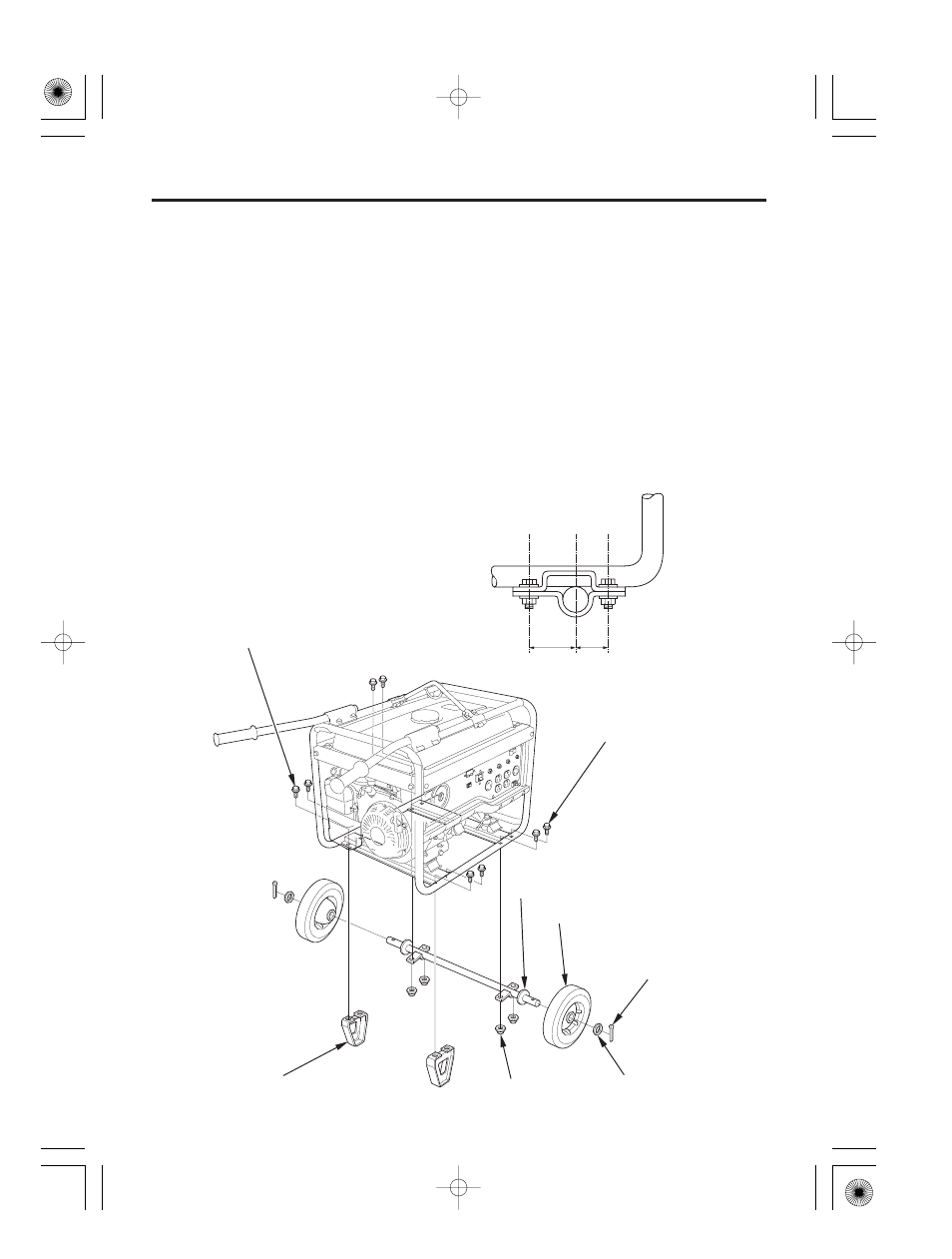

Wheel Kit Installation
TORQUE:
AXLE
WHEEL (2)
8 mm FLANGE NUT (4)
8 16 mm FLANGE BOLT (4)
GENERATOR
SIDE
8 16 mm FLANGE BOLT (4)
4.0 30 mm COTTER PIN (2)
STAND (2)
20 mm WASHER (2)
LONGER
Install the two wheels on the axle shaft using the washers and cotter
pins.
Install the axle assembly on the generator using four 8 16 mm
flange bolts and 8 mm flange nuts.
Install the two stands on the under frame using four 8 16 mm
flange bolts.
17 22 lbf·ft (24 29 N·m , 2.4 3.0 kgf·m)
1.
2.
3.
