The information provided in this literature is for planning
purposes only. Please consult the installation manual for
actual installation. Photo on cover shown with St. Cloud
shelf, custom marble and DM100B door.
A V A I L A B L E F R O M
HTL-1021U-0308
Options
DM Doors
DM100/B/S*, DM8042/B/S,
DM6036/B/S
*DM100 doors contain tinted glass
Fireside Gas Logs
• Choice of three premium sizes with true brick-to-brick opening widths of
50" for I100, 42" for I80 and 36" for I60
• Clean design allows finishing materials to be applied right up to the edge of
the firebox opening for the appearance of a masonry fireplace
• Can be installed flush to the floor or on a raised hearth
• Refractory lining color and texture deliver the most convincing masonry look
available in a factory-built fireplace today; refractory available in herringbone
and a new traditional brick refractory pattern finished in multiple earth-toned
color shades
• Factory-installed outside air kits utilize outside air for combustion for
maximum drafting performance
• A hearth extension is required
• SL1100 Series venting
• Tested and listed to
UL safety standards
• Heatilator 20-year Buyer Protection Plan
Icon Series,
a Fireplace of Epic Proportions
Options

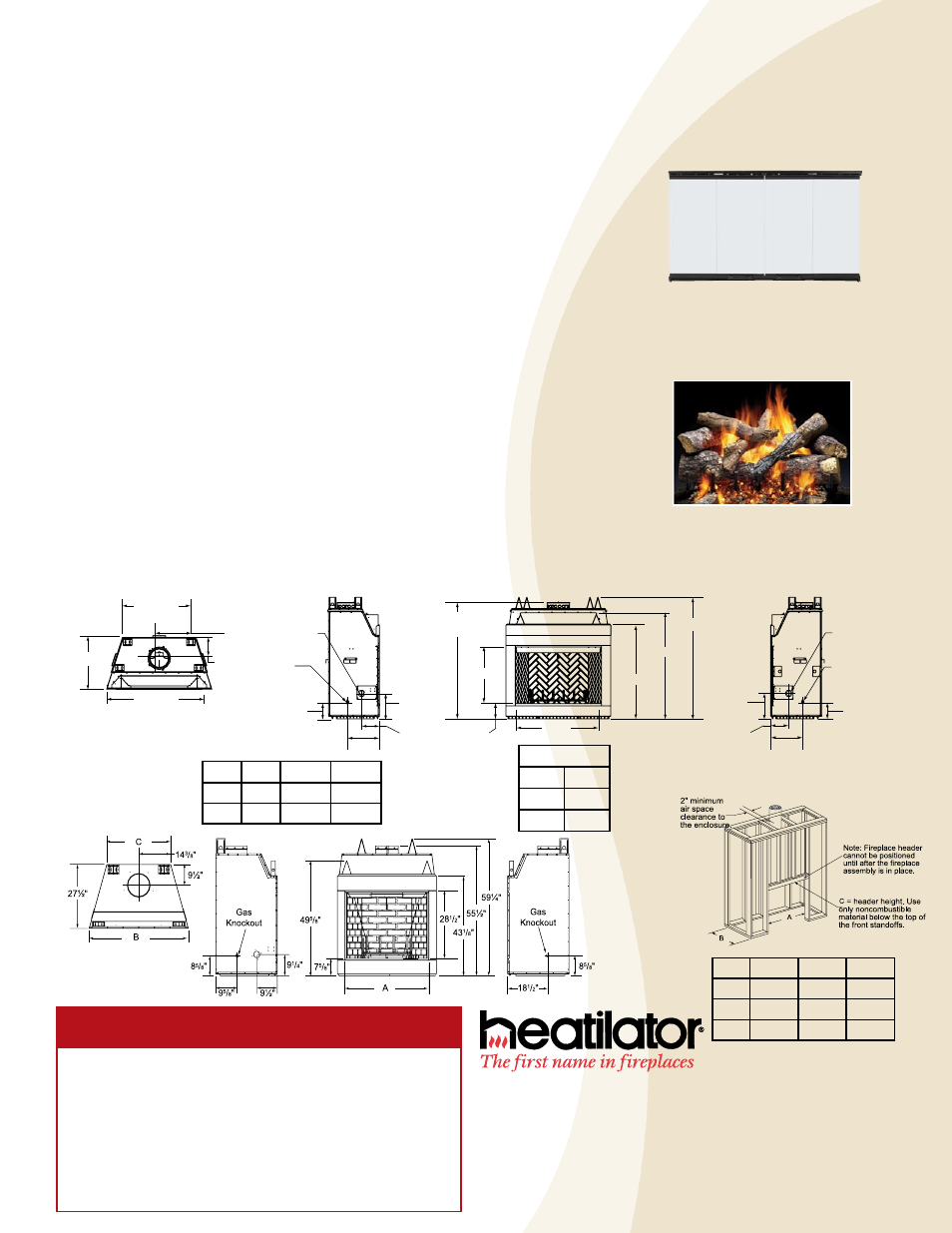

Product Dimensions
I80 and I60
Firebox Depth
I100
25 ½"
I80 23 ½"
I60 23 ½"
A B C
I80 42" 50 ½" 34 ½"
I60 36" 44 ½" 28 ⅝"
I100
60-5/8 in.
20-3/4 in.
11-5/8 in. 29-1/2 in.
14-3/4 in.
Gas
Knockout
9-7/8 in.
19 in.
10-1/2 in.
Outside
Air
14-3/4 in.
Gas
Knockout
9-7/8 in.
19 in.
10-1/2 in.
Outside
Air
50 in.
33 in.
68-1/8 in.
(effective height)
8-3/4 in.
70-1/2 in.
60-1/4 in.
54-3/8 in.
41-5/8 in.
Framing Dimensions
A B C
I100 61 ⅝" 30 ⅜" 61"
I80 51 ½" 28 ½" 49 ¾"
I60 45 ½" 28" 49 ¾"
