Extend the drain hose from the rear side

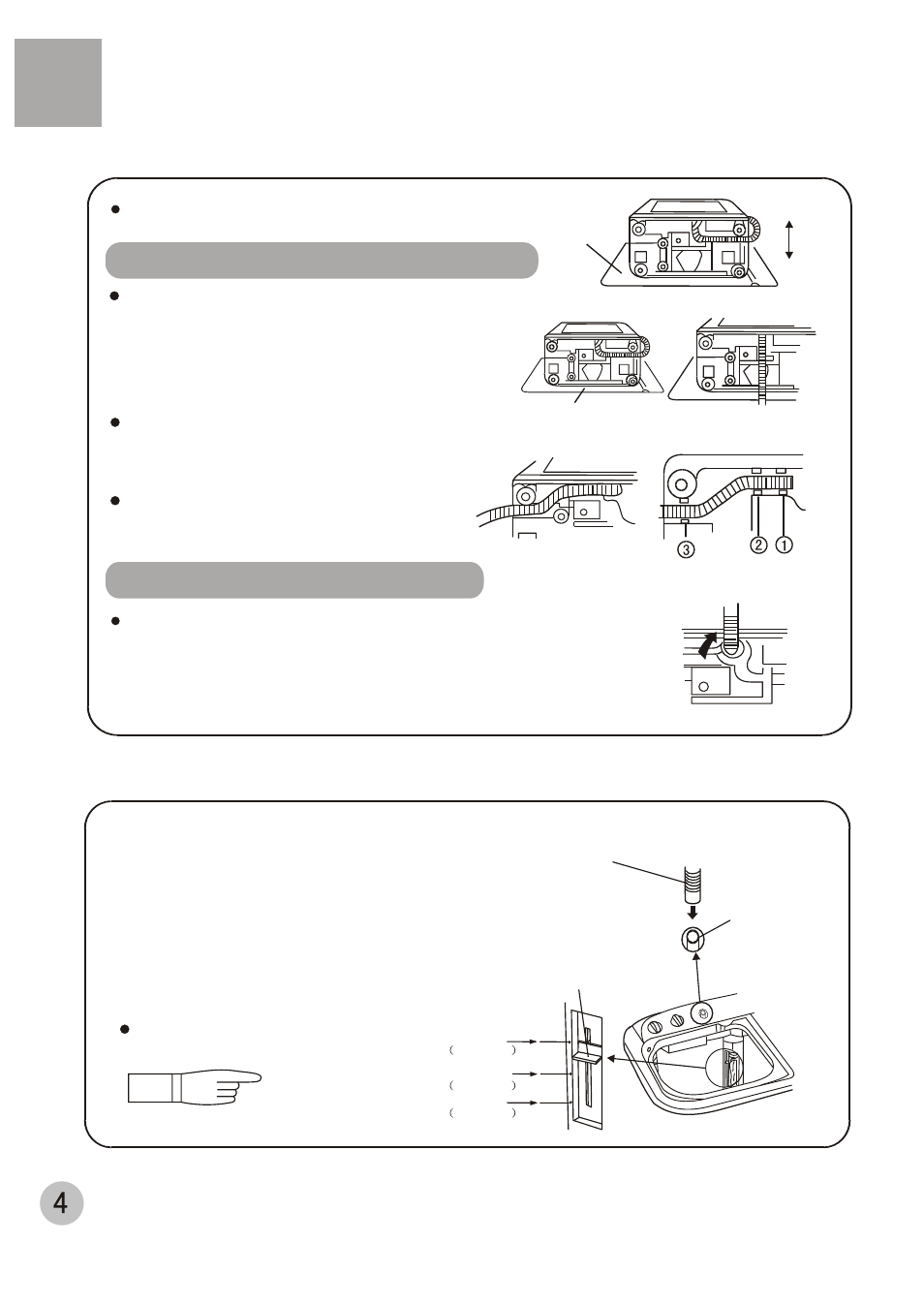

How to change the direction of the drain hoses
Figure 1 indicates the ex factory installation
position of the drain hose.
Put soft items on the ground. Lean the machine
down gently with the front surface facing the
ground. Take off the drain hose from the cabinet.
Take the hose out of the fixing groove.
(See to Figure 2).
Embed the drain hose into the groove along the side
of the spin tub in the order of (1)~(3), heading for the
side of the spin tub. (See to Figure 3).
Embed the drain hose into the groove with
hands. Take care not to damage the drain
hose in fastening the fixing clamp.
Install the water inlet hose; Select the water level
Figure 1
Figure 2
Figure 3
Figure 4
Embed into the
groove in turn
Page8
Back
Select water level according to the
quantity of the laundries.
Set the water level adjusting lever
to needed line.
Before Using Before Using
Water inlet hose
Water inlet
Maximum Max
about 43L
about 36L
about 30L
Minimum
Min
Medium
Med
Water level
indicator
Extend the drain hose from the side of spin tub
Soft item
Soft item
Extend to the
spin tub side
Take out the drain hose from the fixing groove. Extend it from
the rear side as per the direction of the arrow. (When the drain
hose is extended from the rear side, it can be hung on the
point for drain hose at the two sides of the cabinet.)
(See to Figure 4).
Front
Insert the water inlet hose into the water-filling
entrance on the control pane directly.(pull it
out to dismantle it)
Use the new water inlet hose provided with the
machine to connect to the water faucet.Old hose
sets should not be reused.
