Installing the WinTV USB
N ote: DO NOT PLUG THE WinTV-USB into your PC until
your PC has fully booted..
To install WinTV USB under Windows 98 or 2000, you will follow these steps:
✓ Plug the WinTV USB into your PC or laptop’s USB port (after booting into
Windows)
✓ Install the drivers from the WinTV USB Installation CD-ROM
✓ After the WinTV USB driver is installed, you will then install the WinTV
application software from the WinTV Installation CD-ROM
Diagram

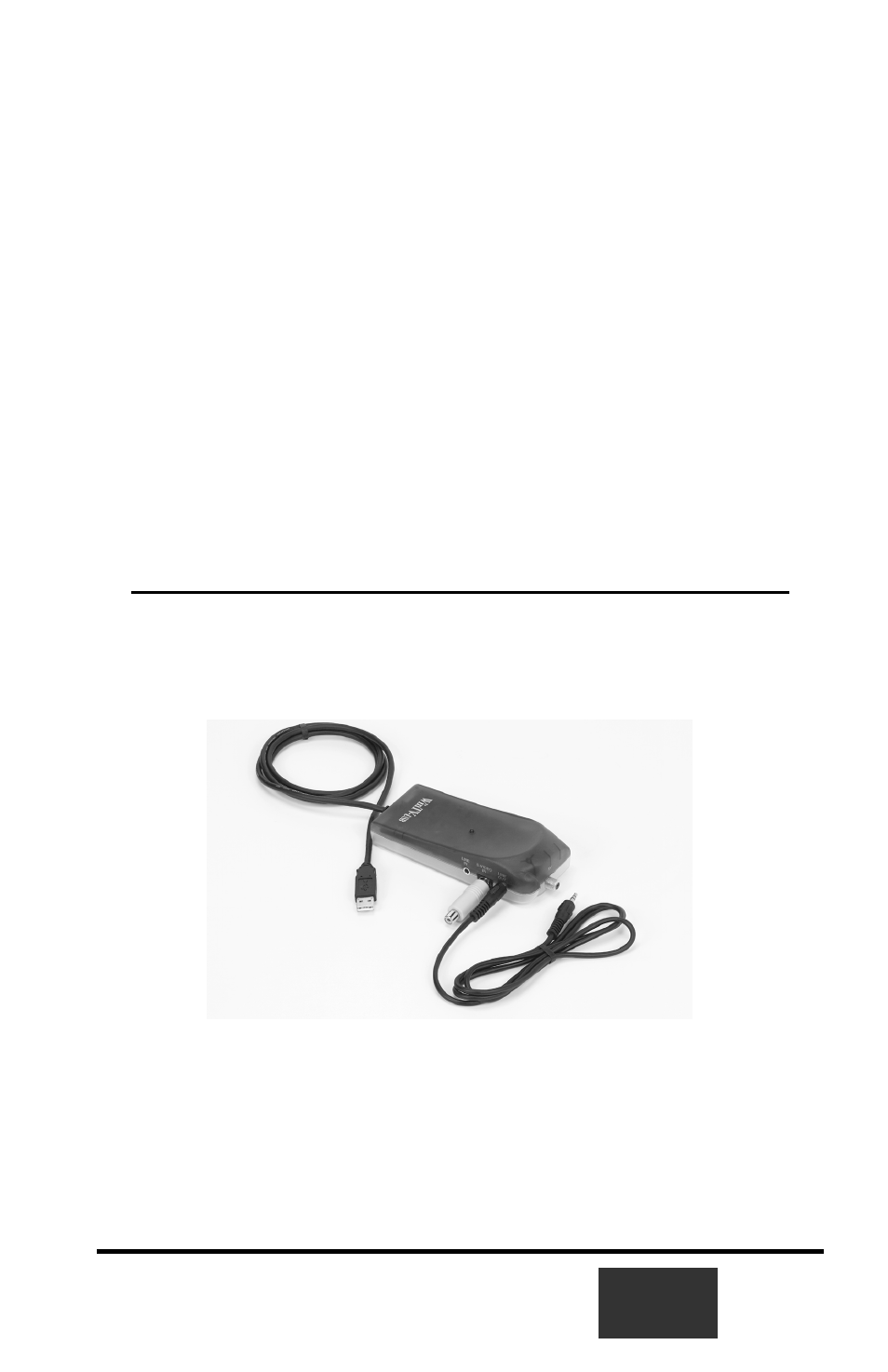

The following diagram shows the main functions and connectors of the WinTV-
USB. Since there are several different models with different features and func-
tions, your board may not have all of the components installed.
Board connections
FM: FM radio antenna connection (on some models)
TV: TV antenna or cable TV connection
Audio LineOut: Audio output 1/8” minijack (connects to sound card LineIn jack)
Video In: S-video input with composite adapter.
Audio Line In: Audio input 1/8” minijack
1-1
