7 • Completing Your Installation With or Without a Bowl Light Fixture (Continued)
11
Male Dummy
Terminal
Female Dummy
Terminal
Step 7
Cap
Plug Button
Threaded Rod
Lower Switch
Housing
Steps 3 – 5

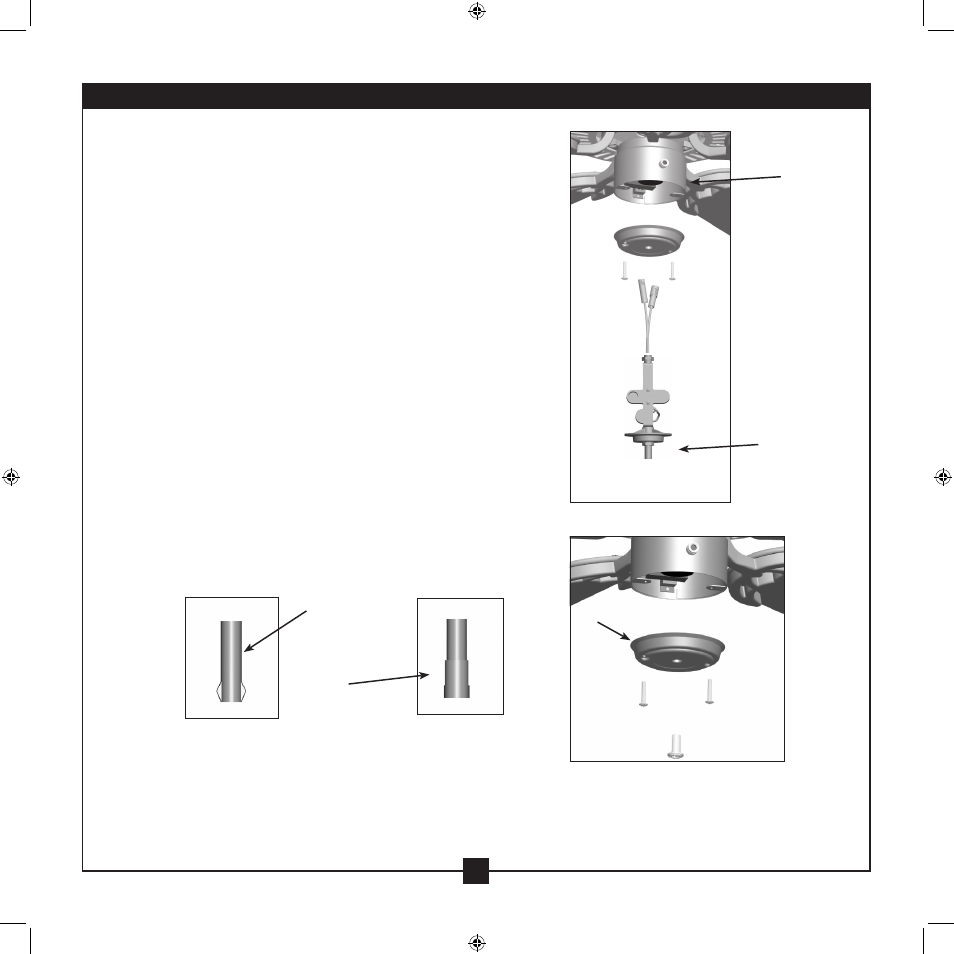

Uninstalling the Light Fixture
1. To uninstall the light fixture, first disconnect the plug connectors
between the black wire and the black/white wire.
2. Disconnect the plug connectors between the two white wires.
3. Uninstall the nut and washer from the end of the light fixture
inside the lower switch housing.
4. Unscrew the threaded rod of the light fixture from the lower
switch housing.
5. Remove the light fixture from the lower switch housing pulling
disconnected wires through the hole in the center of the lower
switch housing.
Note: When removing the wires, pull the thin plug connector
(male) through first, and then pull the other plug connector
(female) through the hole.
6. Install the dummy terminals (included in the sack parts) on the
two disconnected wires in the lower switch housing.
7. Install the switch housing cap and plug button to the lower
switch housing.
