25

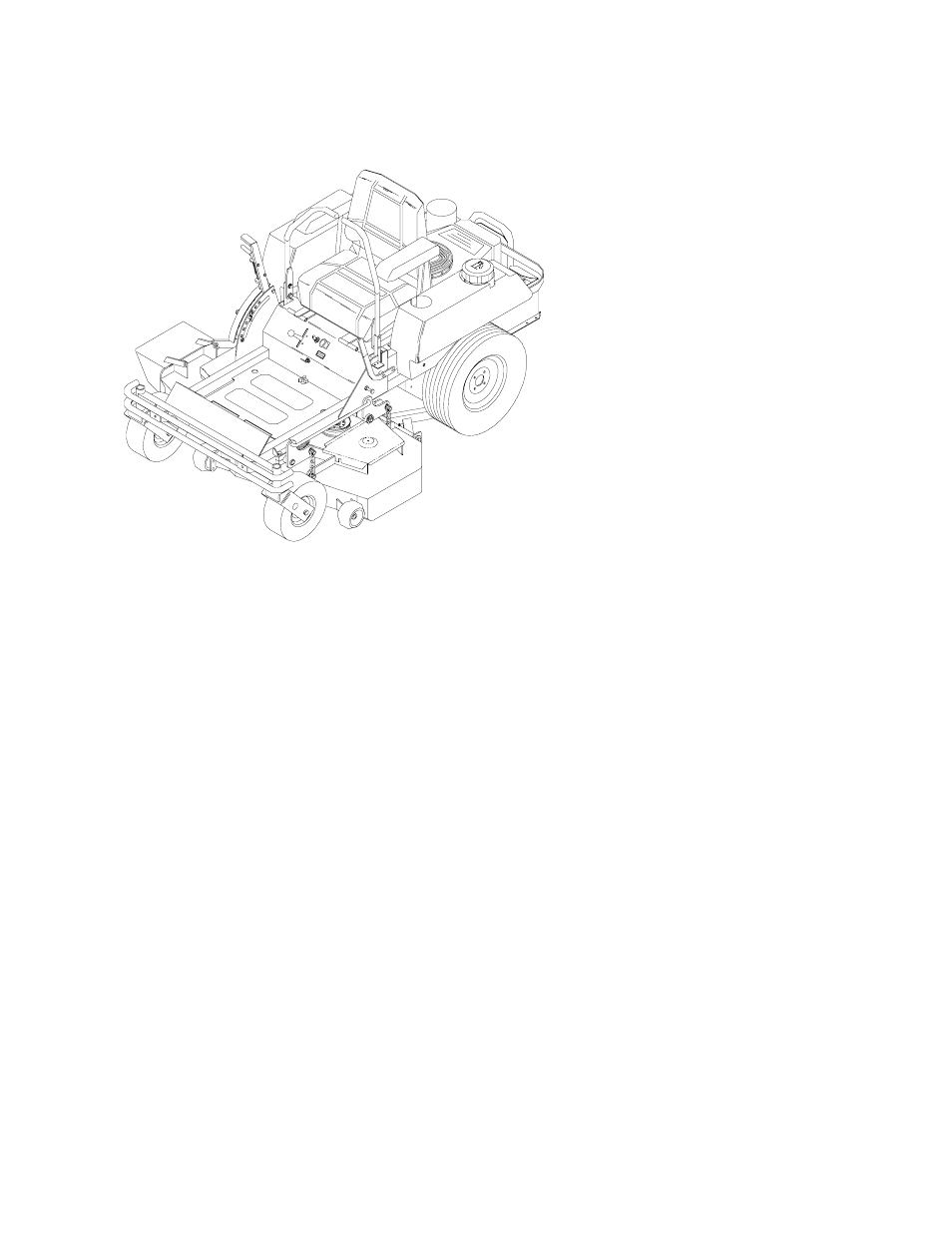

Mid Mount Zero Turn Riders 42” & 48”
968999157 / ZTHKH4818A
968999158 / ZTHKH4820A
968999167 / ZTHKW4218A
968999168 / ZTHKW4818A
968999169 / ZTHKW4821A
MODEL / I.D. :
Setup Instructions for:
ADJUSTMENTS
PARK BRAKE:
1. Stop engine and remove key. While the park brake lever”A” is in the on position. The distance
between the swivel”C” and the bolt head”B” should be 3/8” to 1/2” approximately.(See Fig. 2)
2. If adjustment is needed, using two 1/2” wrenches, loosen the nut”F” above the turnbuckle”G”
while holding the turnbuckle”G” from turning. After the nut”F” is loose and out of the way. While
holding the bolt head”B” from turning. Turn the turnbuckle”G” the proper direction to lengthen the
distance or to shorten the distance. After the proper distance is obtained retighten the nut”F”
against the turnbuckle”G”.
3. While the park brake lever”A” is still in the on position, measure the length of the spring”D”.
Should measure 2”.(See Fig. 2)
4. If adjustment is needed loosen or tighten the nut”E” below the spring”D”. While holding the
turnbuckle”G” to keep the assembly from turning.
